Side Retainer

NOTE: After adjusting the drive pinion backlash and tooth contact, remove and install the oil seal and O-ring.

Remove the O-ring.

Fig 1: Removing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.

Fig 2: Removing Oil Seal
Courtesy of SUBARU OF AMERICA, INC.

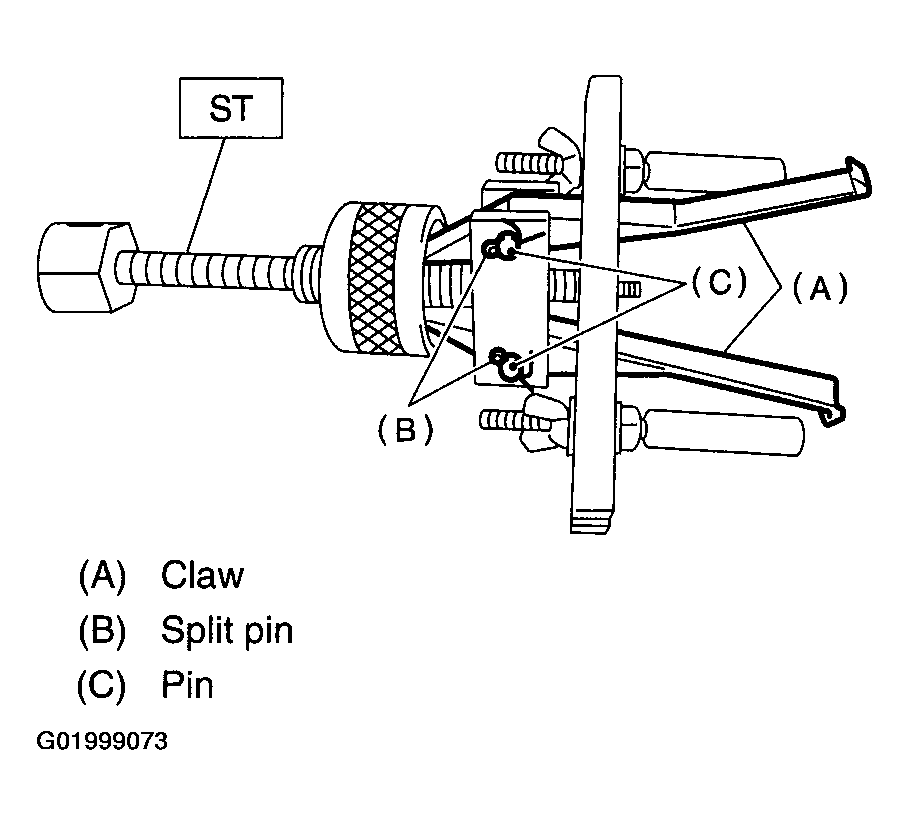

Take out either split pin and remove claw.
ST 398527700 PULLER ASSY

Fig 3: Removing Split Pin Or Claw
Courtesy of SUBARU OF AMERICA, INC.
Set ST to side retainer by attaching two claws to outer race.
ST 398527700 PULLER ASSY

Fig 4: Attaching Two Claws To Outer Race To Set ST To Side Retainer
Courtesy of SUBARU OF AMERICA, INC.
Return removed claw to the original position, and install pin and split pin.
Hold the shaft of ST to avoid it coming off from side retainer, and then remove the bearing outer race.
ST 398527700 PULLER ASSY

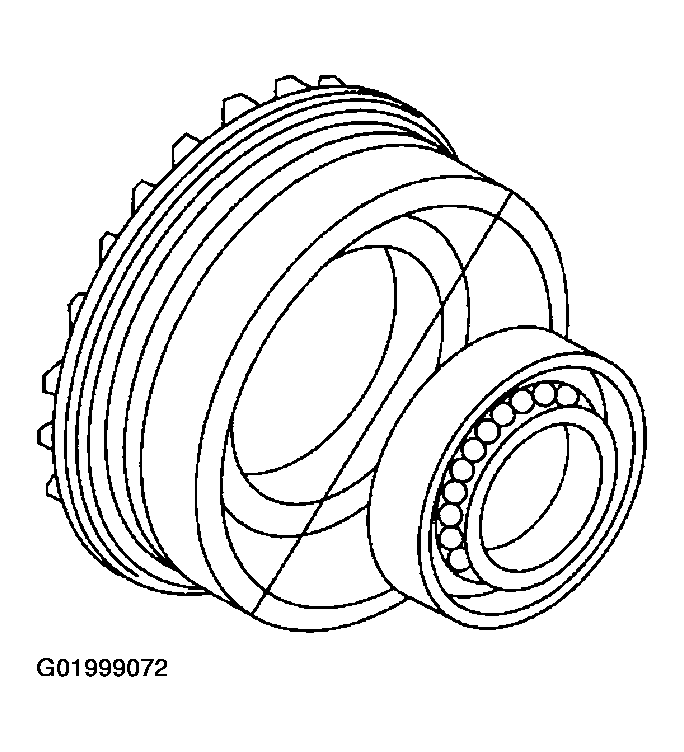

NOTE: Replace bearing inner and outer races as a single unit.

Fig 5: Removing Bearing Outer Race
Courtesy of SUBARU OF AMERICA, INC.
