Extension Case: Installation

  1. Attach the selected thrust needle bearing to the end surface of reduction drive gear with petrolatum.
    NOTE: Install thrust needle bearing in the correct direction.
  2. Install new gasket.
  3. Install the extension case to the transmission case.
  4. Tighten bolts to secure the case.
    1. Tightening torque:  25 N.m (2.5 kgf-m, 18.1 ft-lb)

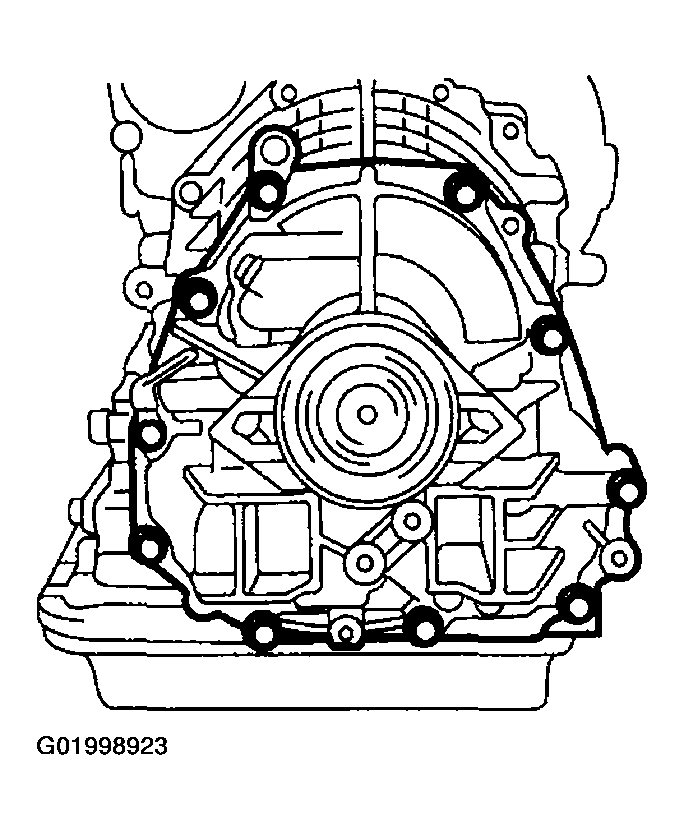

    Fig 1: Tightening Bolts To Secure Case
    G01998923Courtesy of SUBARU OF AMERICA, INC.
  5. Install the rear wheel speed sensor.
    1. Tightening torque:  7 N.m (0.7 kgf-m, 5.1 ft-lb)

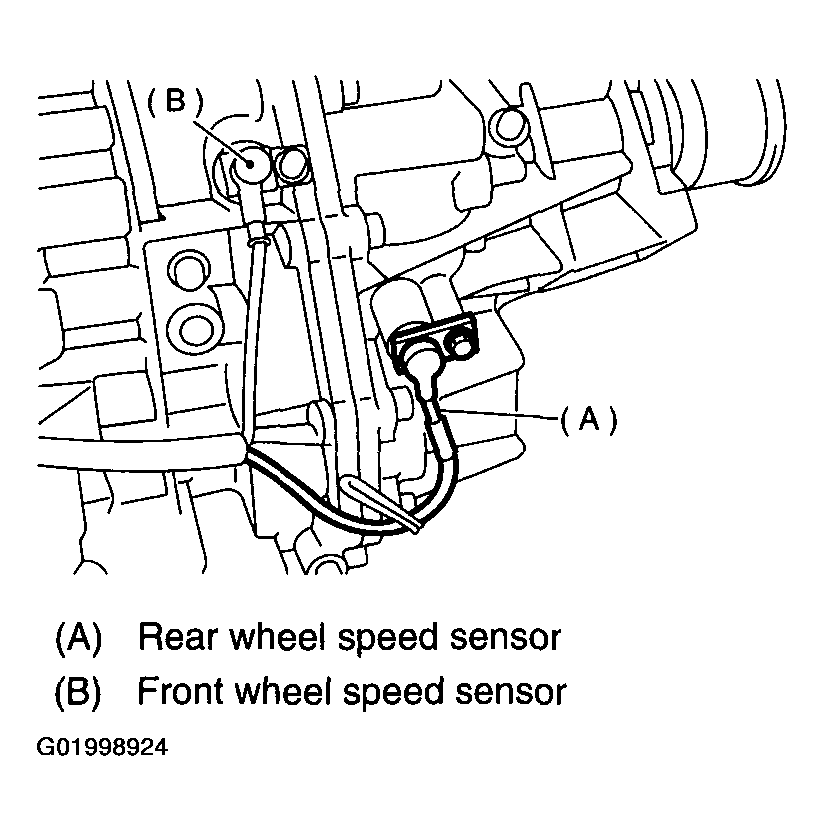

    Fig 2: Installing Rear Wheel Speed Sensor (MPT Model)
    G01998924Courtesy of SUBARU OF AMERICA, INC.

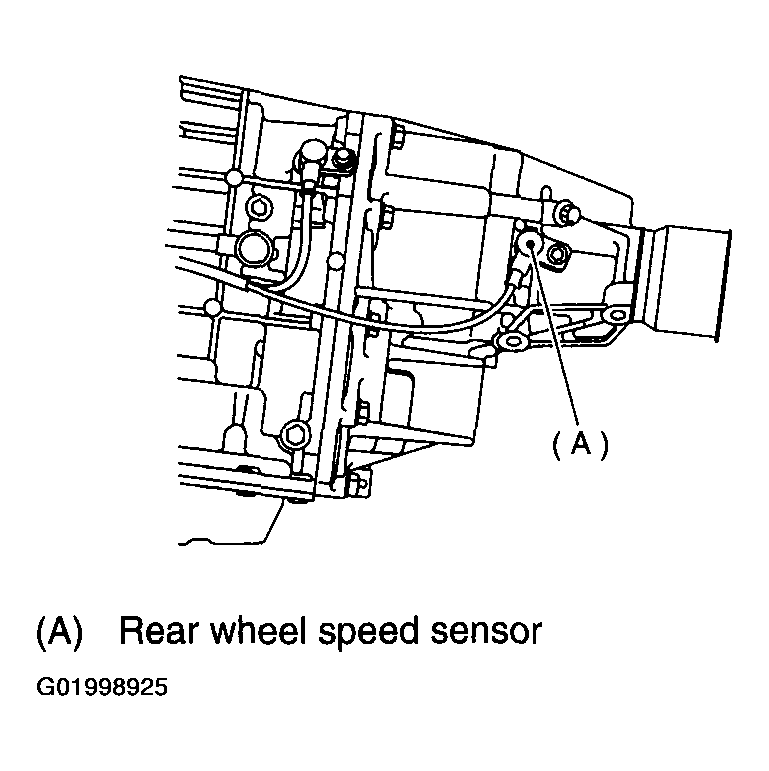

    Fig 3: Installing Rear Wheel Speed Sensor (VTD Model)
    G01998925Courtesy of SUBARU OF AMERICA, INC.
  6. Install the transmission assembly. See INSTALLATION , Automatic Transmission Assembly.
