Extension Case: Assembly

MPT MODEL
1. Using the ST and a press, press in a new oil seal.
  ST 498057300 INSTALLER
2. Press in the dust cover.
3. Install the transfer clutch pipe to extension case without bending pipe.

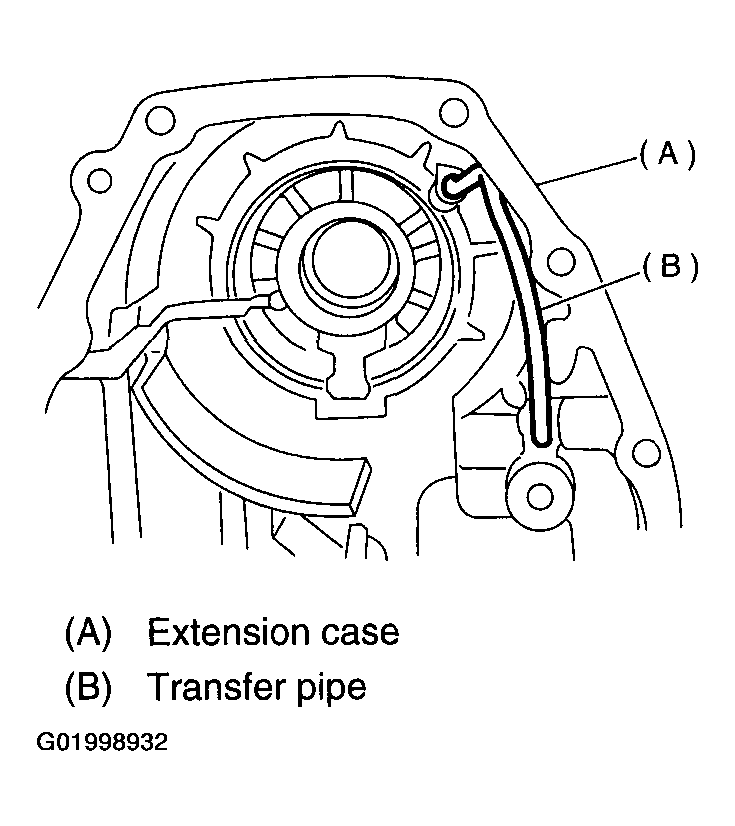

  Fig 1: Installing Transfer Clutch Pipe To Extension Case Without Bending Pipe
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the transfer clutch assembly to the case.
  NOTE:
  - Be careful not to damage the seal rings.
  - Insert the clutch assembly fully into position until the bearing shoulder bottoms.

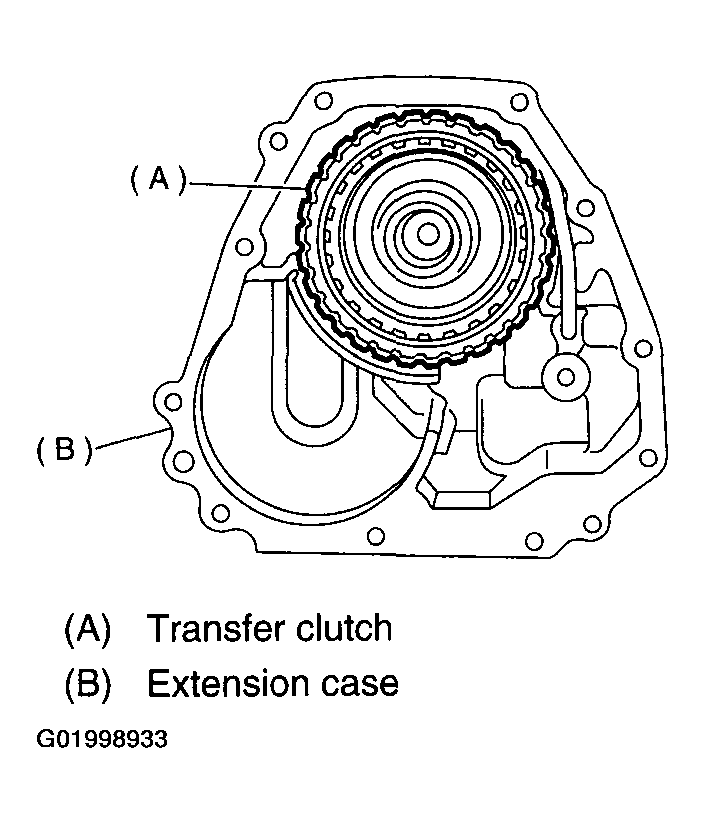

  Fig 2: Installing Transfer Clutch Assembly To Case
  Courtesy of SUBARU OF AMERICA, INC.
VTD MODEL
1. Using the ST and a press, press in a new oil seal.
  ST 498057300 INSTALLER
2. Press in the dust cover.
3. Install the transfer clutch pipe to extension case without bending pipe.

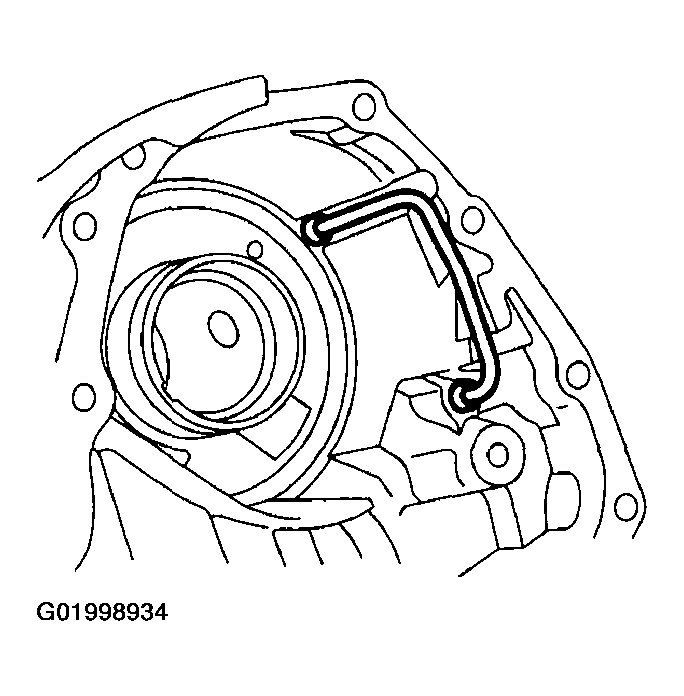

  Fig 3: Installing Transfer Clutch Pipe To Extension Case Without Bending Pipe
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the test plug.
  1. Tightening torque: 13 N.m (1.3 kgf-m, 9.4 ft-lb)

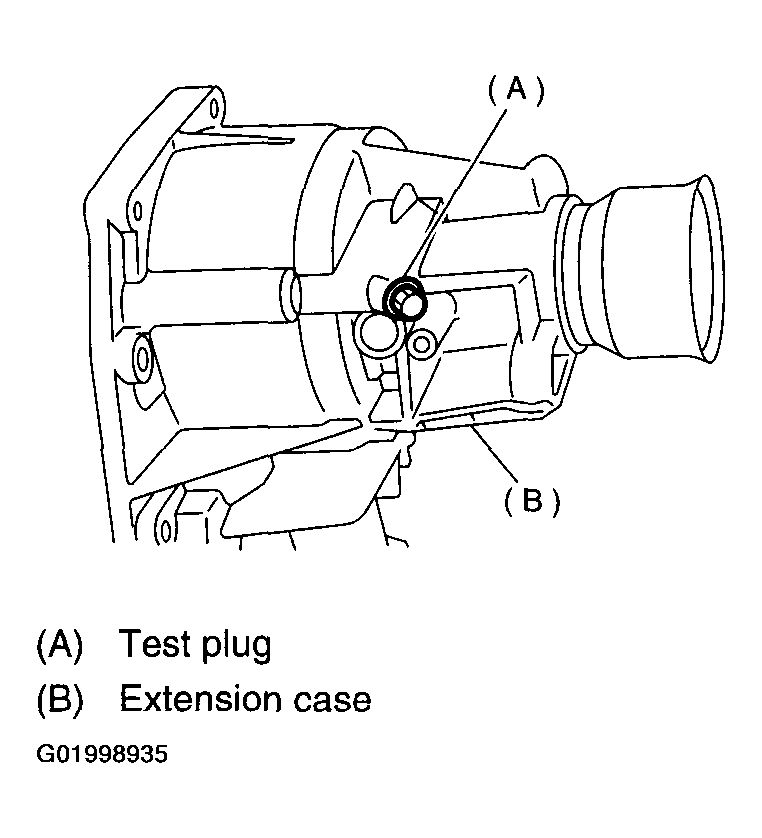

  Fig 4: Installing Test Plug
  Courtesy of SUBARU OF AMERICA, INC.
5. Insert multi-plate clutch, drive plate, driven plate and spring retainer.

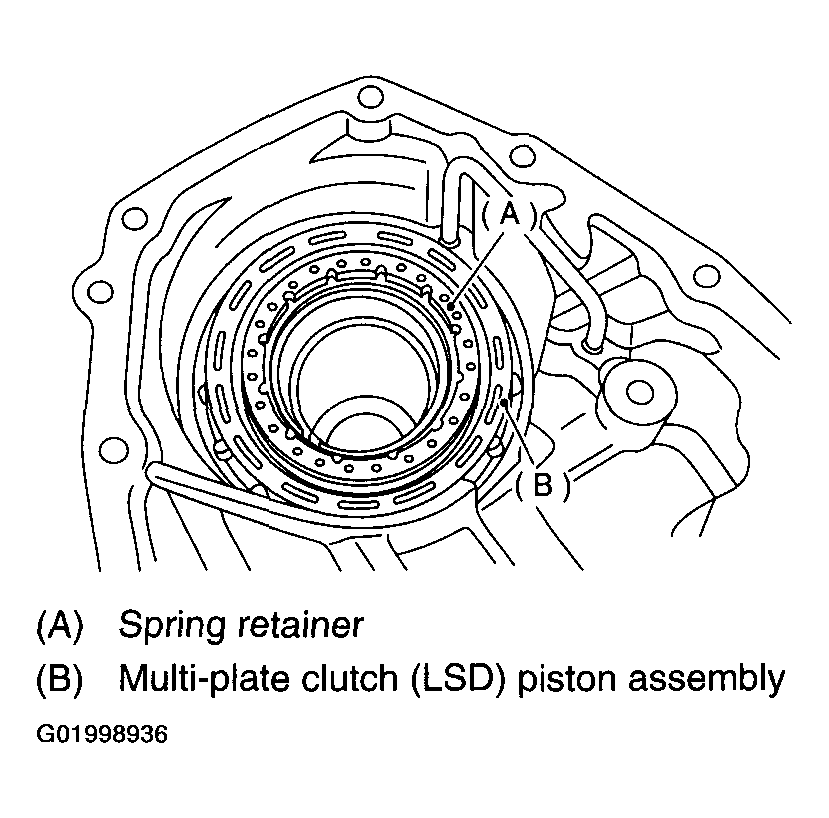

  Fig 5: Inserting Multi-Plate Clutch, Drive Plate, Driven Plate & Spring Retainer
  Courtesy of SUBARU OF AMERICA, INC.
6. Using ST1, ST2 and ST3, install snap ring.
  ST1 398673600 COMPRESSOR

  ST2 498627100 SEAT

  ST3 398663600 PLIERS

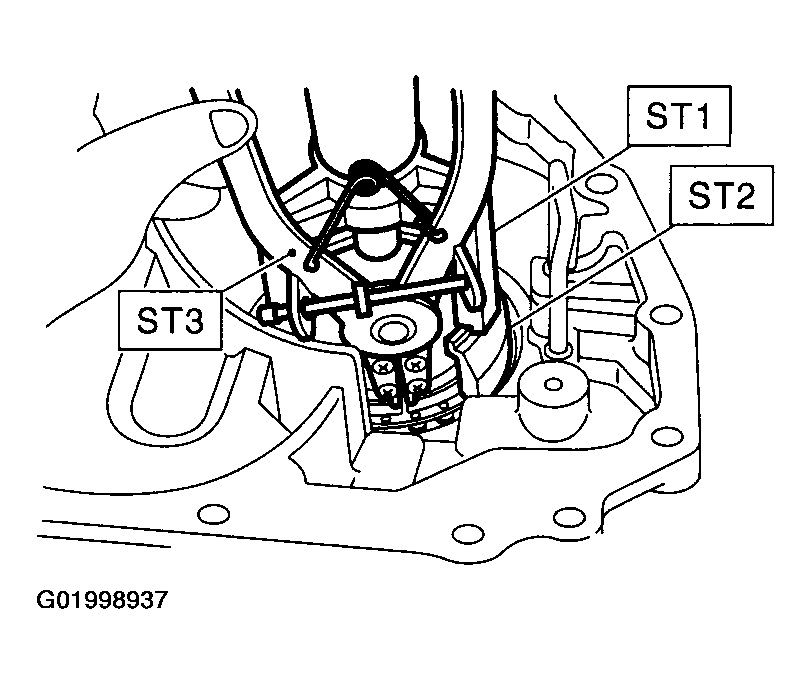

  Fig 6: Installing Snap Ring Using ST1, ST2 & ST3
  Courtesy of SUBARU OF AMERICA, INC.
