Control Valve Body: Removal

Lift up the vehicle.
Clean the transmission exterior.
Drain the ATF completely.
NOTE: Tighten the ATF drain plug after draining the ATF.
1. Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

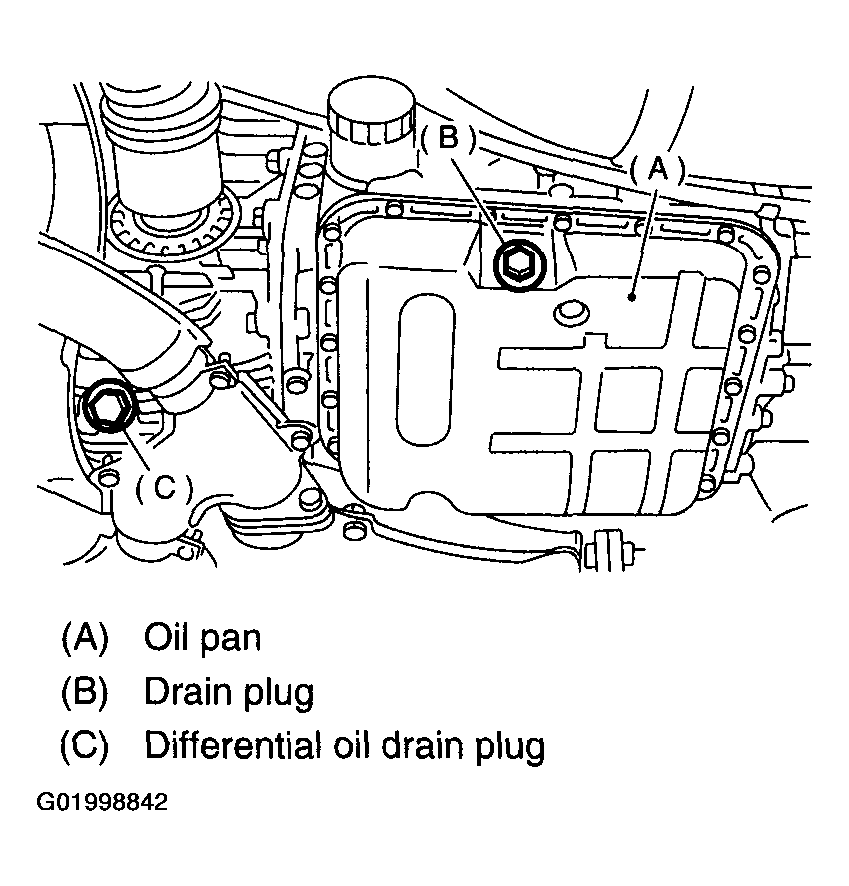

Fig 1: Draining ATF Completely
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil pan.
NOTE:
- Remove and clean the magnet.
- Remove the old gasket on the oil pan and transmission case completely.
Disconnect solenoid connectors and remove the ATF temperature sensor. Remove the connectors from clip and disconnect the connectors.

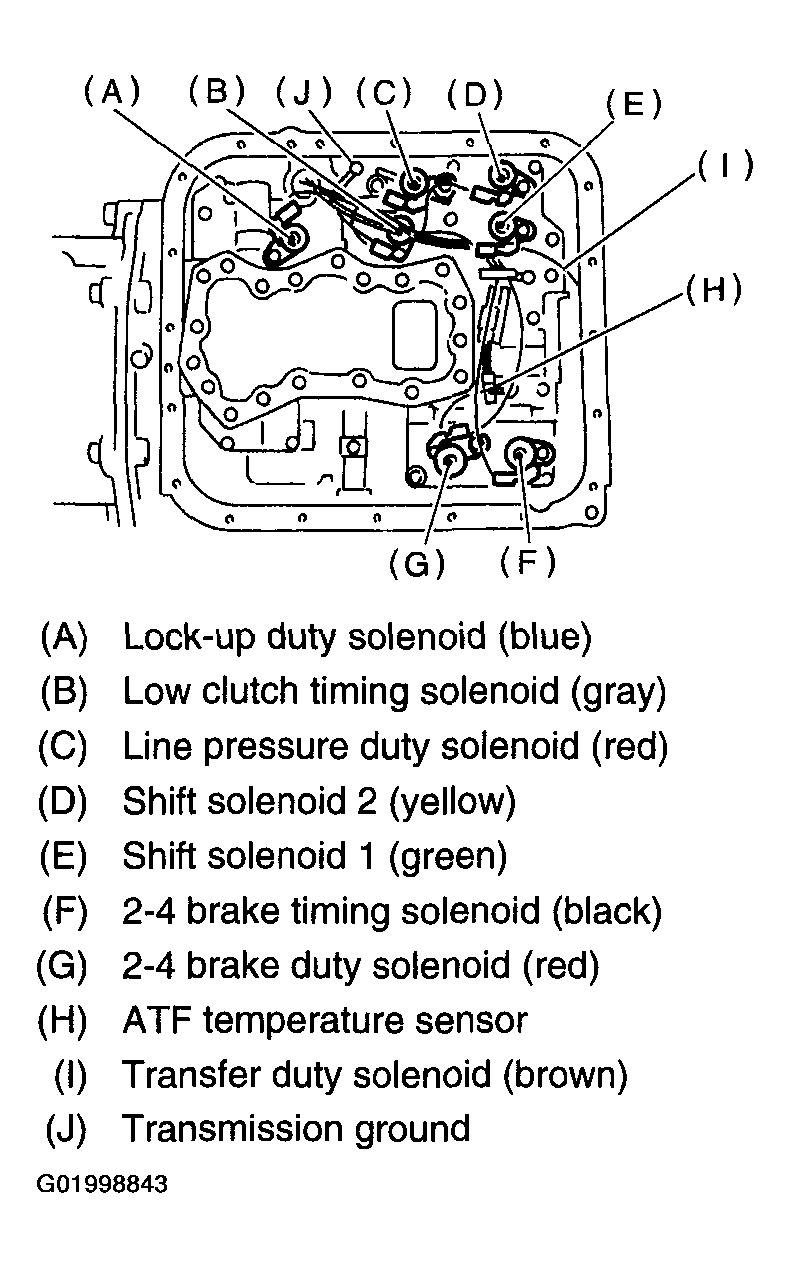

Fig 2: Disconnecting Solenoid Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the control valve. When removing the control valve body, be careful not to interfere with transfer duty solenoid wiring.

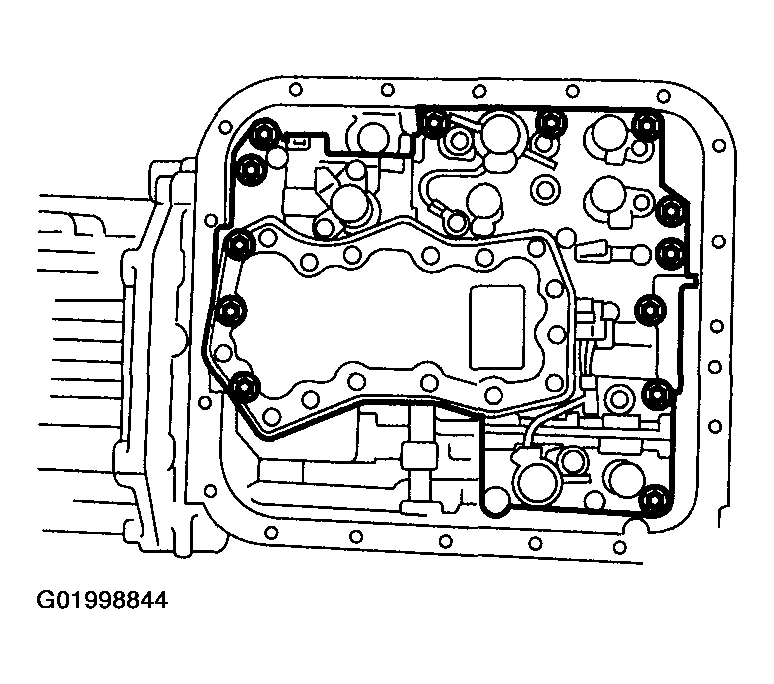

Fig 3: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
