Automatic Transmission - Mechanism & Function
>>
Hydraulic Control Valve
>>
Function
Hydraulic Control Valve: Function

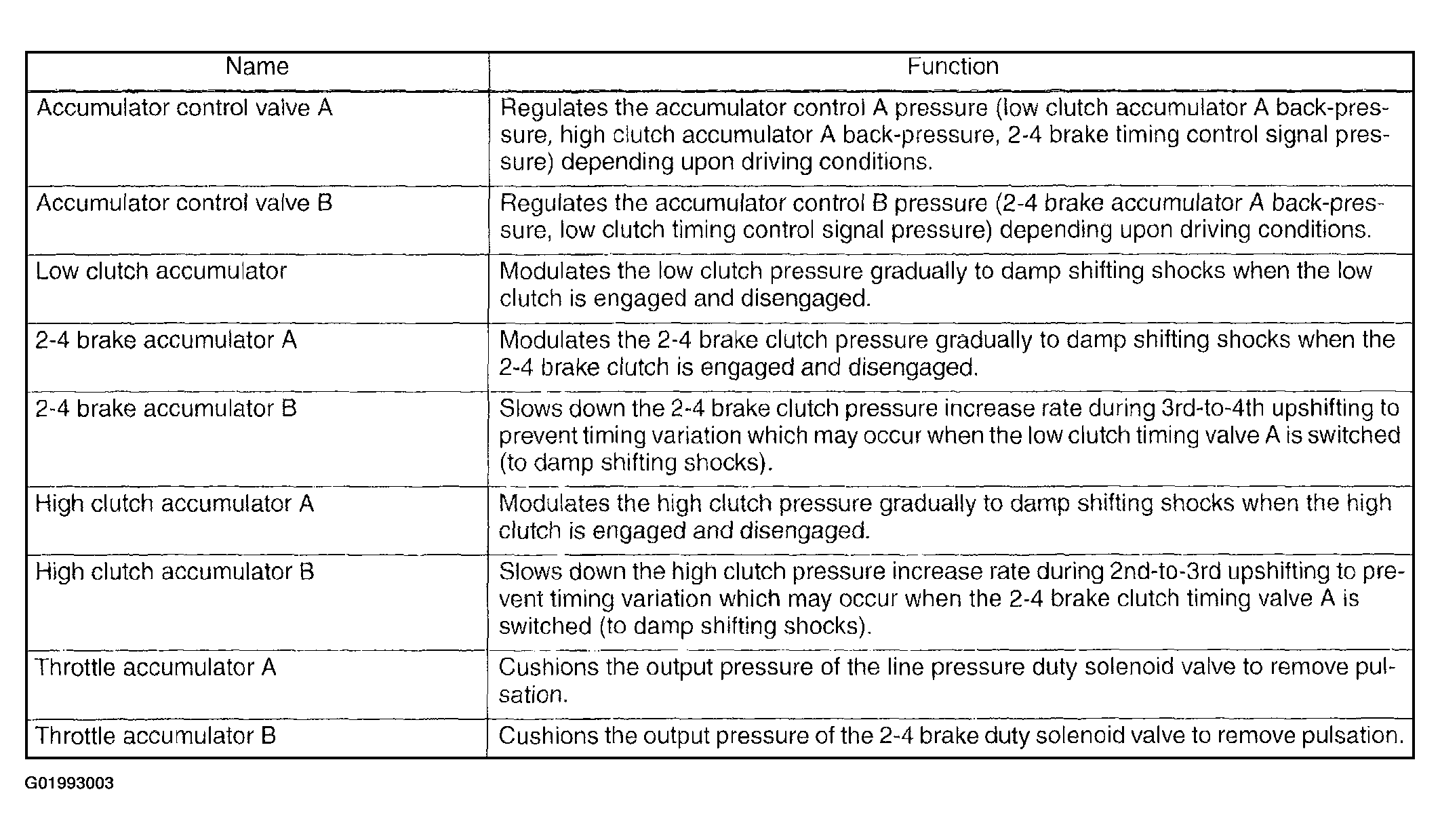

Fig 1: Hydraulic Control Valve Function (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

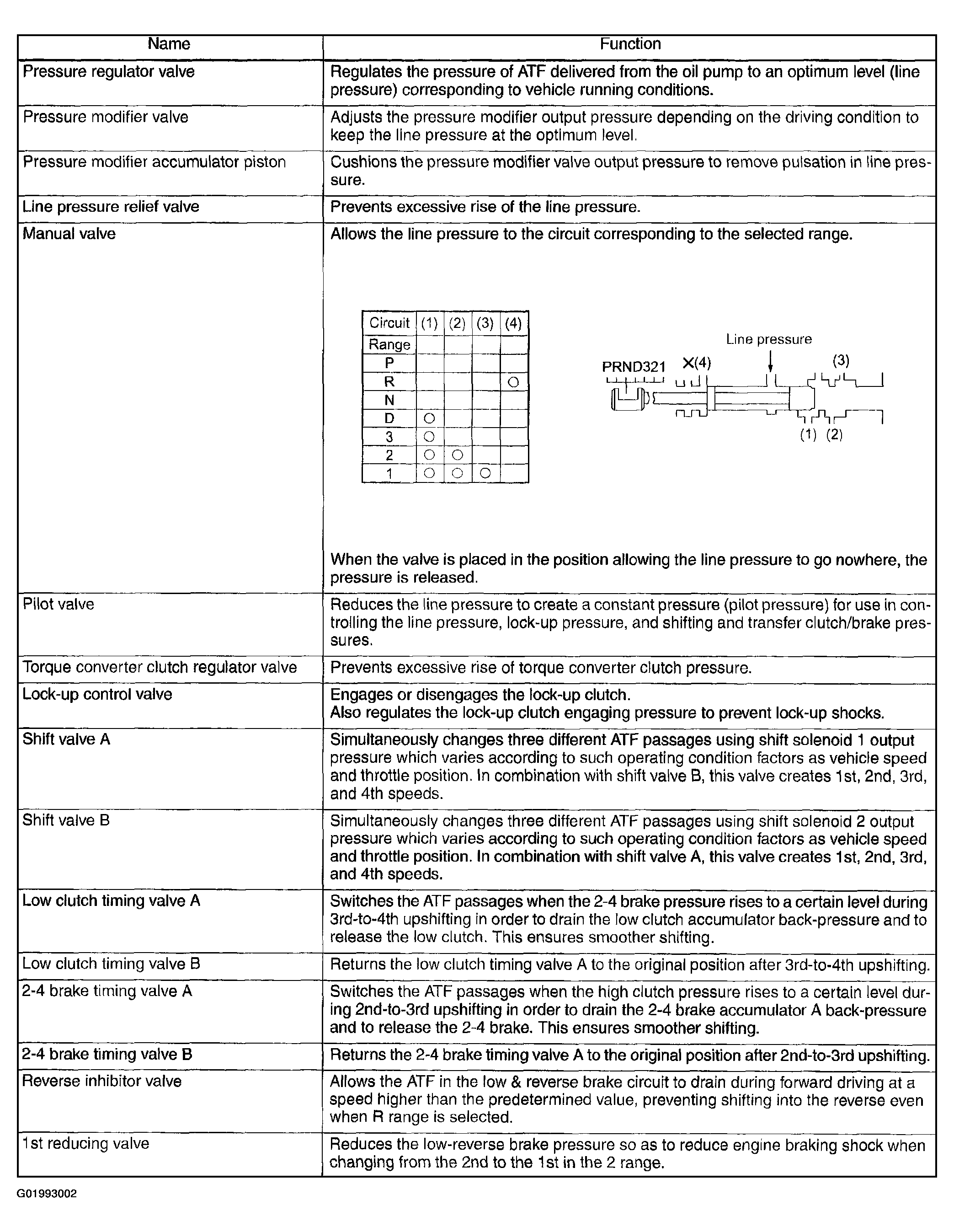

Fig 2: Hydraulic Control Valve Function (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
