Turbo Model

  1. Install the reservoir tank to the bracket.
  2. Connect the pressure hose and suction hose to the oil pump.

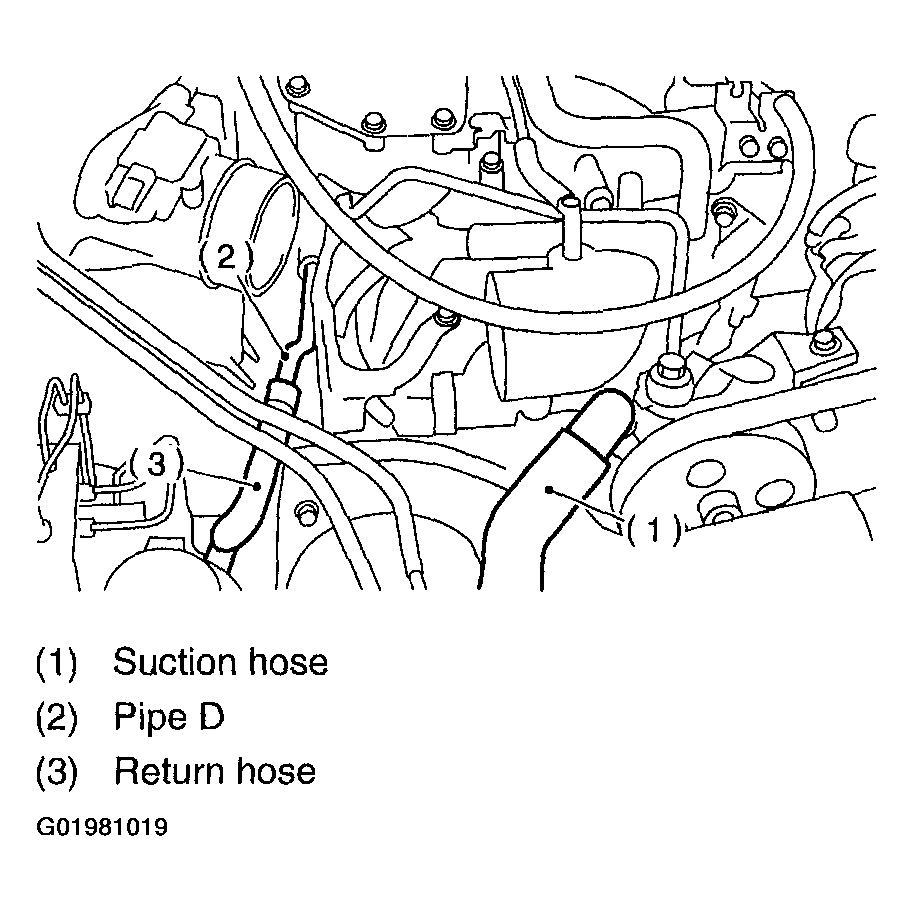

    Fig 1: Connecting Pressure Hose & Suction Hose To Oil Pump
    G01981019Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the specified power steering fluid. See POWER STEERING FLUID  .
    CAUTION: Never start the engine before feeding the fluid; otherwise vane pump might seize up.
