Special Tools

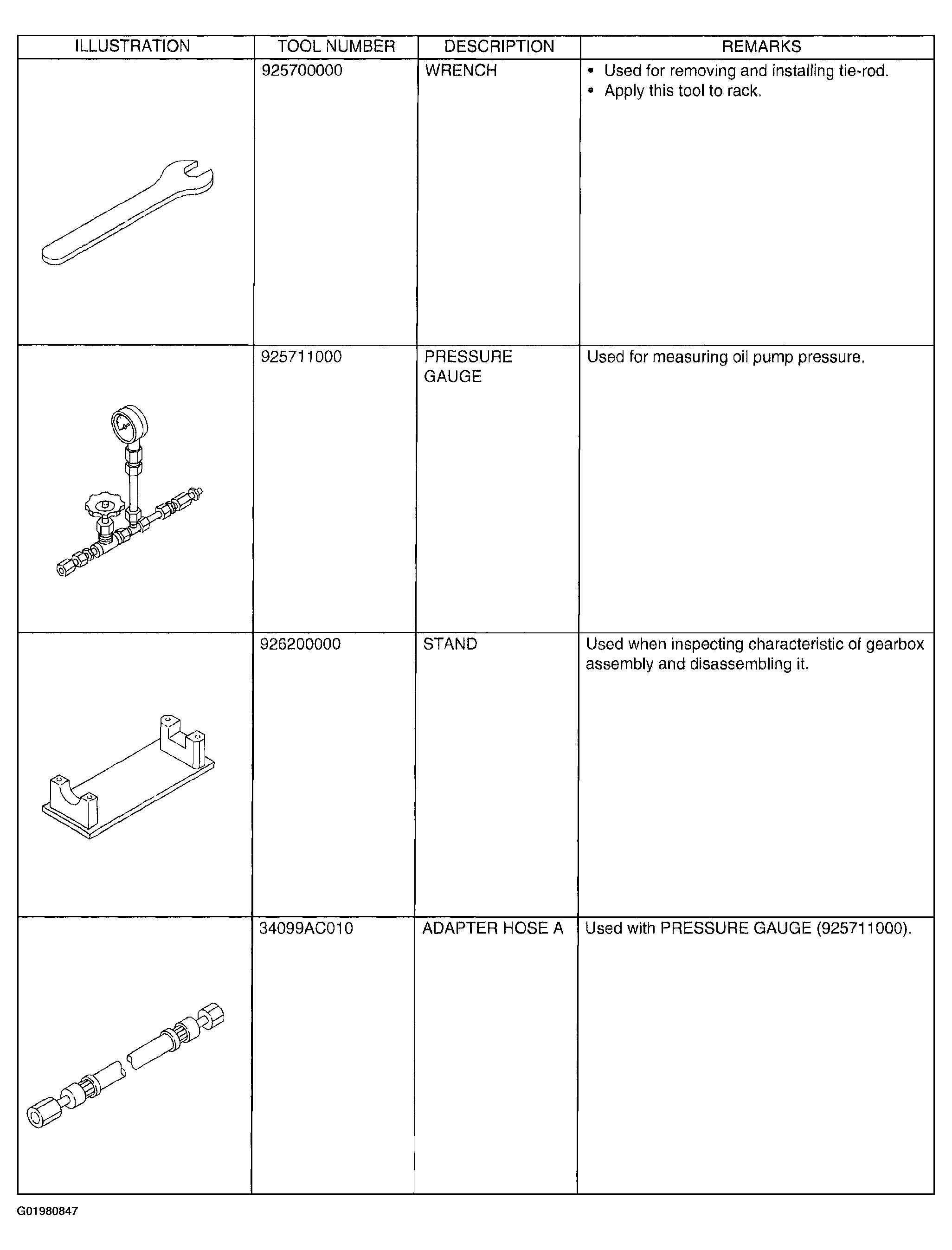

Fig 1: Identifying Special Tools (1 Of 7)

G01980847

Courtesy of SUBARU OF AMERICA, INC.

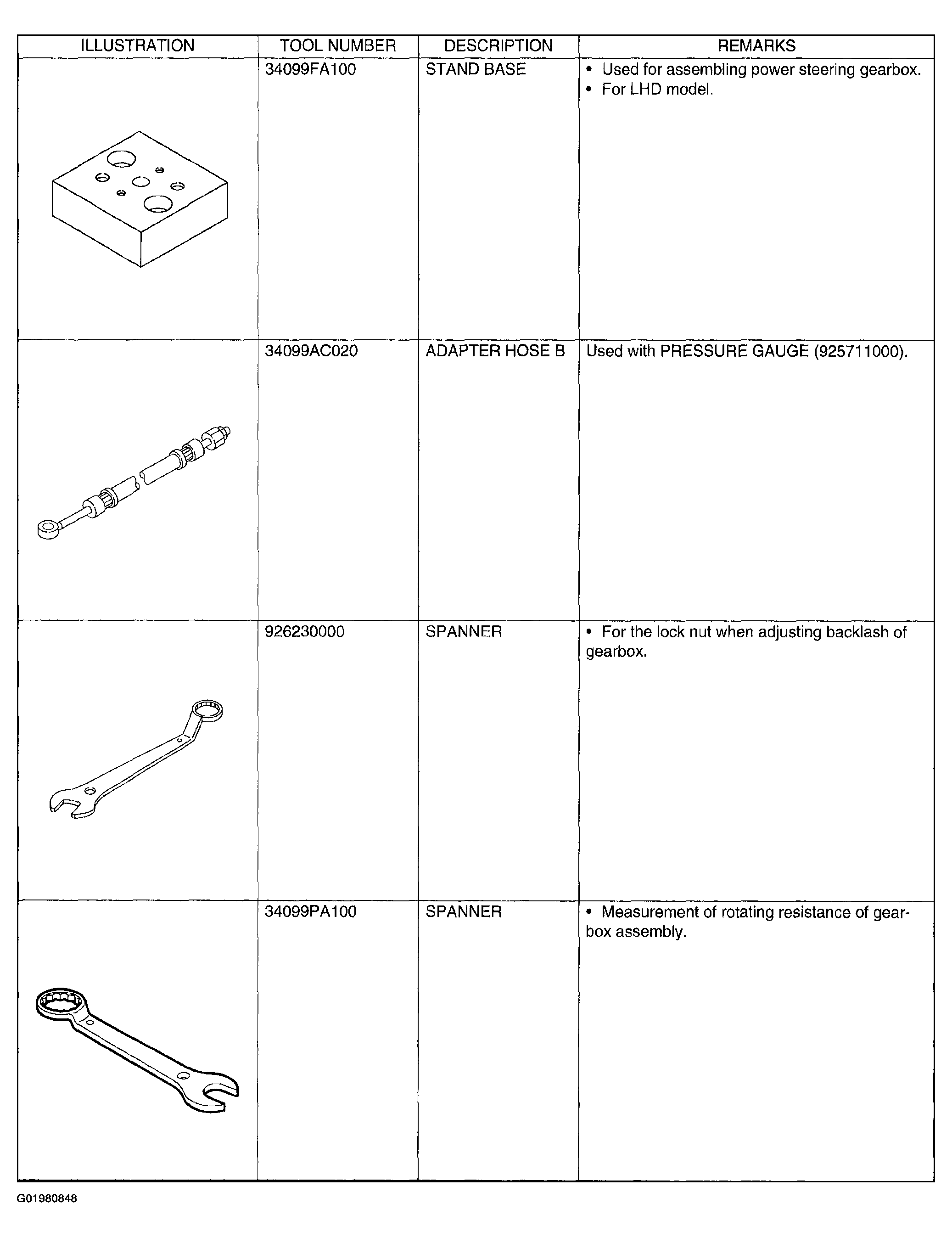

Fig 2: Identifying Special Tools (2 Of 7)

G01980848

Courtesy of SUBARU OF AMERICA, INC.

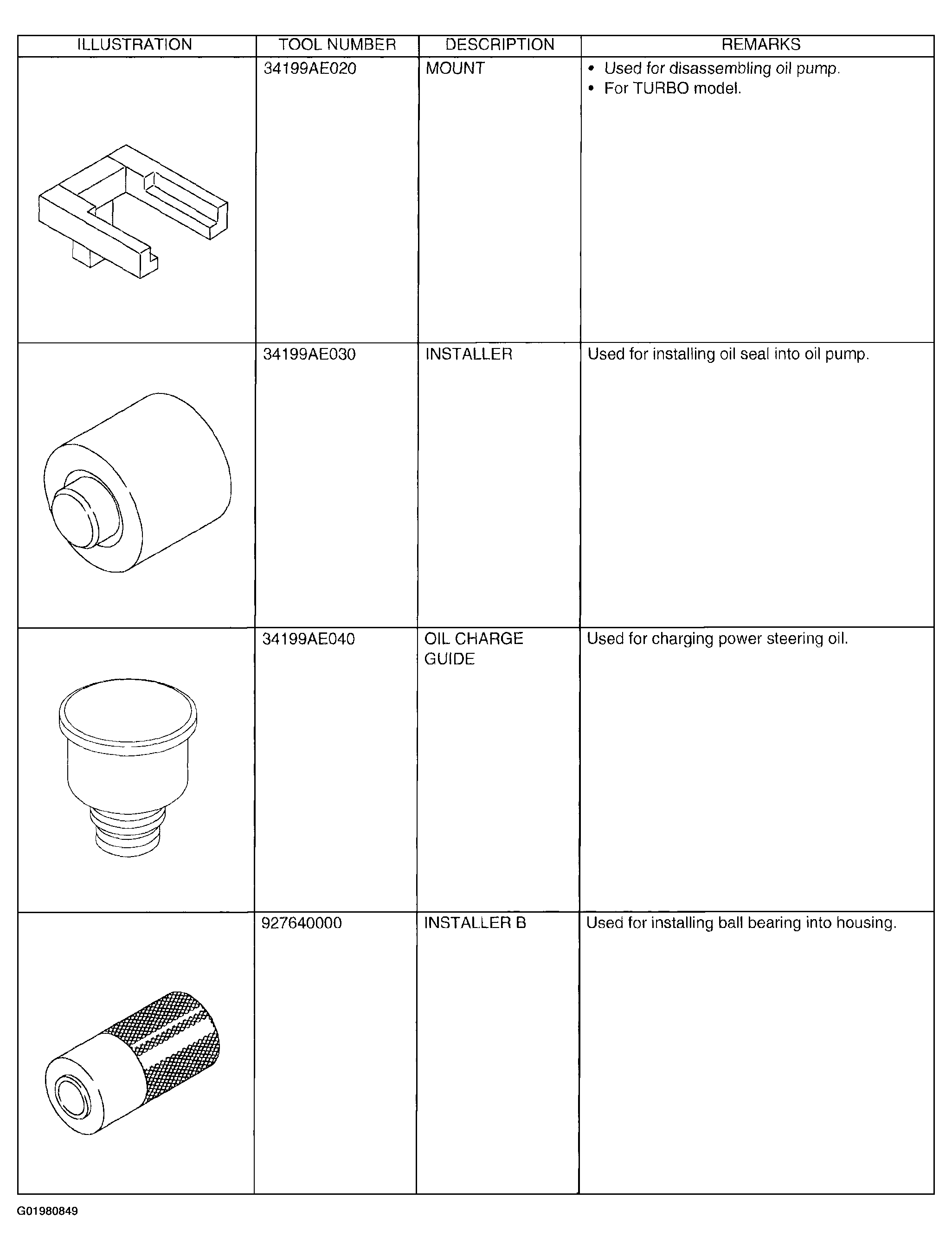

Fig 3: Identifying Special Tools (3 Of 7)

G01980849

Courtesy of SUBARU OF AMERICA, INC.

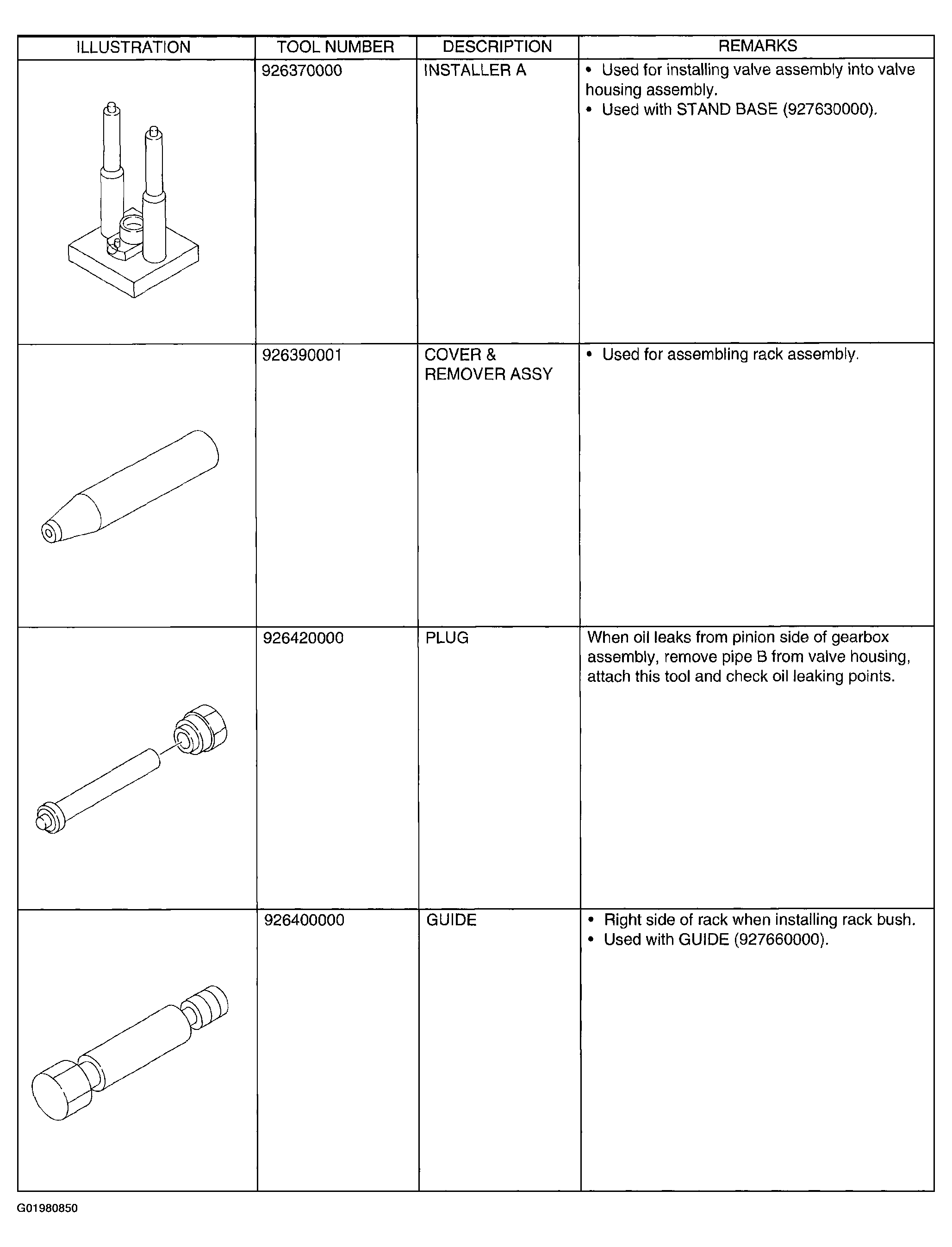

Fig 4: Identifying Special Tools (4 Of 7)

G01980850

Courtesy of SUBARU OF AMERICA, INC.

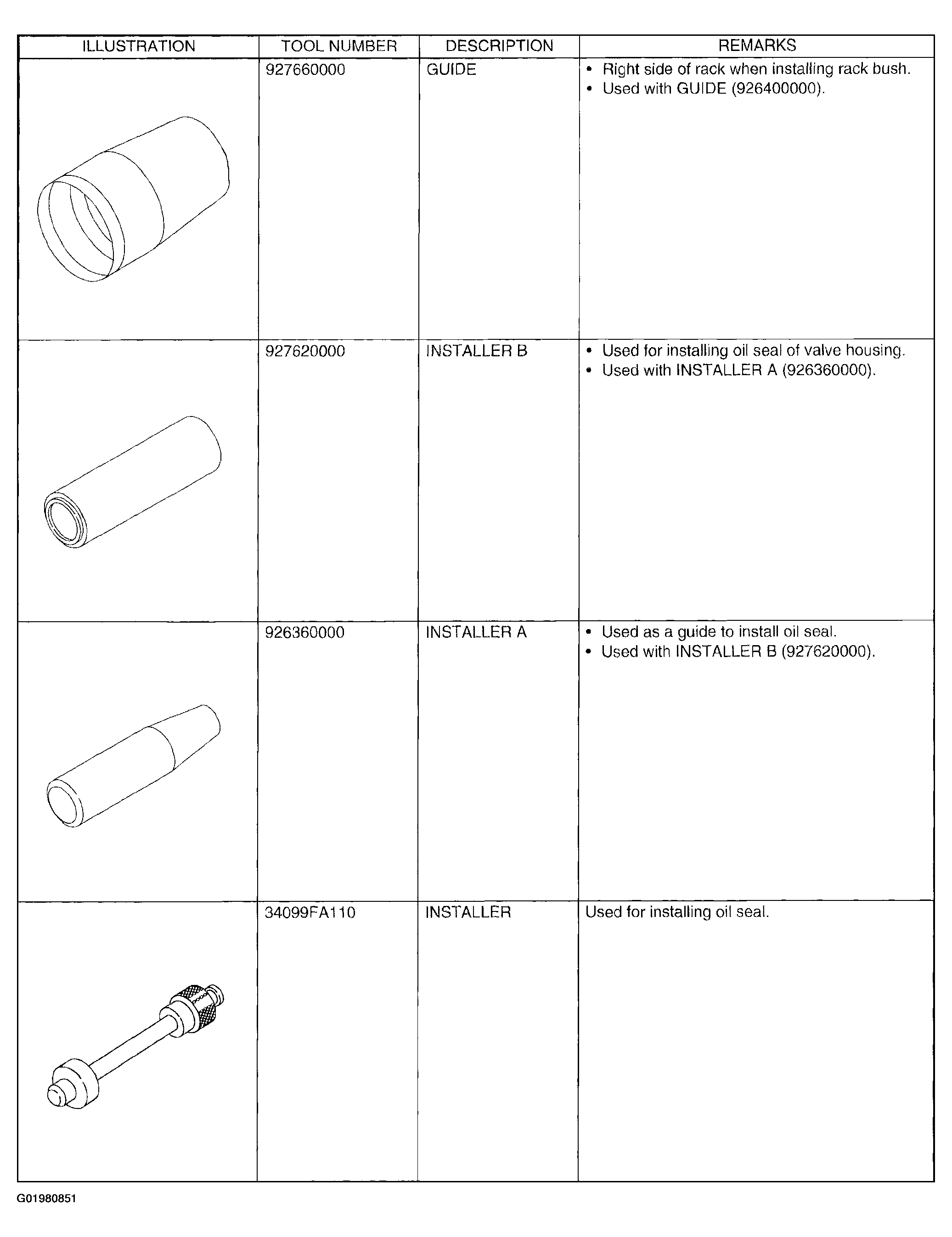

Fig 5: Identifying Special Tools (5 Of 7)

G01980851

Courtesy of SUBARU OF AMERICA, INC.

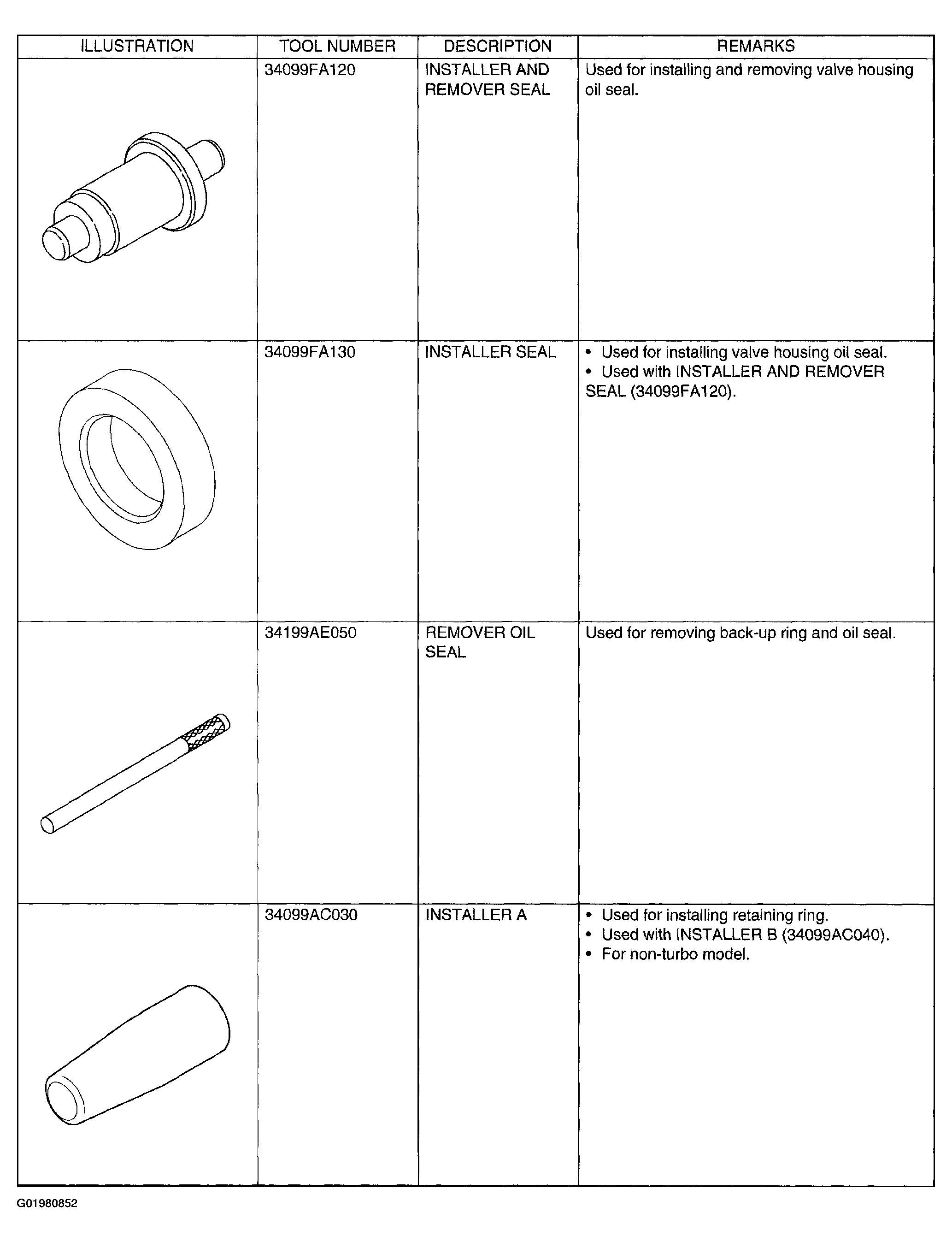

Fig 6: Identifying Special Tools (6 Of 7)

G01980852

Courtesy of SUBARU OF AMERICA, INC.

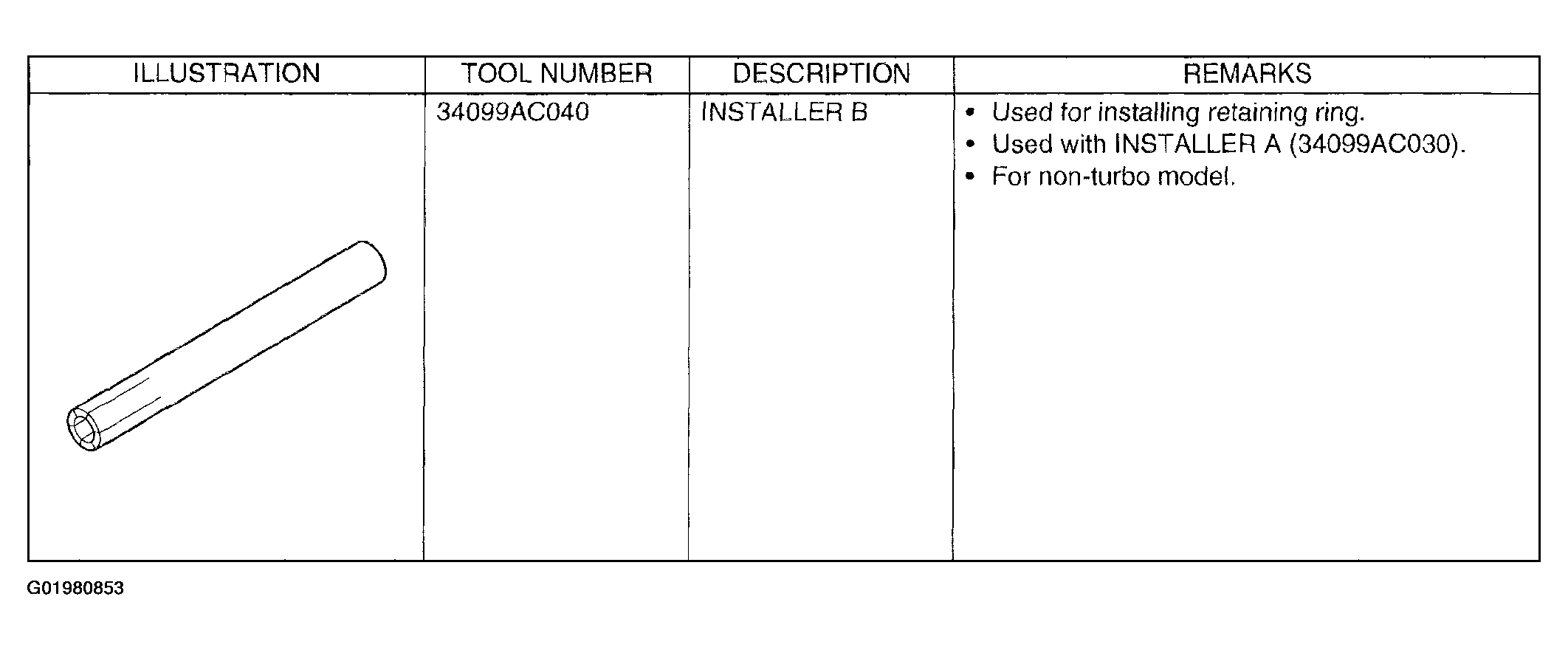

Fig 7: Identifying Special Tools (7 Of 7)

G01980853

Courtesy of SUBARU OF AMERICA, INC.
