Steering Wheel And Column

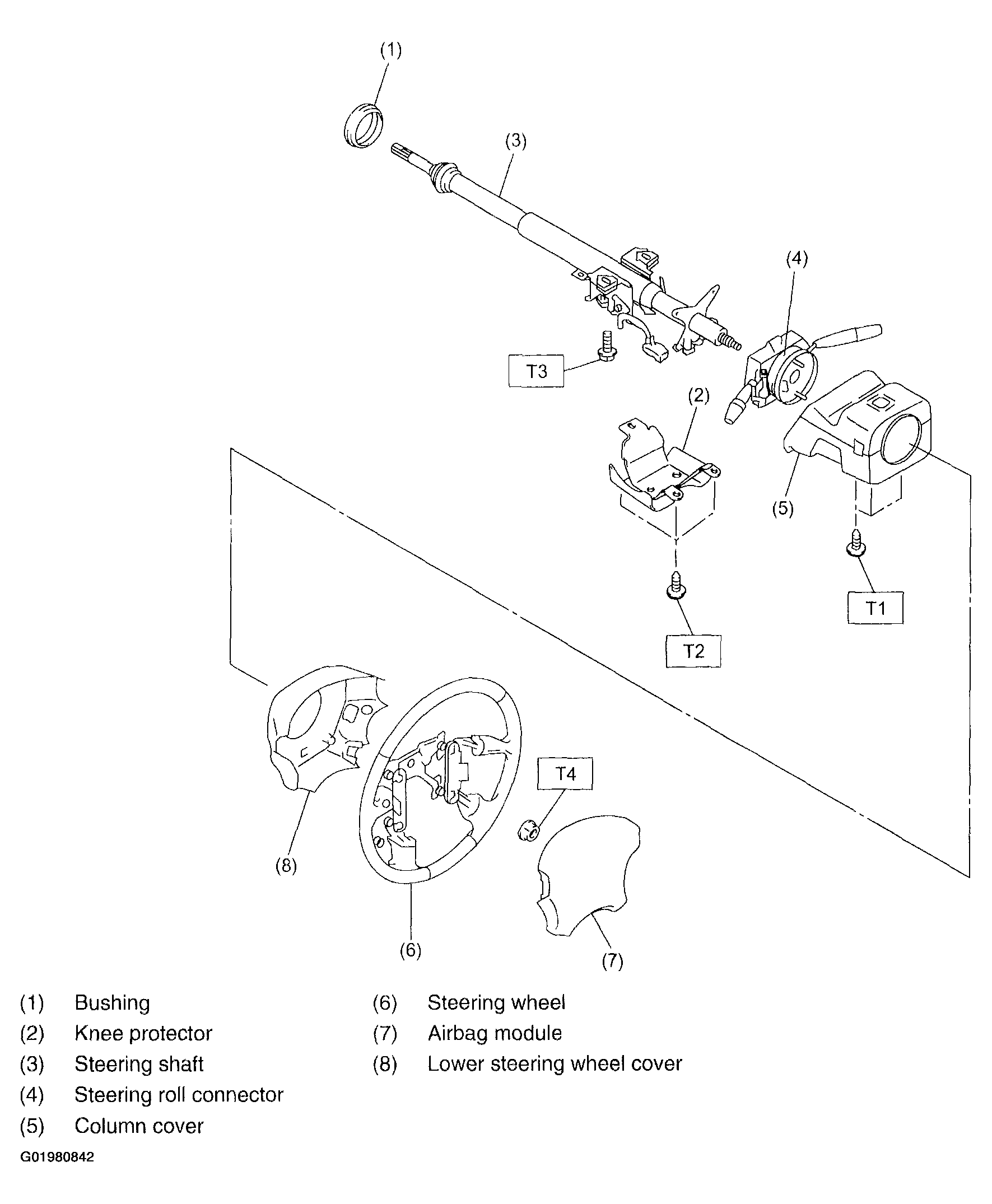

Fig 1: Exploded View Of Steering Wheel & Column
G01980842Courtesy of SUBARU OF AMERICA, INC.
  1. Tightening torque: N.m (kgf-m, ft-lb)
    1. T1:  1.2 (0.12, 0.9)
    2. T2:  3.4 (0.35, 2.5)
    3. T3:  25 (2.5, 18.1)
    4. T4:  44 (4.5, 32.5)
