Power Assisted System

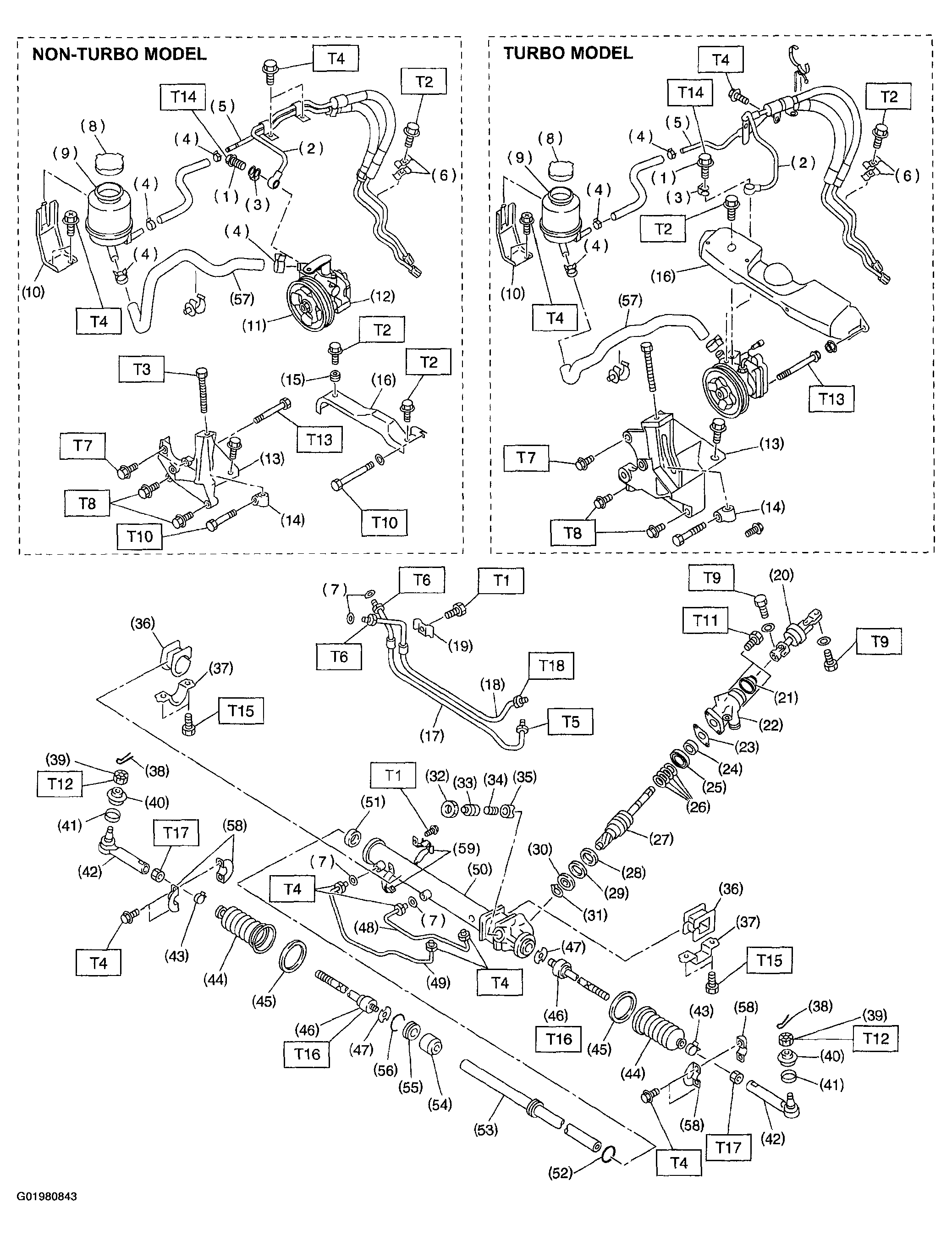

Fig 1: Exploded View Of Power Steering System (1 Of 2)
G01980843Courtesy of SUBARU OF AMERICA, INC.

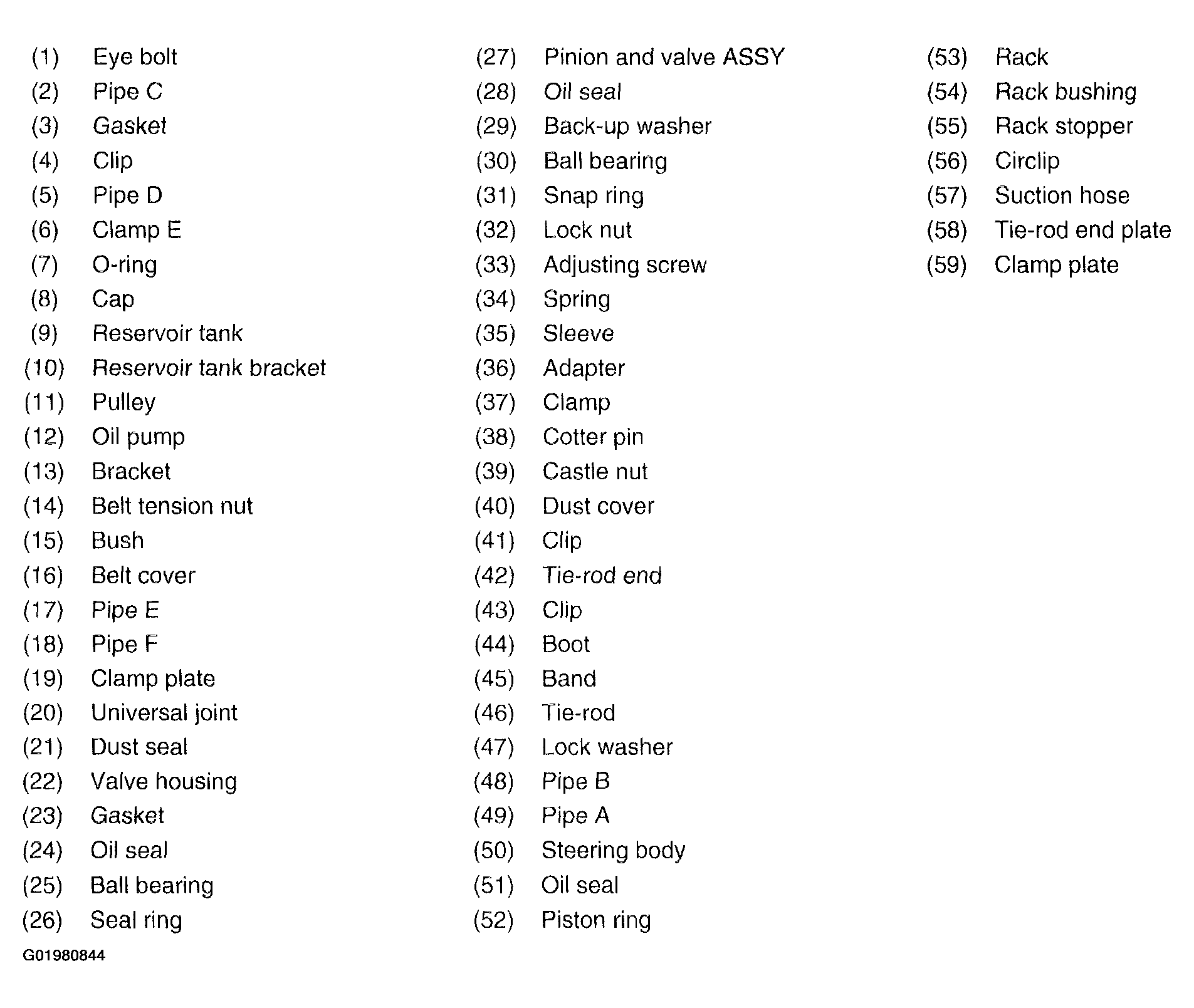

Fig 2: Exploded View Of Power Steering System (2 Of 2)
G01980844Courtesy of SUBARU OF AMERICA, INC.
  1. Tightening torque: N.m (kgf-m, ft-lb)
    1. T1:  6 (0.6, 4.3)
    2. T2:  7.4 (0.75, 5.4)
    3. T3:  8 (0.8, 5.8)
    4. T4:  13 (1.3, 9.4)
    5. T5:  15 (1.5, 10.8)
    6. T6:  15 (1.5, 10.8)
    7. T7:  15.7 (1.6, 11.6)
    8. T8:  22 (2.2, 15.9)
    9. T9:  24 (2.4, 17.4)
    10. T10:  25 (2.5, 18.1)
    11. T11:  25 (2.5, 18.1)
    12. T12:  27 (2.75, 19.9)
    13. T13:  37.3 (3.8, 27.5)
    14. T14:  39 (4.0, 28.9)
    15. T15:  59 (6.0, 43)
    16. T16:  78 (8.0, 58)
    17. T17:  83 (8.5, 61.5)
    18. T18:  25 (2.5, 18.1)
