Non-Turbo Model

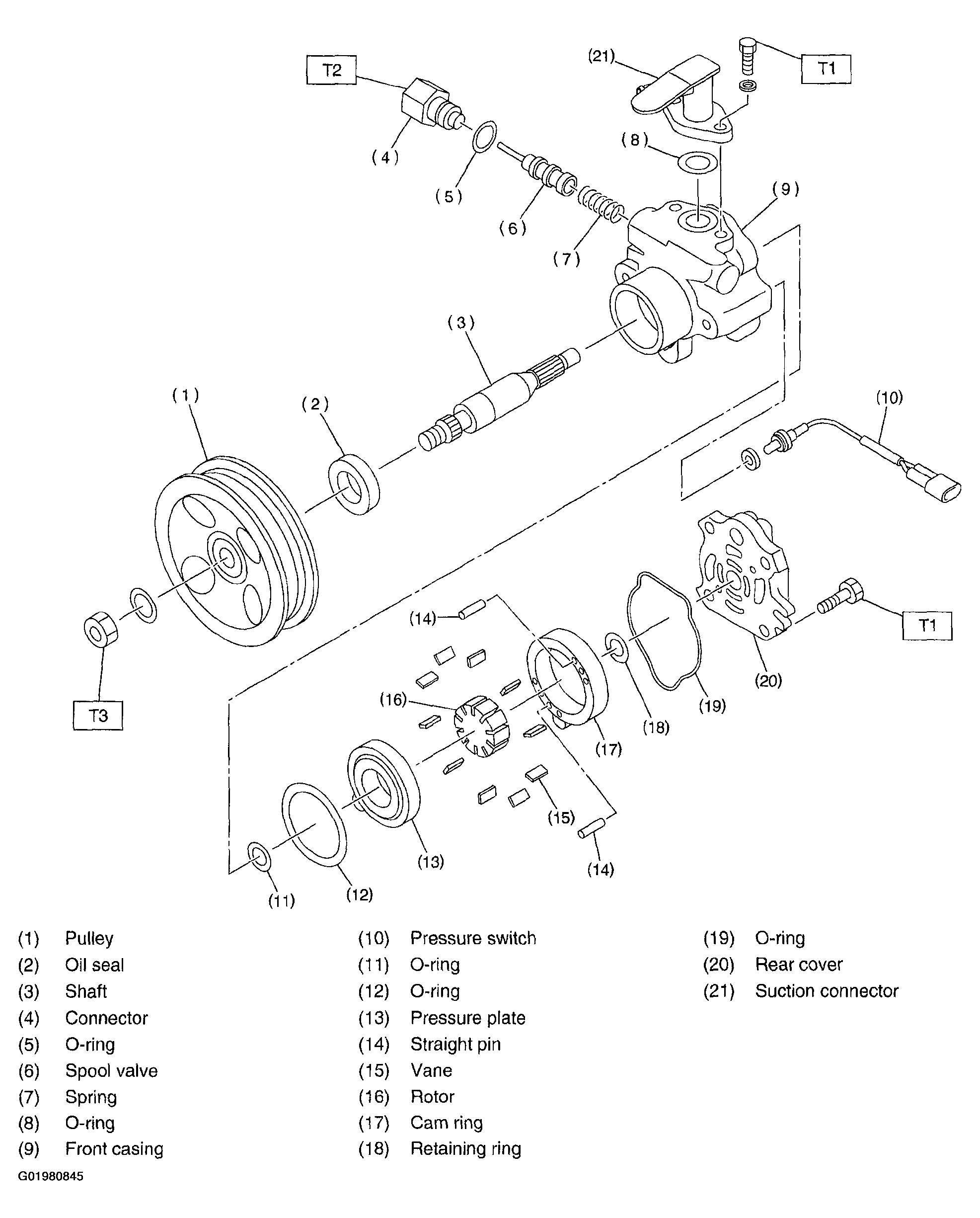

Fig 1: Exploded View Of Oil Pump (Non-Turbo Model)
G01980845Courtesy of SUBARU OF AMERICA, INC.
  1. Tightening torque: N.m (kgf-m, ft-lb)
    1. T1:  21 (2.14, 15.5)
    2. T2:  49 (5.0, 36.2)
    3. T3:  52 (5.3, 38)
