RH Side

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G02621817Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the resonator chamber, see REMOVAL , Resonator Chamber.
  3. Remove the spark plug cords by pulling the boot. (Do not pull the cord itself)

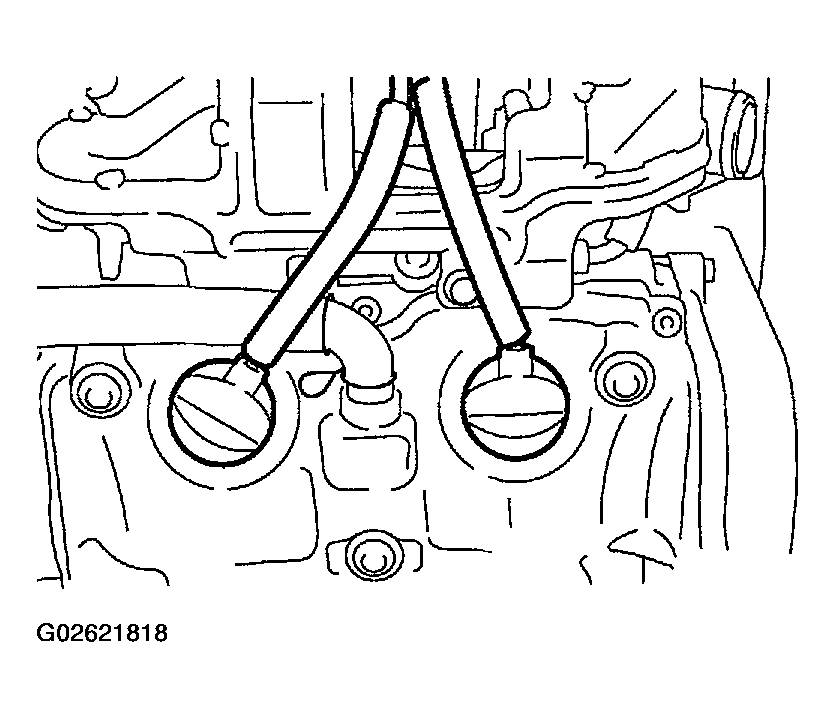

    Fig 2: Removing Spark Plug Cords By Pulling On Boot
    G02621818Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plugs with spark plug sockets.

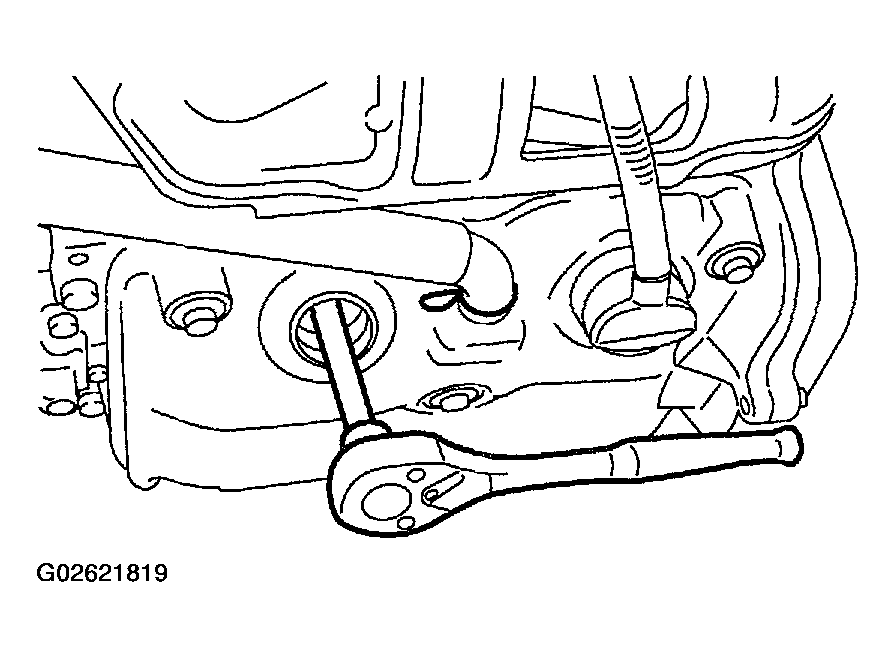

    Fig 3: Removing Spark Plugs
    G02621819Courtesy of SUBARU OF AMERICA, INC.
