Fuel System - SOHC: General Description: Specifications

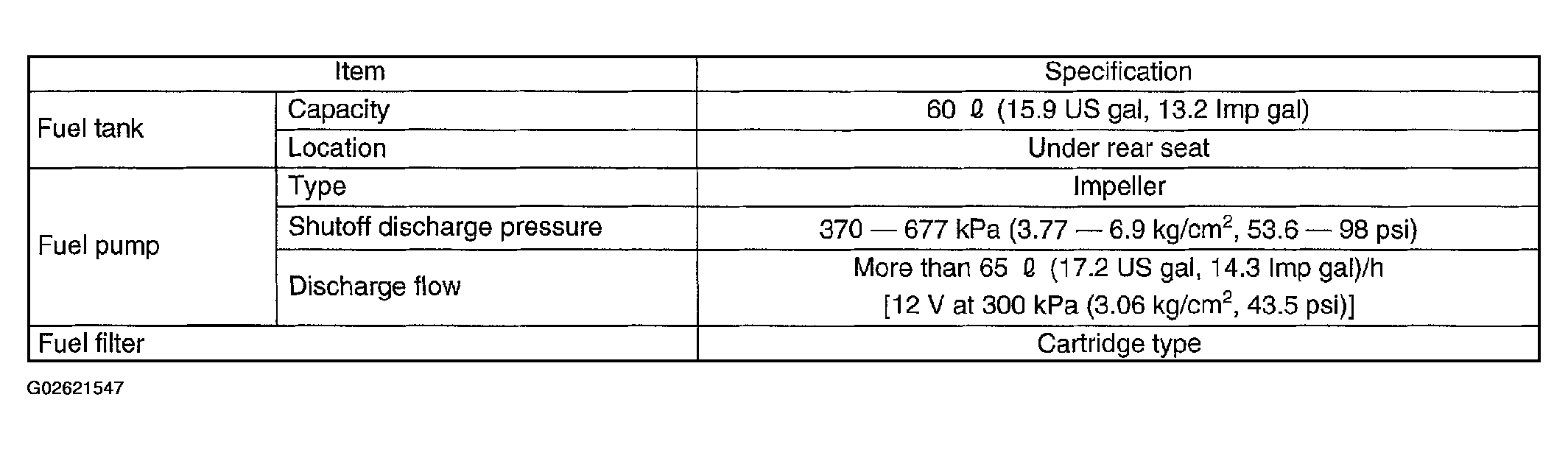

Fig 1: Fuel Delivery System Specifications

G02621547

Courtesy of SUBARU OF AMERICA, INC.
