Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

1. Tightening torque:  4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

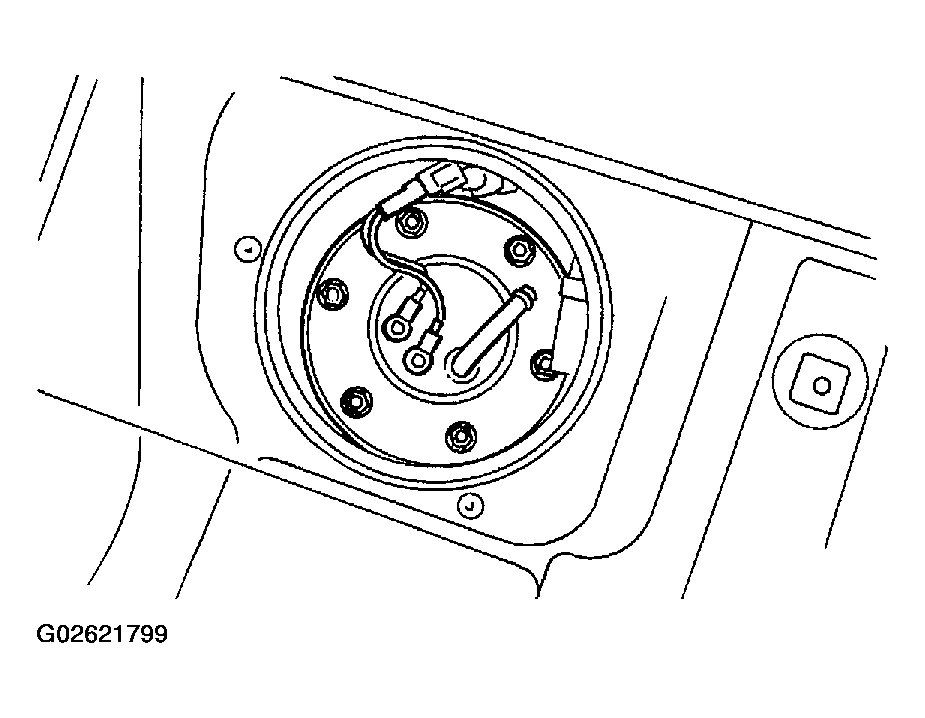

Fig 1: Installing Bolts Which Install Fuel Sub Meter Unit Into Fuel Tank

Courtesy of SUBARU OF AMERICA, INC.
