Non-Turbo Model

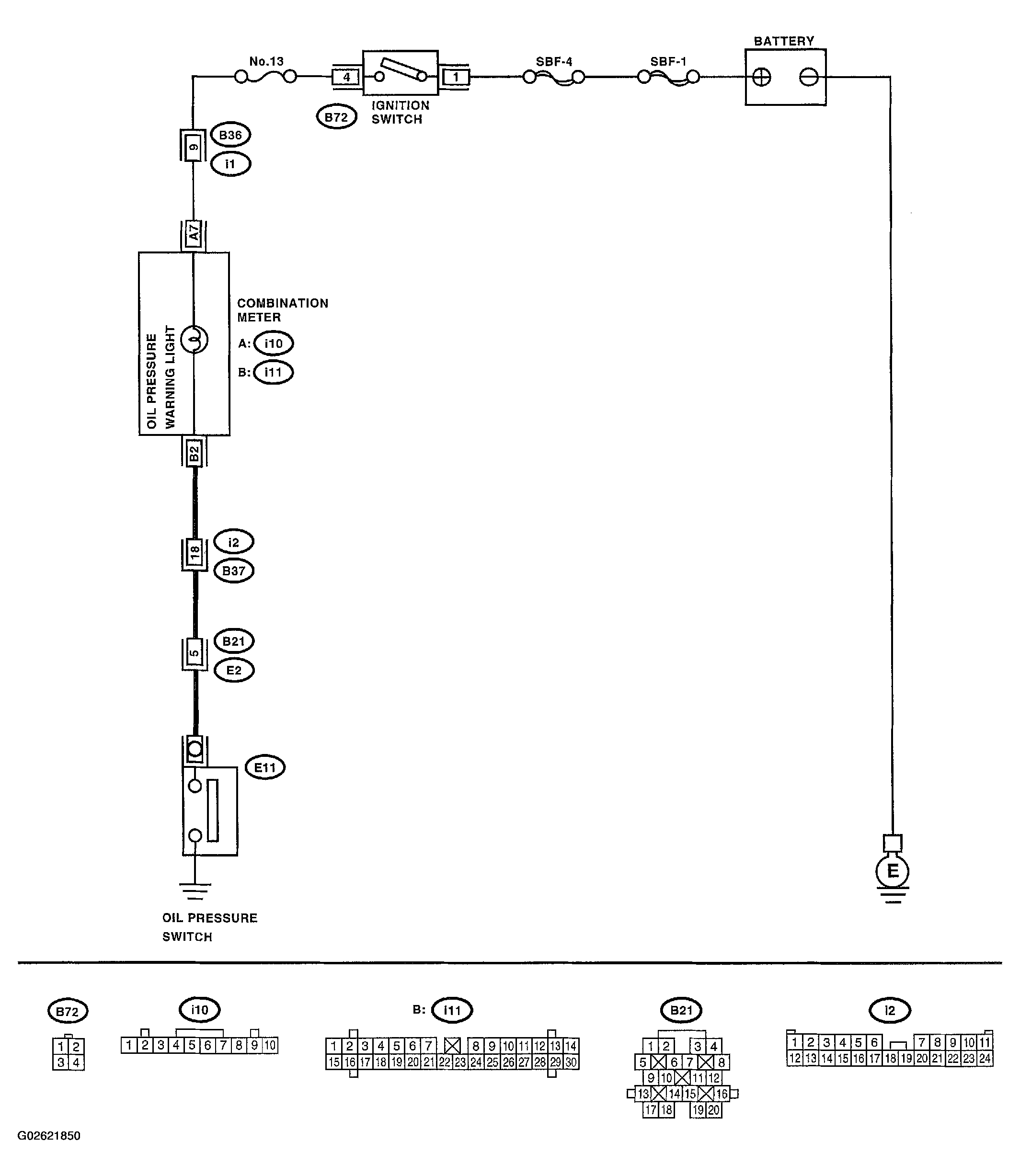

Fig 1: Oil Pressure System Schematic (Non-Turbo Model)
G02621850Courtesy of SUBARU OF AMERICA, INC.
