Home >> Subaru >> 2003 >> Impreza TS, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System >> General Description >> Components >> Turbo Model

Turbo Model

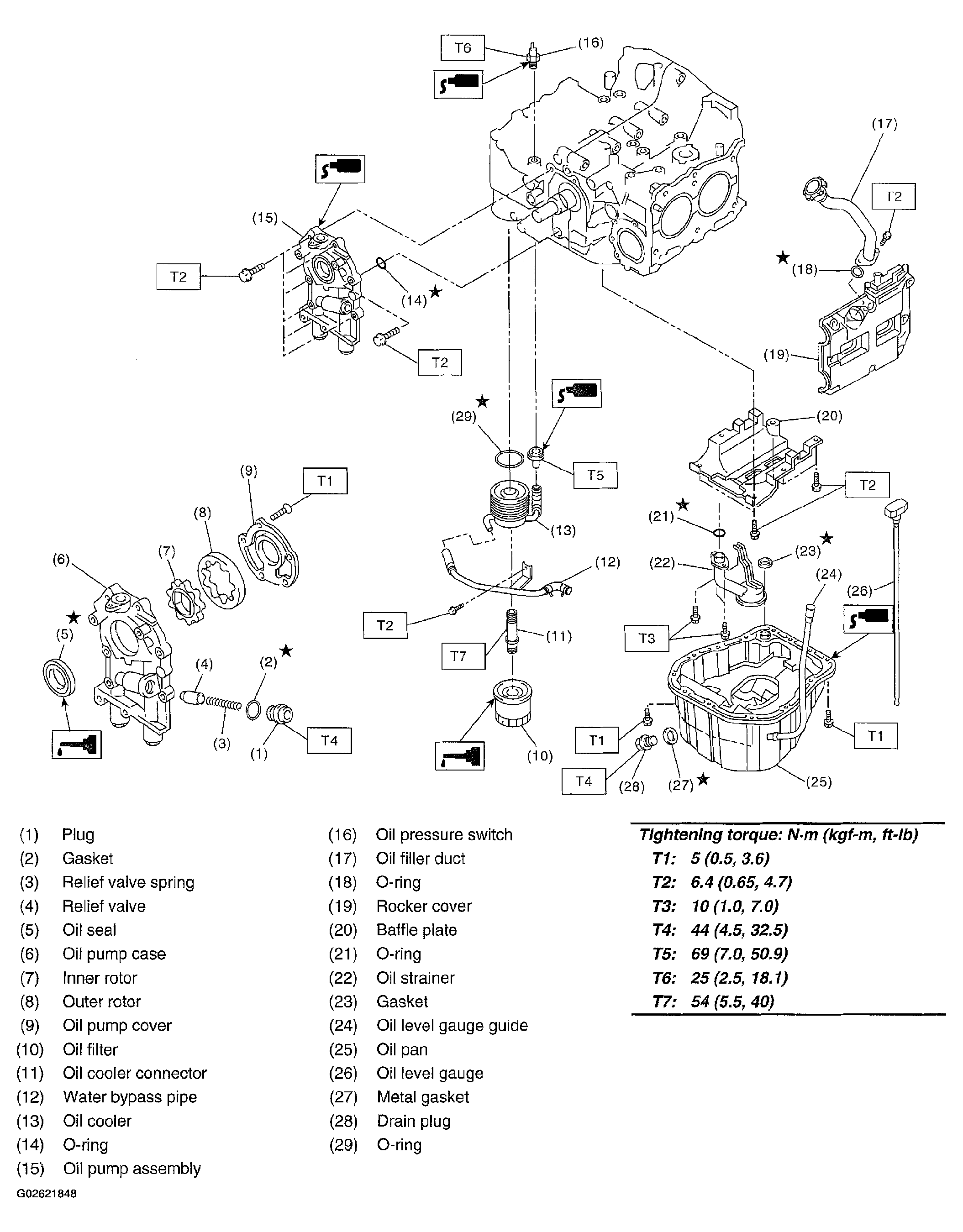

Fig 1: Lubrication System Replacement Components (Turbo Model) With Torque Specifications

G02621848

Courtesy of SUBARU OF AMERICA, INC.
