Home >> Subaru >> 2003 >> Impreza TS, Automatic >> Repair and Diagnosis >> Electrical >> Gauges >> Instruments/Driver Info - Mechanism & Function >> Combination Meter >> Speedometer >> Specifications

Combination Meter: Speedometer: Specifications

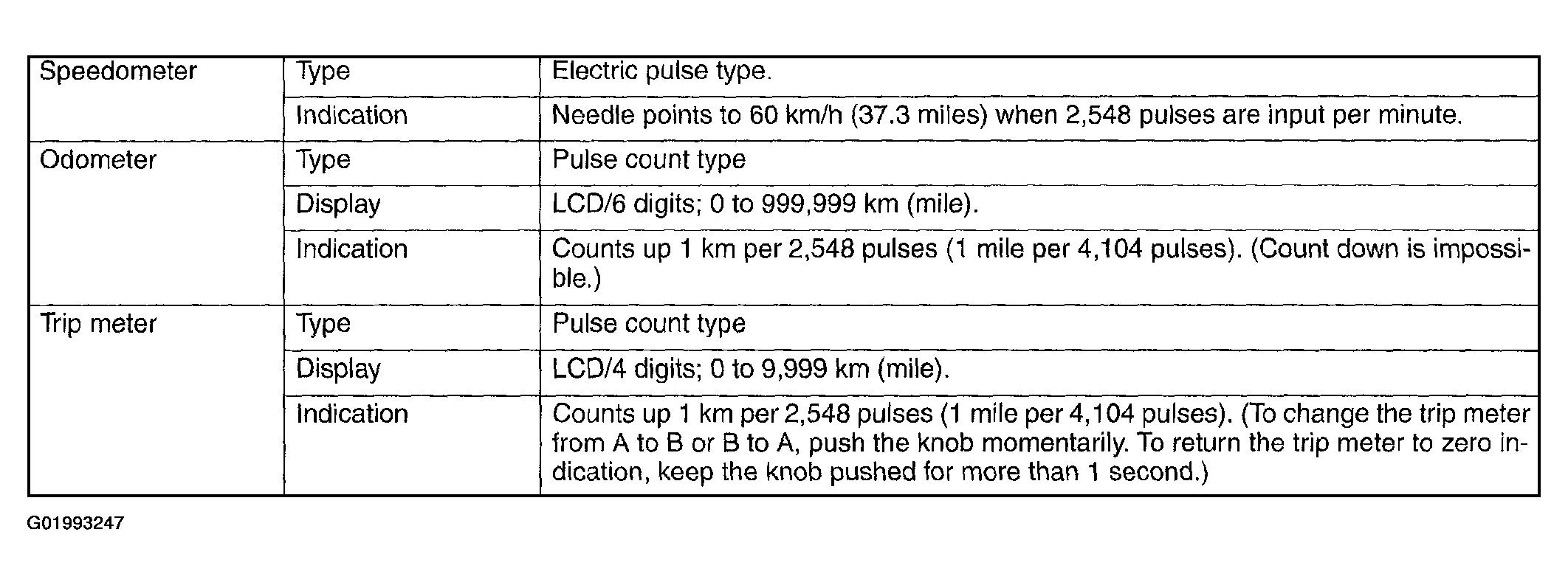

Fig 1: Speedometer System Specifications Chart

G01993247

Courtesy of SUBARU OF AMERICA, INC.
