Fuel Gauge: Specifications

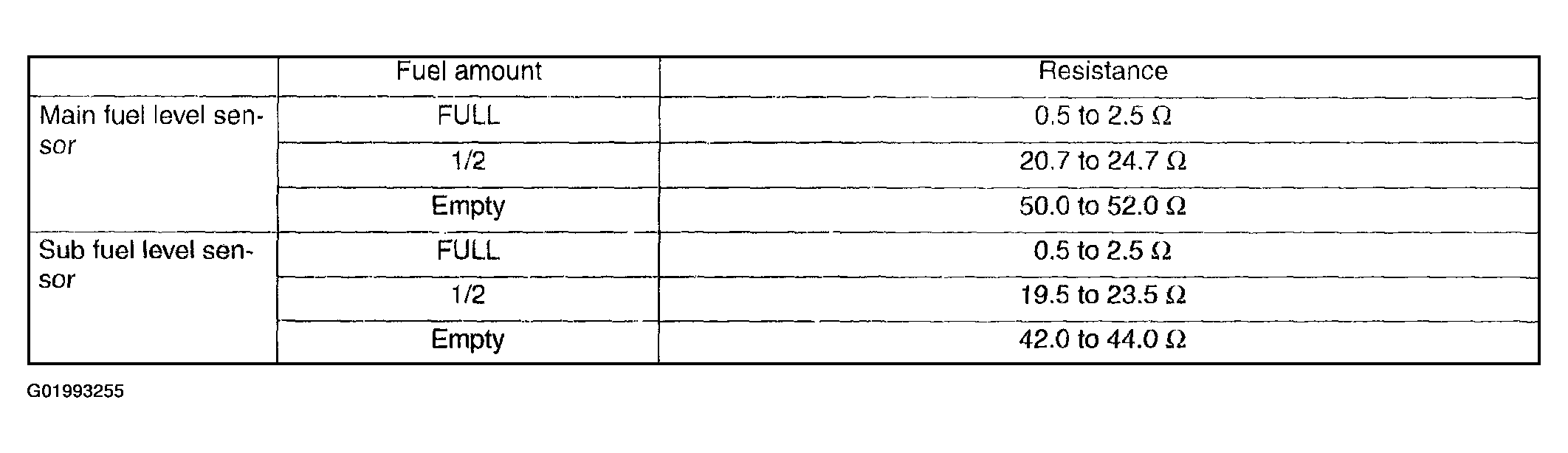

Fig 1: Main Fuel Level & Sub-Fuel Level Sensors Specifications Chart

G01993255

Courtesy of SUBARU OF AMERICA, INC.
