Abs Control Module And Hydraulic Control Unit (ABSCM & H/U)

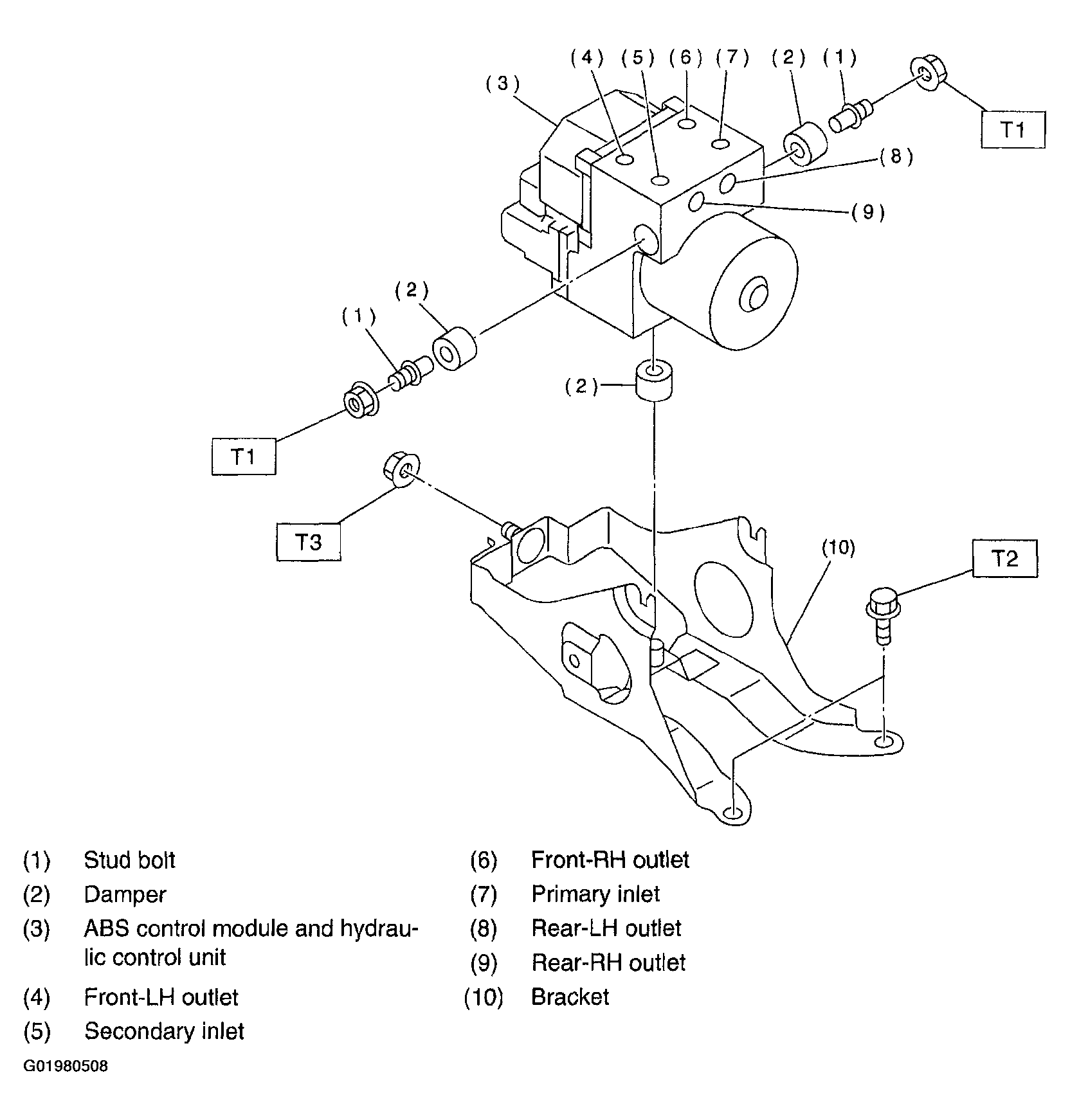

Fig 1: Identifying ABS Control Module & Hydraulic Control Unit Components

Courtesy of SUBARU OF AMERICA, INC.

1. Tightening torque: N.m (kgf-m, ft-lb)
   1. T1:  18 (1.8,13.0)
   2. T2:  38 (3.8,27.5)
   3. T3:  33 (3,24)
