Clutch Switch: Inspection

Measure the clutch switch resistance.

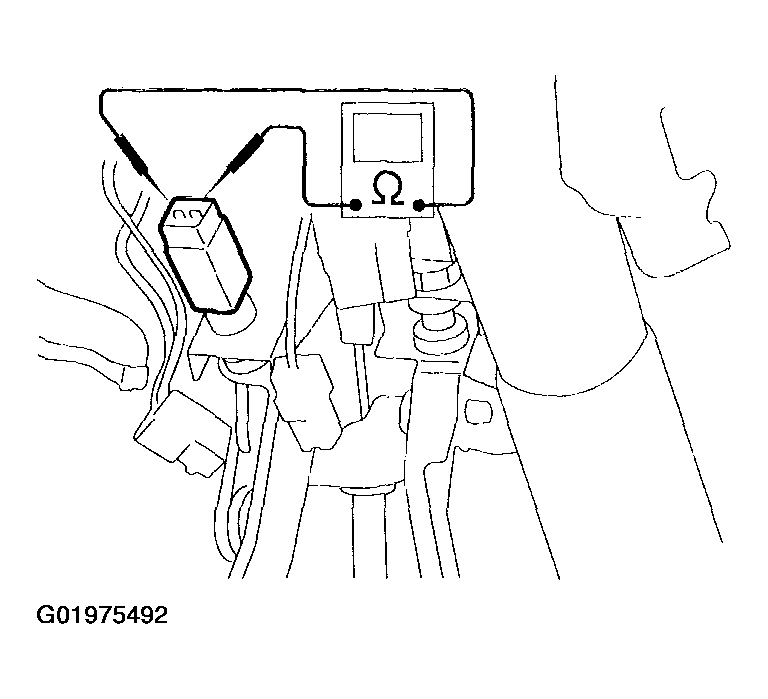

Fig 1: Measuring Clutch Switch Resistance

Courtesy of SUBARU OF AMERICA, INC.

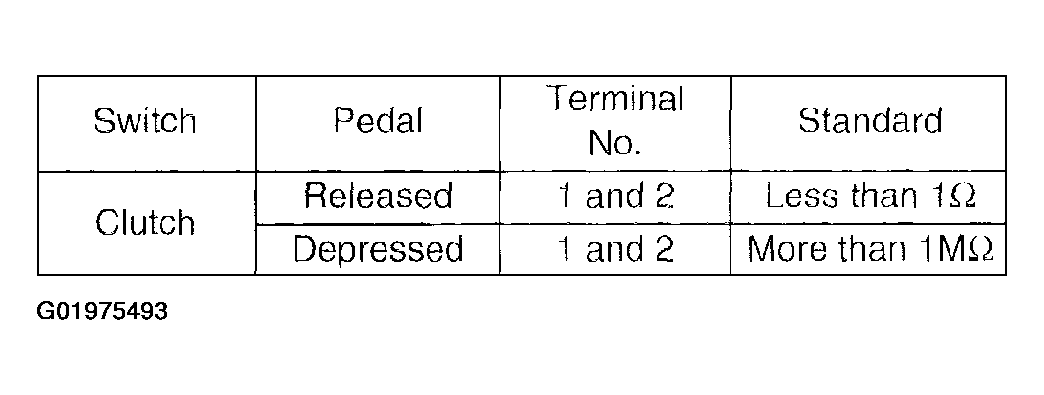

Fig 2: Clutch Switch Resistance Specification Chart

Courtesy of SUBARU OF AMERICA, INC.

If NG, replace the clutch switch.
