Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Transmission Mounting System >> Removal >> Pitching Stopper

Pitching Stopper

  1. Disconnect the ground cable from battery.
  2. Remove the air intake duct (Non-turbo model). See REMOVAL , Air Intake Duct.
  3. Remove the air cleaner case (Non-turbo model). See REMOVAL , Air Cleaner Case.
  4. Remove the intercooler (Turbo model). See REMOVAL , Intercooler.
  5. Remove the pitching stopper.

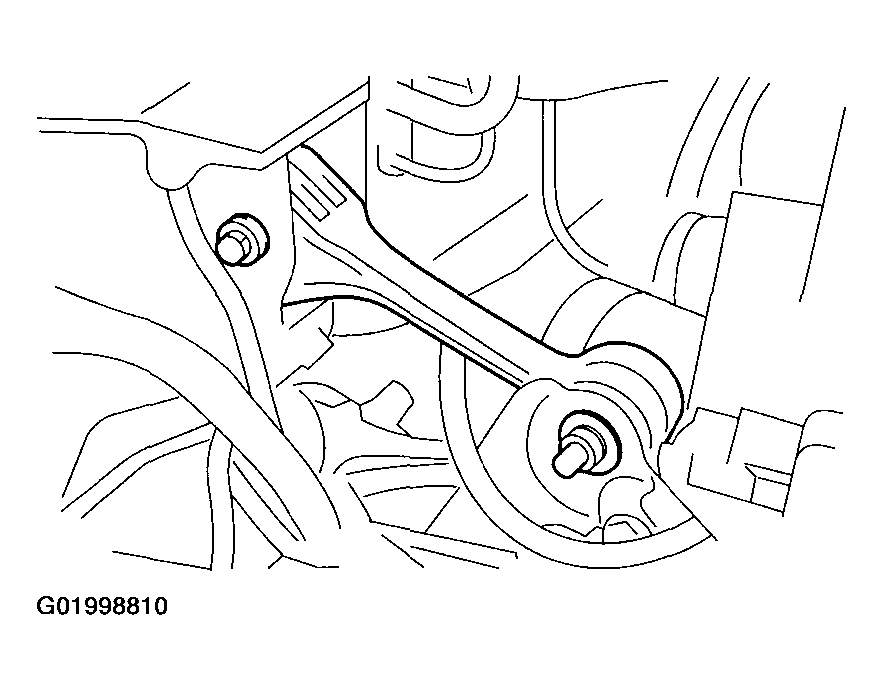

    Fig 1: Removing Pitching Stopper
    G01998810Courtesy of SUBARU OF AMERICA, INC.
