CROSSMEMBER And Cushion Rubber

  1. Install the rear cushion rubber.
    1. Tightening torque:  39 N.m (4.0 kgf-m, 29 ft-lb)
  2. Install the crossmember.
    1. T1:  35 N.m (3.6 kgf-m, 26 ft-lb)
    2. T2:  70 N.m (7.1 kgf-m, 51.4 ft-lb)

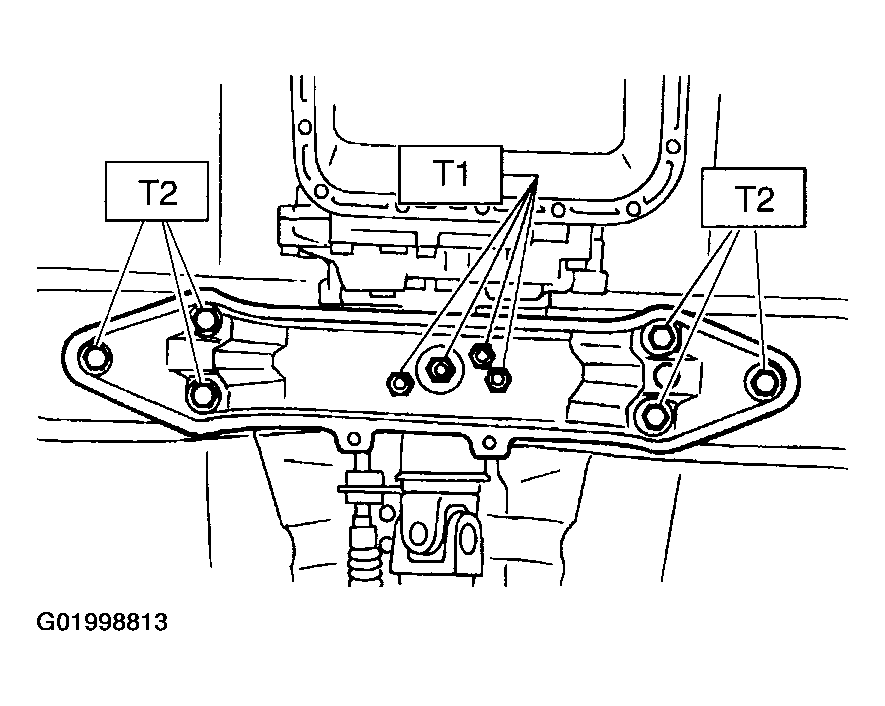

    Fig 1: Installing Crossmember
    G01998813Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the transmission jack.
  4. Install the heat shield cover (if equipped)
  5. Install the front, center, rear exhaust pipes and the muffler (Non-turbo model). See INSTALLATION , Front Exhaust Pipe, INSTALLATION , Center Exhaust Pipe, INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
  6. Install the center, rear exhaust pipes and the muffler (Turbo model). See INSTALLATION , Center Exhaust Pipe, INSTALLATION , Rear Exhaust Pipe and INSTALLATION , Muffler.
