Torque Converter Clutch Assembly: Removal

Remove the transmission assembly from the vehicle. See REMOVAL , Automatic Transmission Assembly.
Extract the torque converter clutch horizontally.
NOTE:
- Be careful not to scratch the bushing inside the oil pump shaft.
- Note that oil pump shaft also comes out.

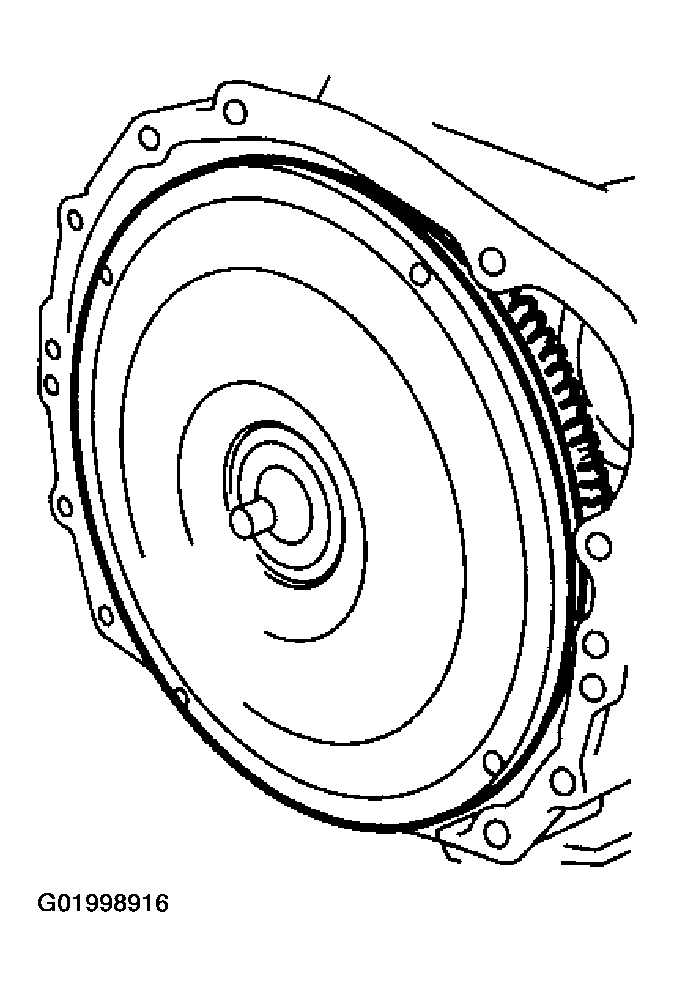

  Fig 1: Removing Torque Converter Clutch Horizontally
  Courtesy of SUBARU OF AMERICA, INC.
Remove the input shaft.
NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

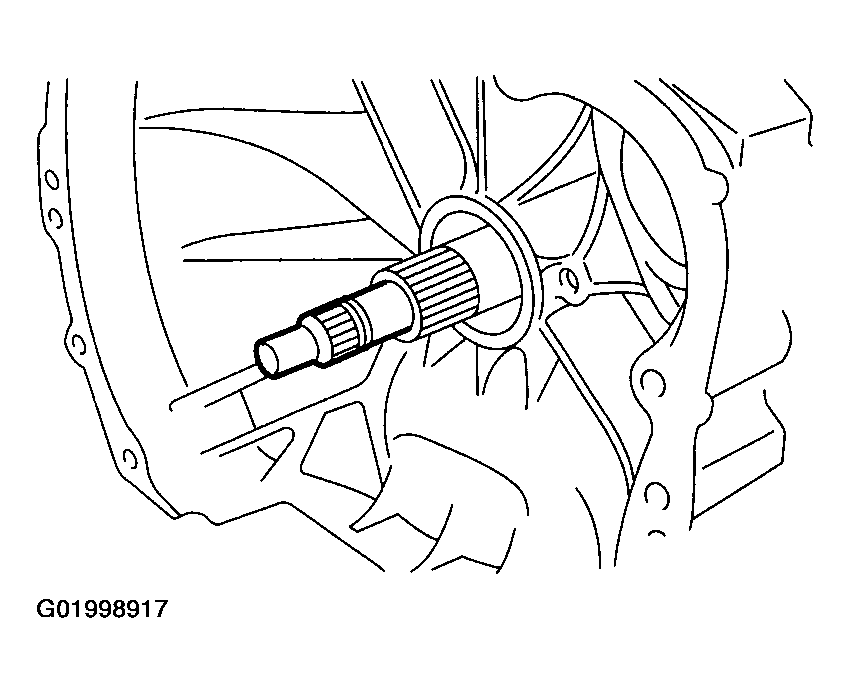

Fig 2: Removing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Extract the oil pump shaft from torque converter clutch.
Remove the clip from torque converter clutch.
