Reduction Drive Gear: Removal

  1. Remove the transmission assembly from the vehicle. See REMOVAL , Automatic Transmission Assembly.
  2. Remove rear vehicle speed sensor, and separate the extension case from transmission case. See REMOVAL , Extension Case.
  3. Remove the reduction driven gear. See REMOVAL , Reduction Driven Gear.
  4. Using ST, extract the reduction drive gear.

    ST1 499737100 PULLER

    ST2 899524100 PULLER SET

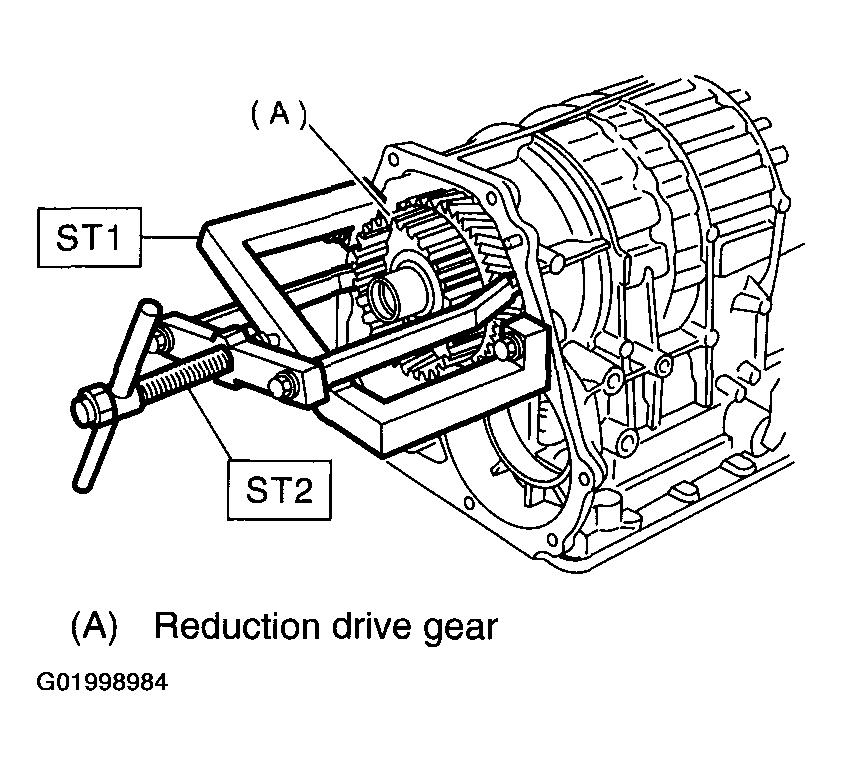

    Fig 1: Extracting Reduction Drive Gear Using ST
    G01998984Courtesy of SUBARU OF AMERICA, INC.
