Reduction Drive Gear: Disassembly

  1. Take out the seal rings.

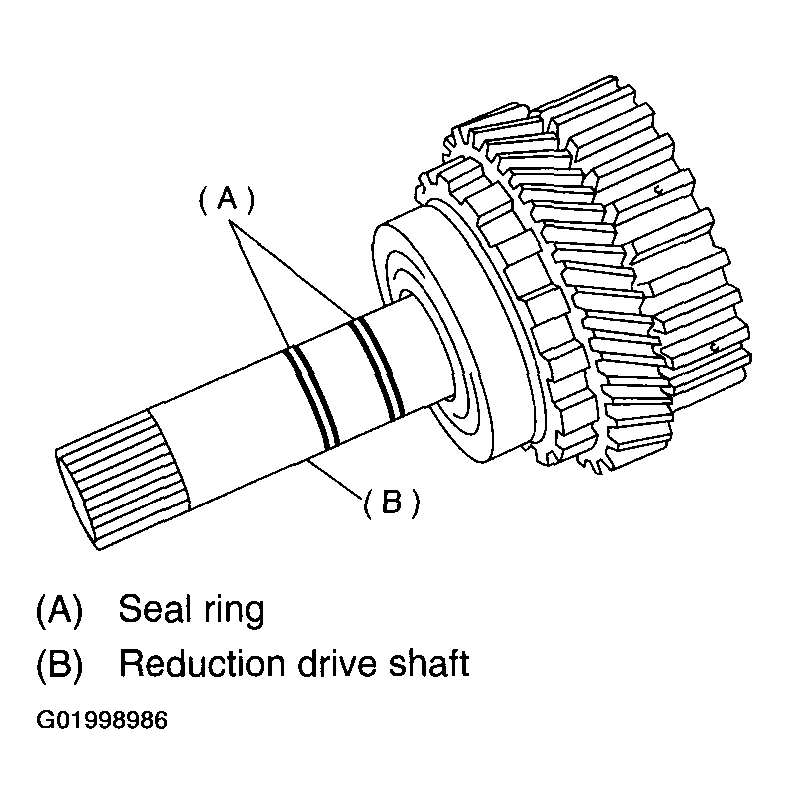

    Fig 1: Removing Seal Rings
    G01998986Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove the ball bearing.

    ST 498077600 REMOVER

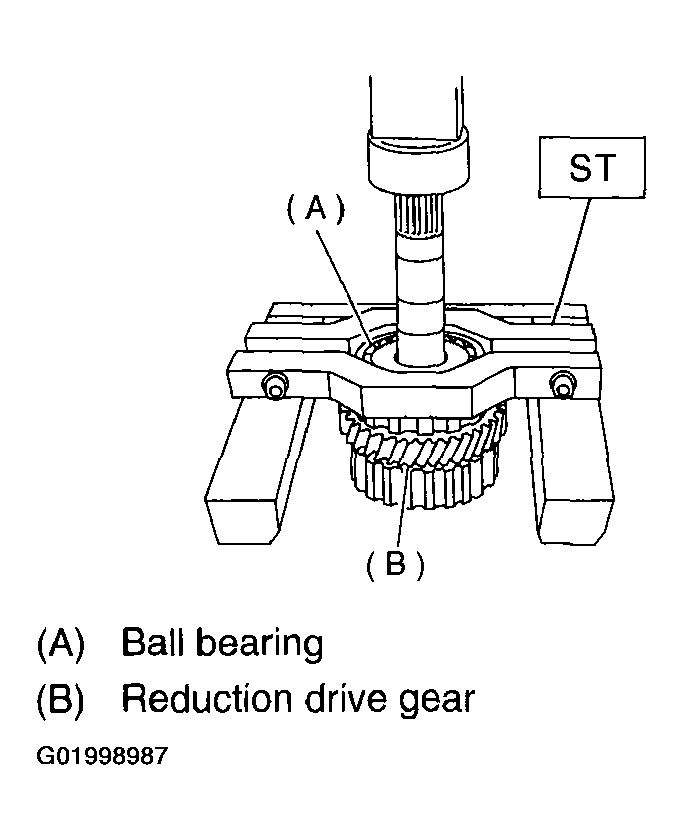

    Fig 2: Removing Ball Bearing Using ST
    G01998987Courtesy of SUBARU OF AMERICA, INC.
  3. Using a press, remove the reduction drive gear.

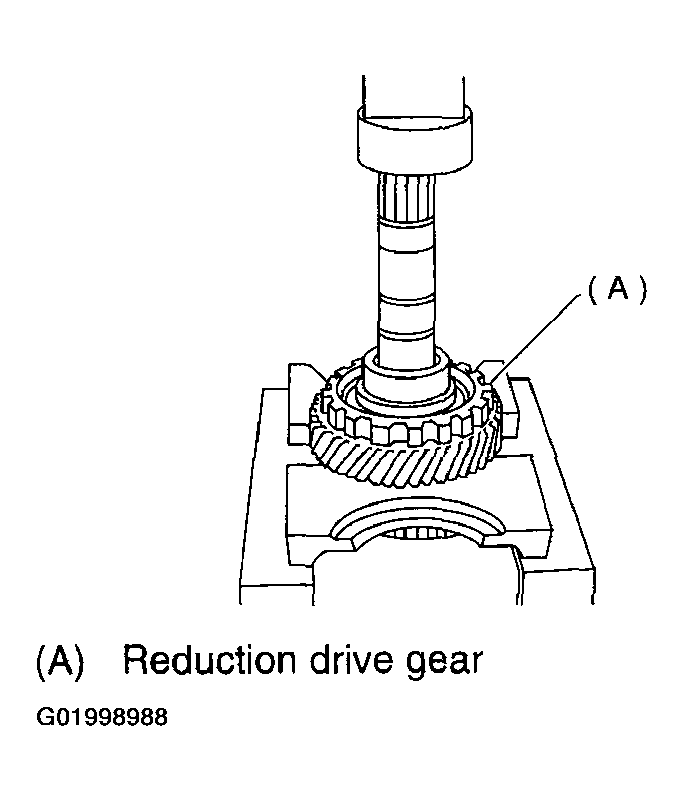

    Fig 3: Removing Reduction Drive Gear Using Press
    G01998988Courtesy of SUBARU OF AMERICA, INC.
