Rear Drive Shaft: Disassembly

  1. Using a press, remove the revolution gear.

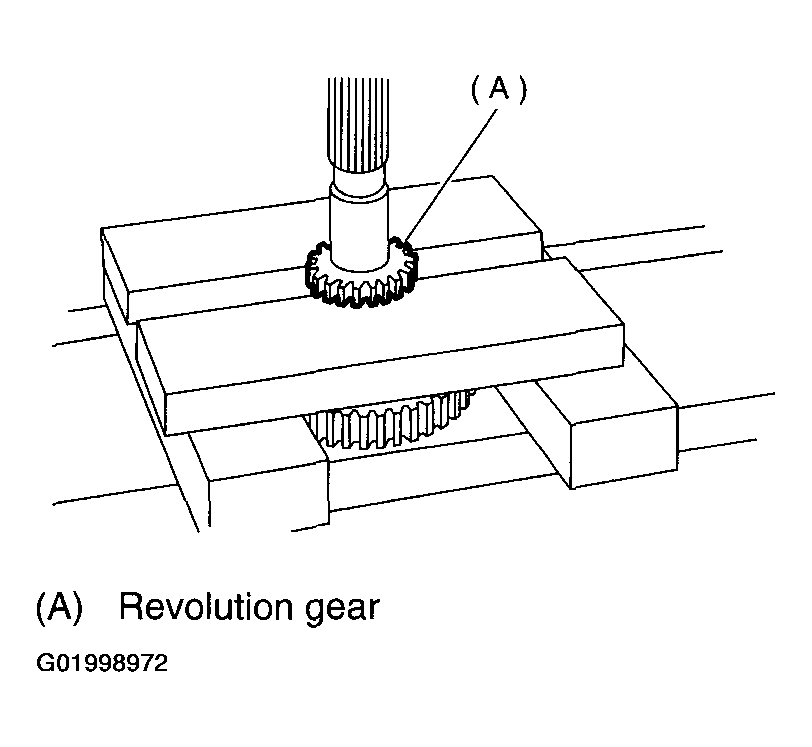

    Fig 1: Removing Revolution Gear Using Press
    G01998972Courtesy of SUBARU OF AMERICA, INC.
  2. Using a press, remove front and side ball bearings and the clutch hub.

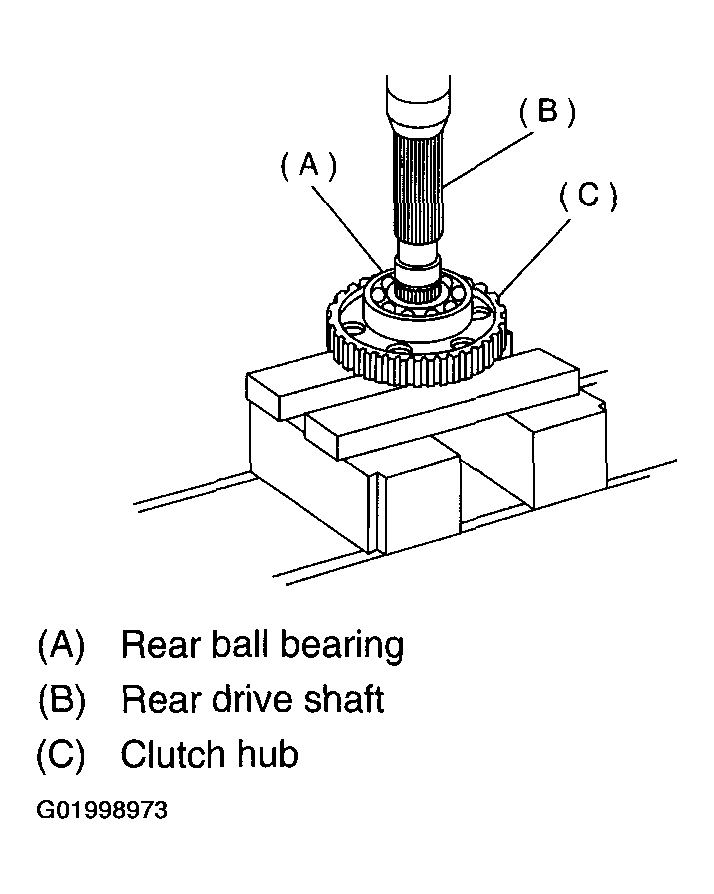

    Fig 2: Removing Front, Side Ball Bearings & Clutch Hub Using Press
    G01998973Courtesy of SUBARU OF AMERICA, INC.
