Rear Drive Shaft: Assembly

To assemble, reverse order of disassembly.

NOTE:
  • Use new ball bearings and revolution gear.
  • Pay attention to the orientation of the clutch hub.

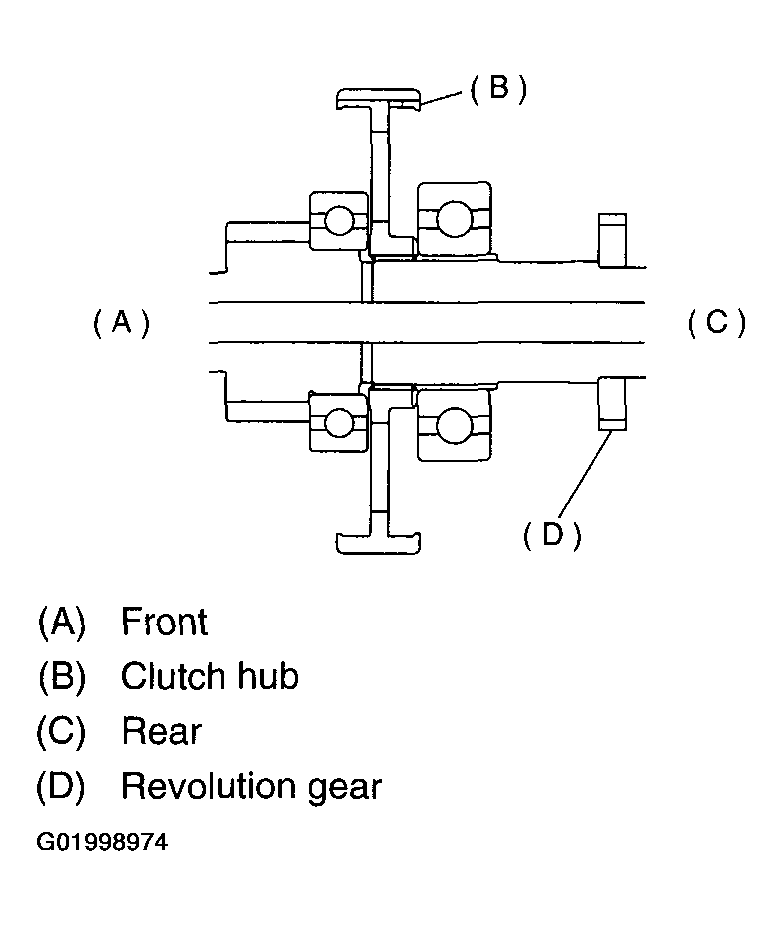

Fig 1: Assembling Rear Drive Shaft
G01998974Courtesy of SUBARU OF AMERICA, INC.
