Planetary Gear And Plate

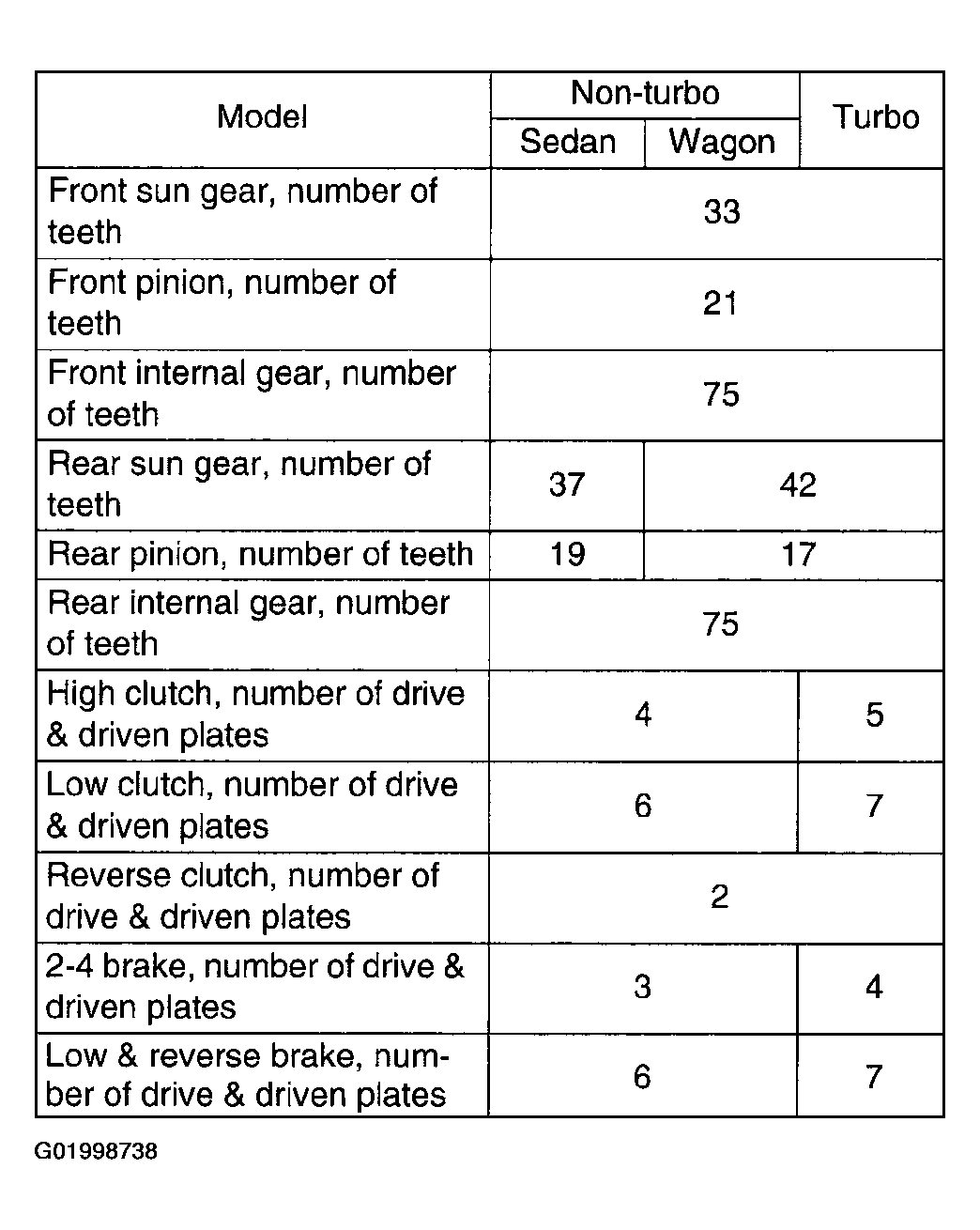

Fig 1: Planetary Gear & Plate Specifications Chart

G01998738

Courtesy of SUBARU OF AMERICA, INC.
