Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> General Description >> Component >> Reduction Gear (MPT)

Reduction Gear (MPT)

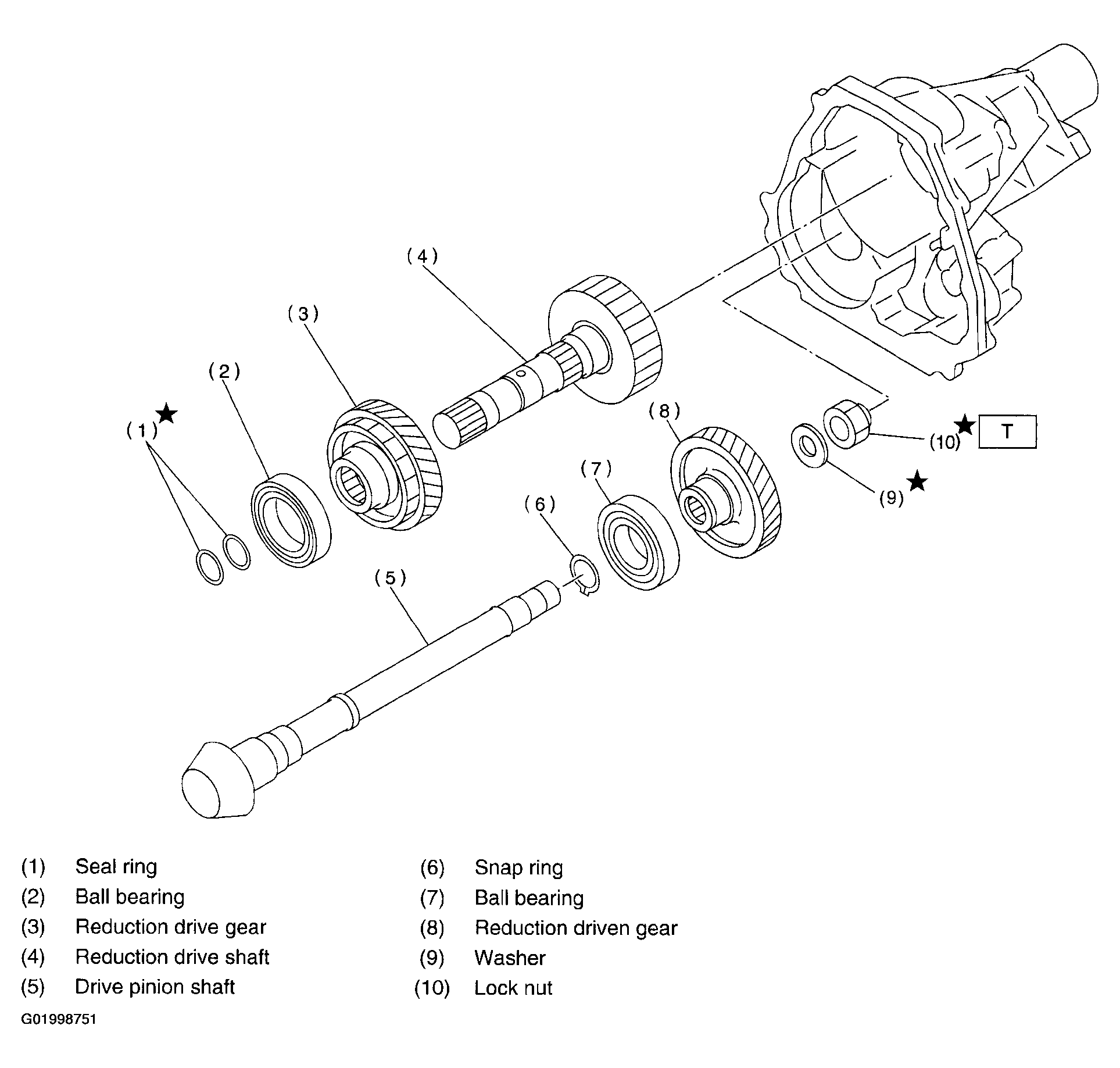

Fig 1: Identifying Reduction Gear (MPT) Components
G01998751Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

  1. T:  100 (10.2, 73.8)
