Oil Pump

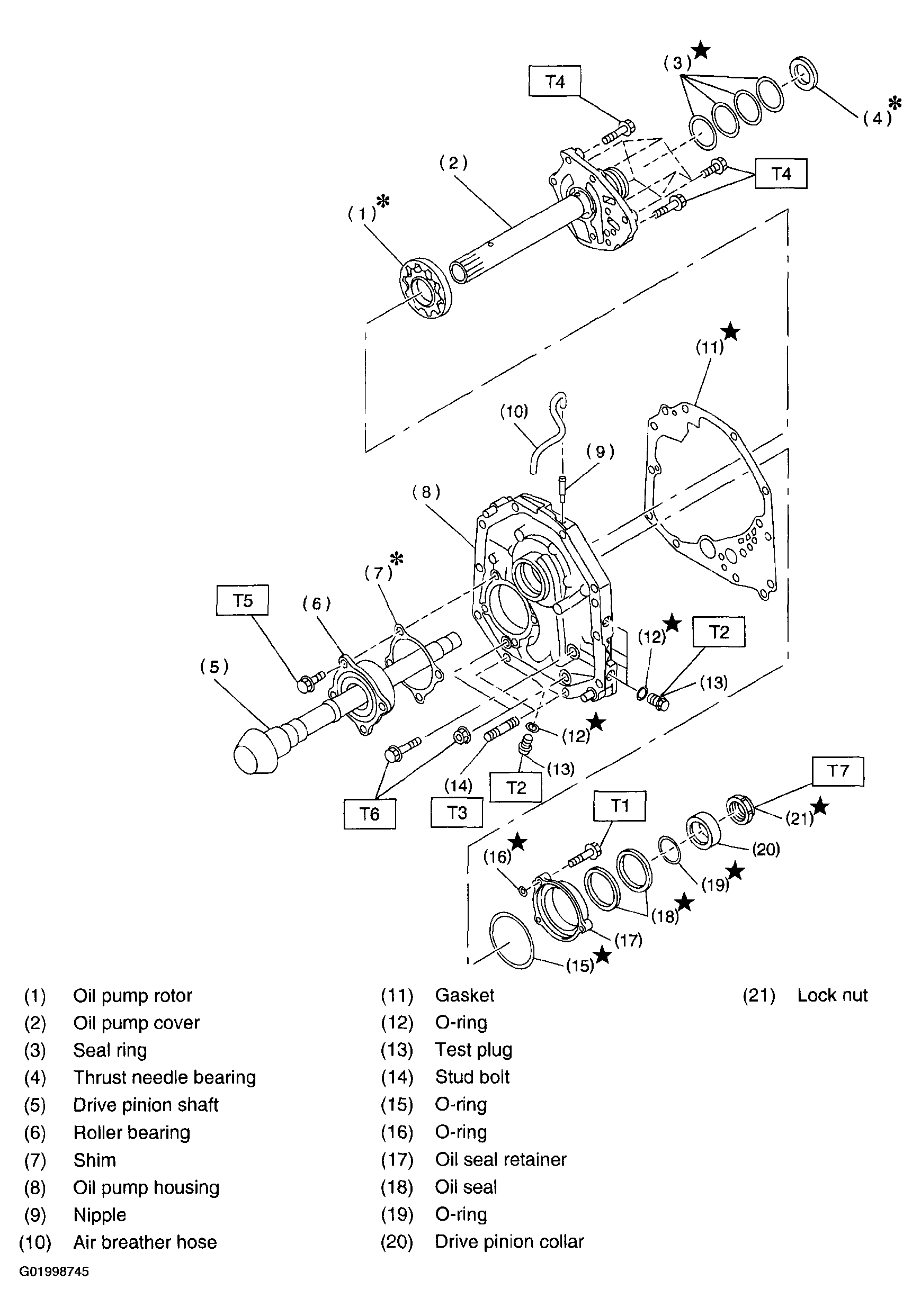

Fig 1: Identifying Oil Pump Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

1. T1:  7 (0.7, 5.1)
2. T2:  13 (1.3, 9.4)
3. T3:  18 (1.8, 13.0)
4. T4:  25 (2.5, 18.1)
5. T5:  40 (4.1, 30)
6. T6:  42 (4.3, 31)
7. T7:  116 (11.8, 85)
