Differential Gear

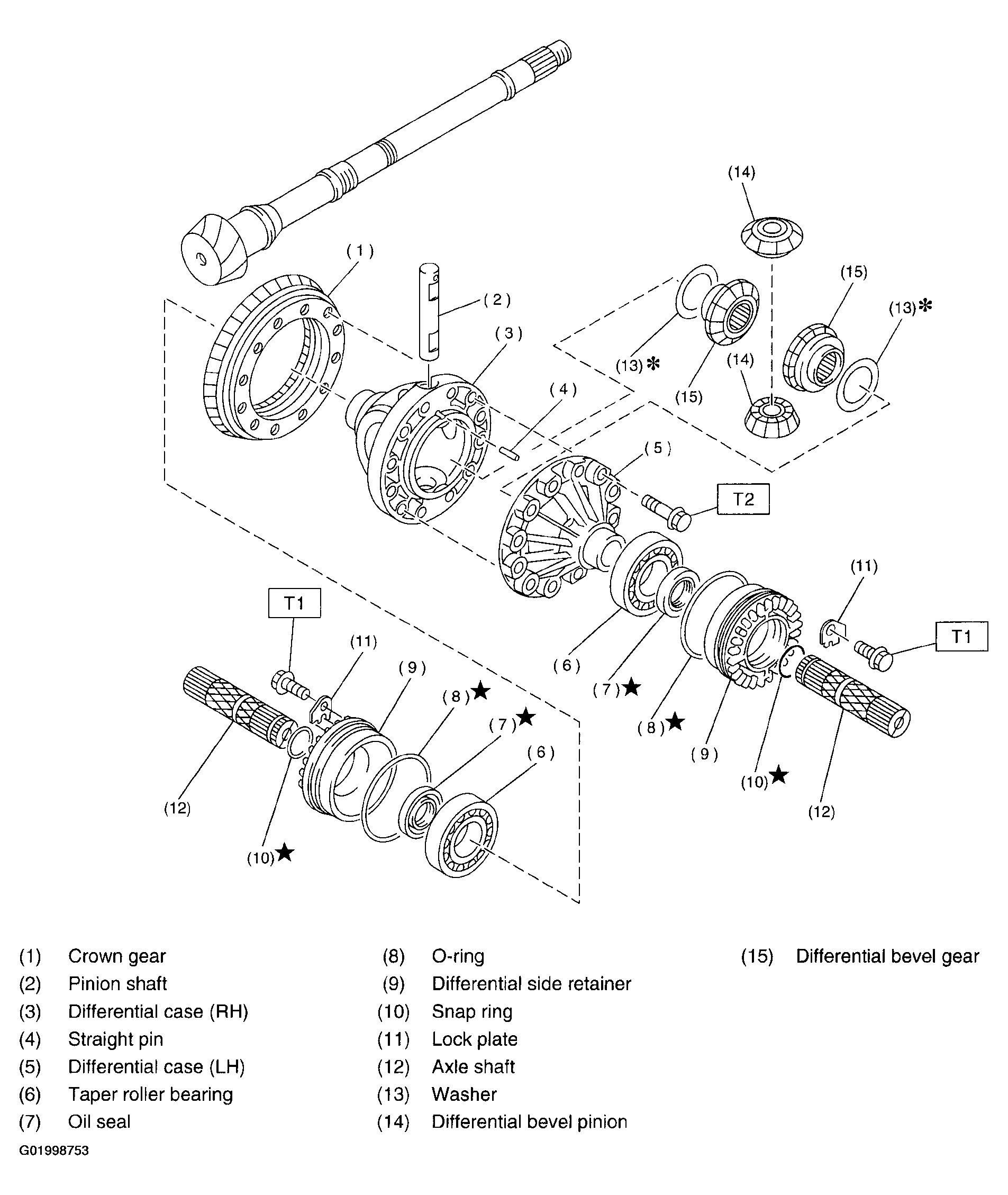

Fig 1: Identifying Differential Gear Components
G01998753Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

  1. T1:  25 (2.5, 18.1)
  2. T2:  65 (6.3, 45.6)
