Center Differential Carrier: Disassembly

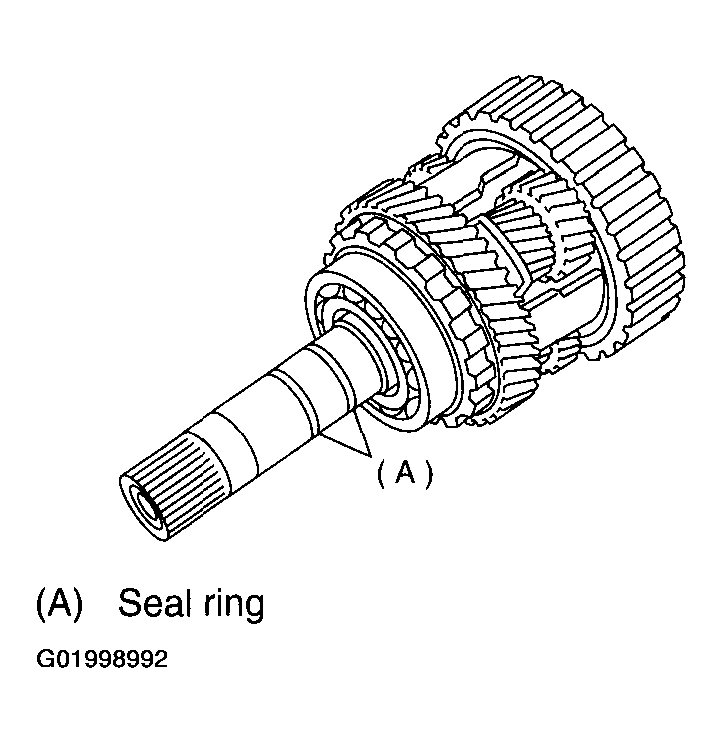

Remove the seal ring.

Fig 1: Removing Seal Ring
Courtesy of SUBARU OF AMERICA, INC.

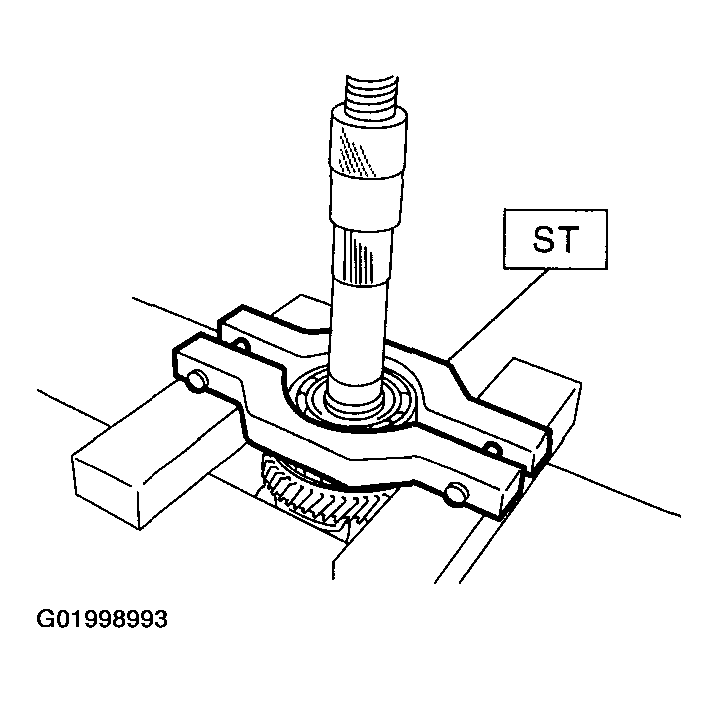

Using a press and ST, remove the ball bearing.
ST 498077600 REMOVER

Fig 2: Removing Ball Bearing Using Press & ST
Courtesy of SUBARU OF AMERICA, INC.

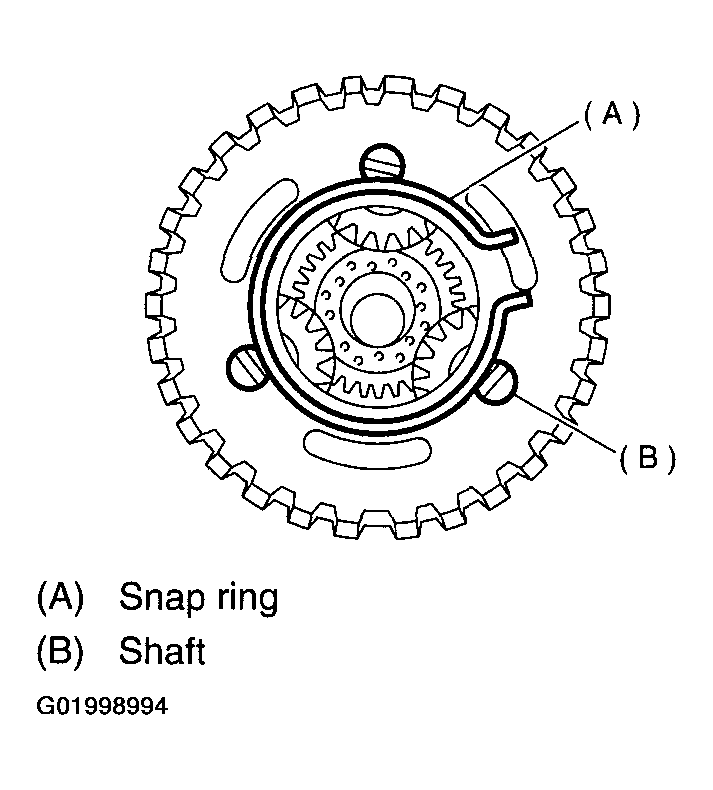

Remove the snap ring and extract the shaft from the center differential assembly.

Fig 3: Removing Snap Ring & Shaft From Center Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.

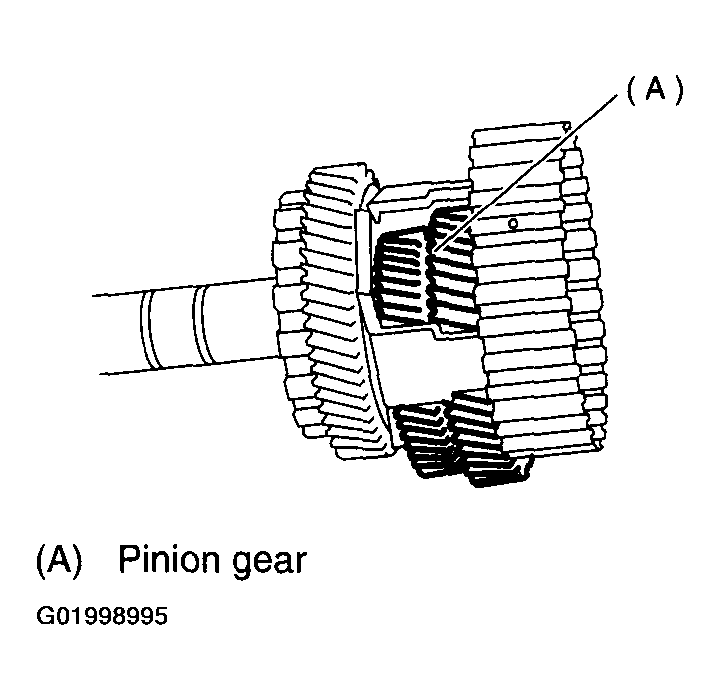

Remove thrust washer, pinion gear and washer from the center differential assembly.

Fig 4: Removing Thrust Washer, Pinion Gear & Washer
Courtesy of SUBARU OF AMERICA, INC.
Extract the intermediate shaft and thrust bearing.
