Automatic Transmission - Mechanism & Function
>>
ELECTROHYDRAULIC Control System
>>
Output Signals
Output Signals

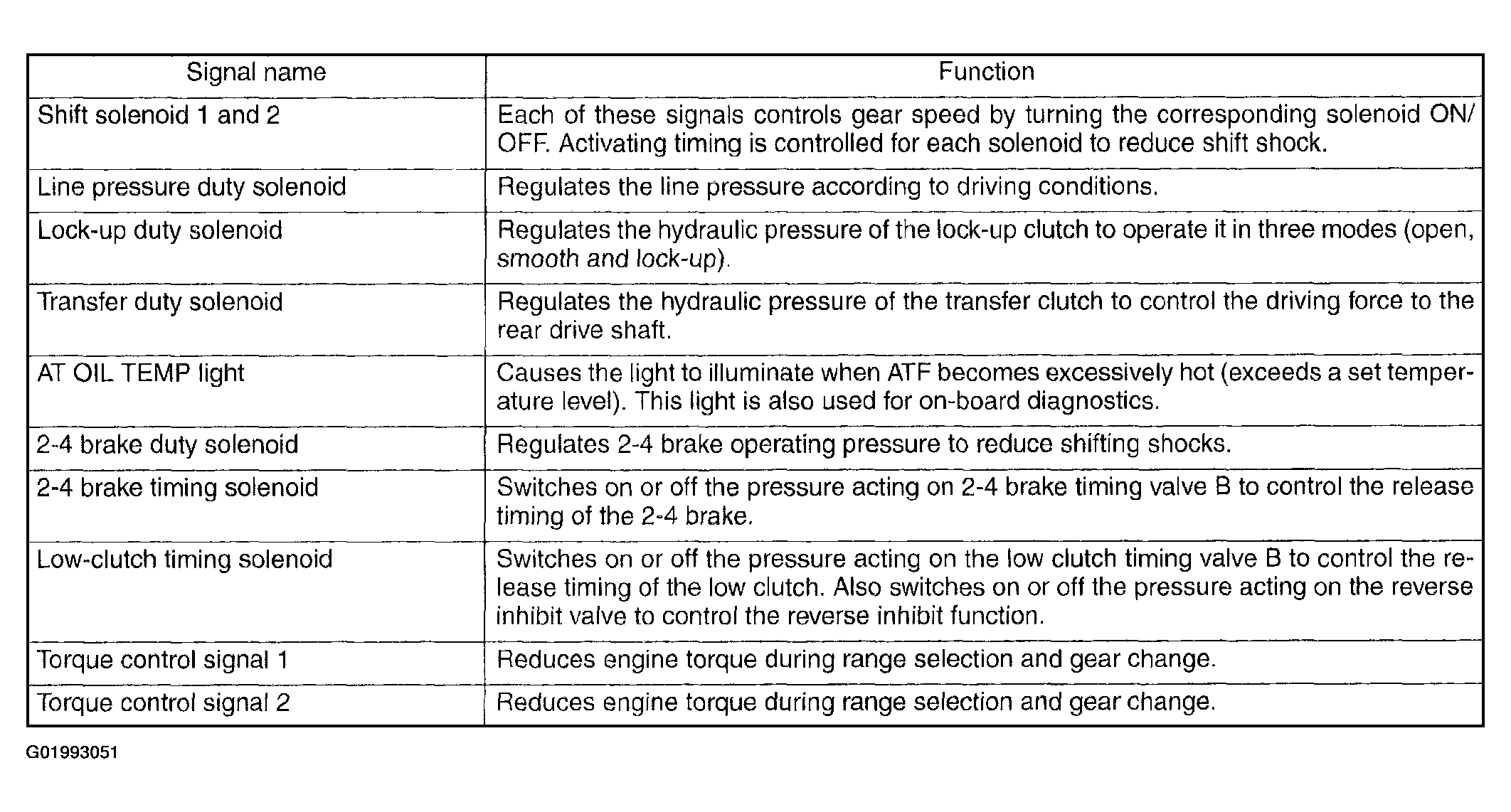

Fig 1: Electrohydraulic Control System Output Signals Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
