M/T Gear Shift Lever: Inspection

1. Check each part (bushing, cushion rubber, spacer, boot, stay and rod, etc.) for deformation, damage and wear. Repair or replace any defective part. Determine defective parts by comparing with new parts.

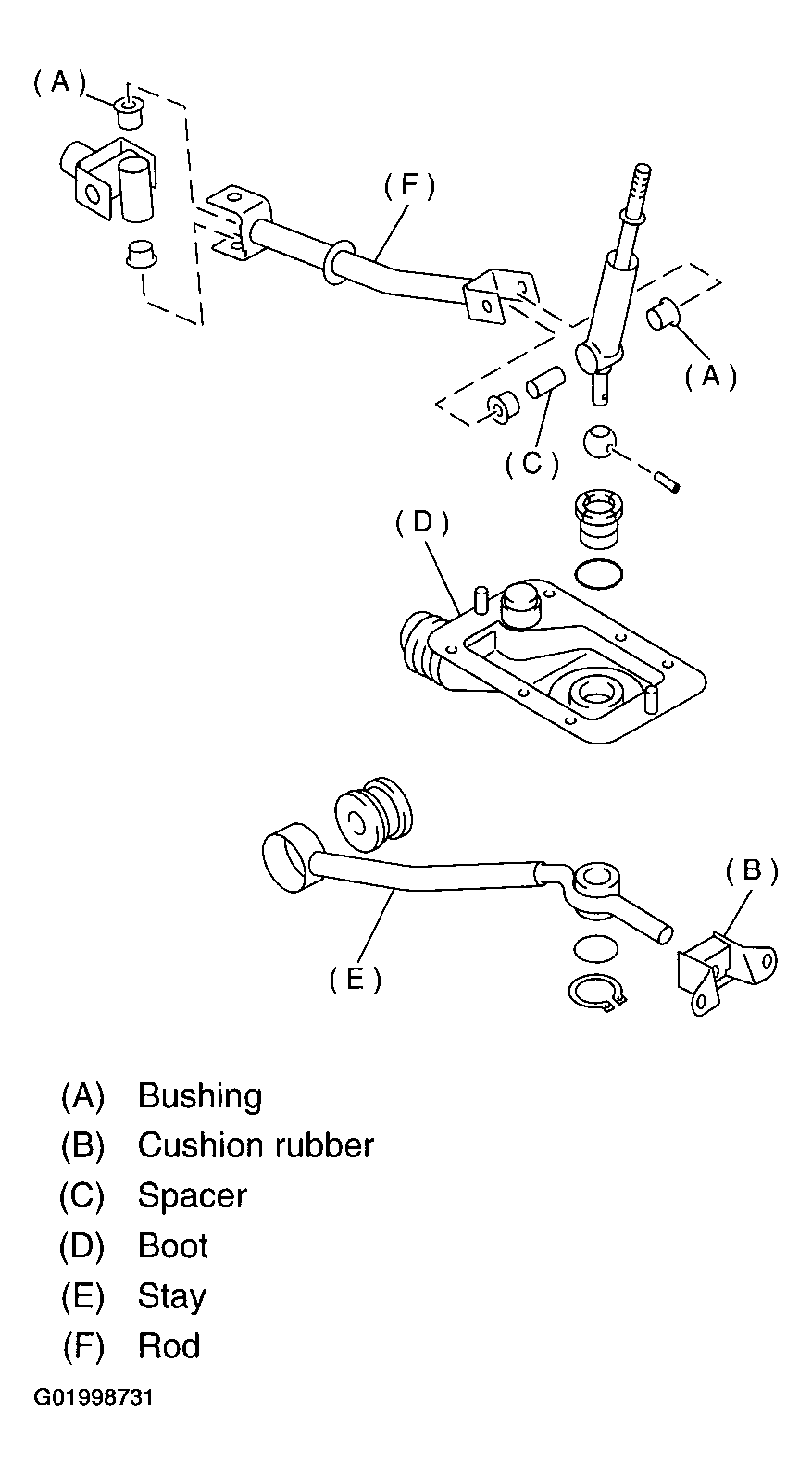

   Fig 1: Checking Each Part For Deformation, Damage & Wear

   Courtesy of SUBARU OF AMERICA, INC.
2. Check the swing torque of the rod in relation of the gear shift lever.

If the torque exceeds the specification, replace the bushing or retighten nuts.

Swing torque:  0.7 N.m (0.07 kgf-m, 0.5 ft-lb) or less

Fig 2: Checking Swing Torque Of Rod In Relation Of Gear Shift Lever

Courtesy of SUBARU OF AMERICA, INC.
