M/T Gear Shift Lever: Disassembly

Disassemble the locking wire.

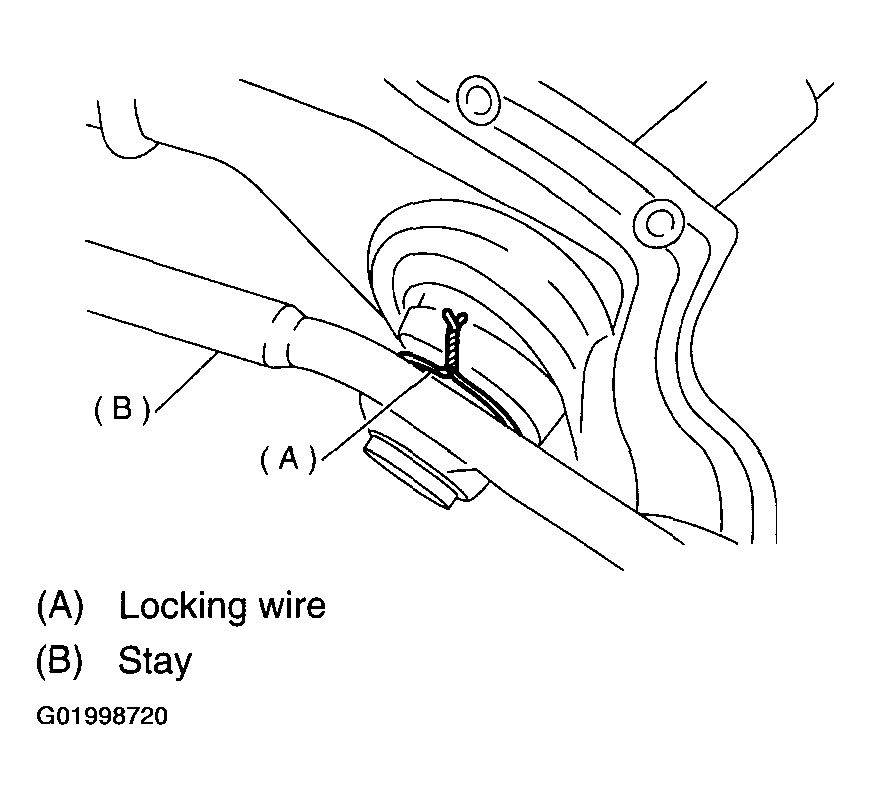

Fig 1: Disassembling Locking Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

Fig 2: Removing Rod From Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from bushing B, then disconnect the stay.

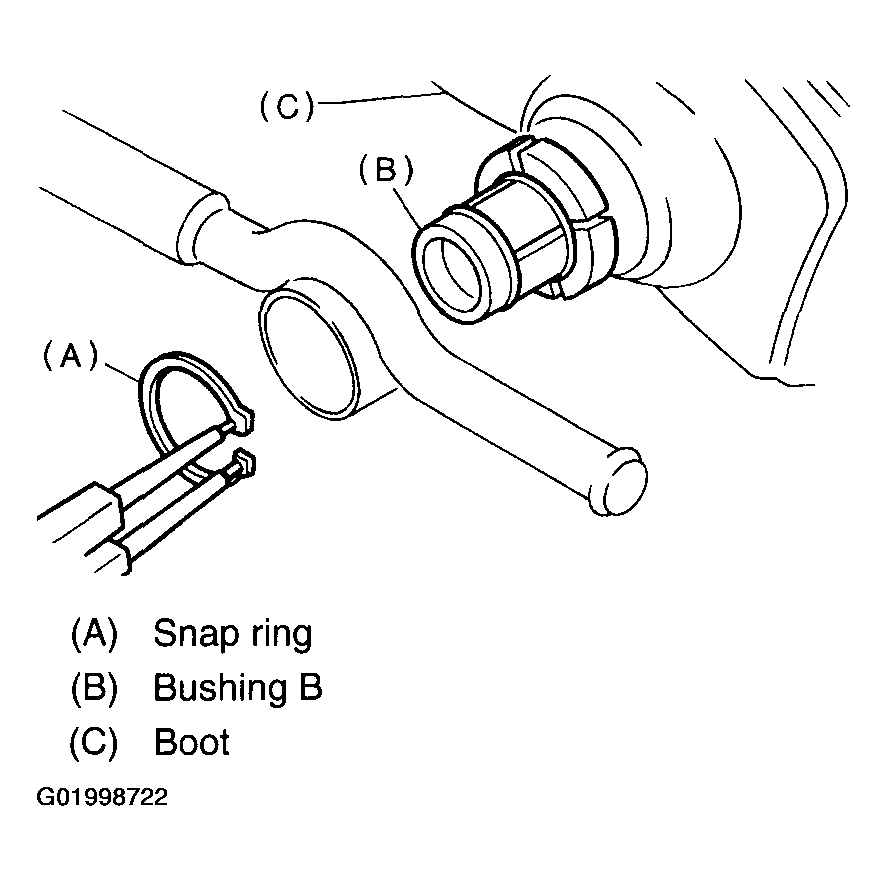

Fig 3: Removing Snap Ring From Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bushing and cushion rubber from stay.

Fig 4: Removing Bushing & Cushion Rubber From Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring, then disconnect the bushing D.

Fig 5: Removing O-Ring & Disconnect The Bushing D
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, then remove the bushing A from gear shift lever.

Fig 6: Drawing Out The Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
