Poor Ride Comfort

  1. Large rebound shock
  2. Rocking of vehicle continues too long after running over bump and/or hump.
  3. Large shock in bumping

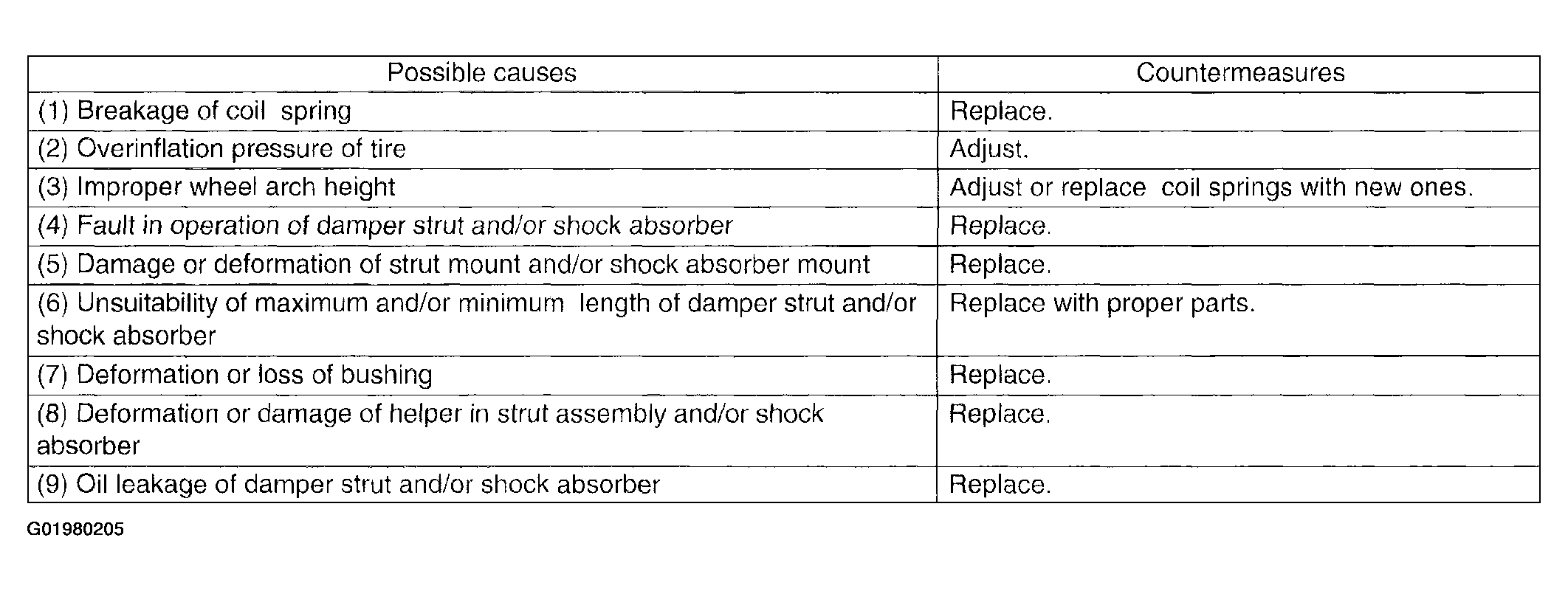

    Fig 1: Poor Ride Comfort Chart
    G01980205Courtesy of SUBARU OF AMERICA, INC.
