Rear Suspension

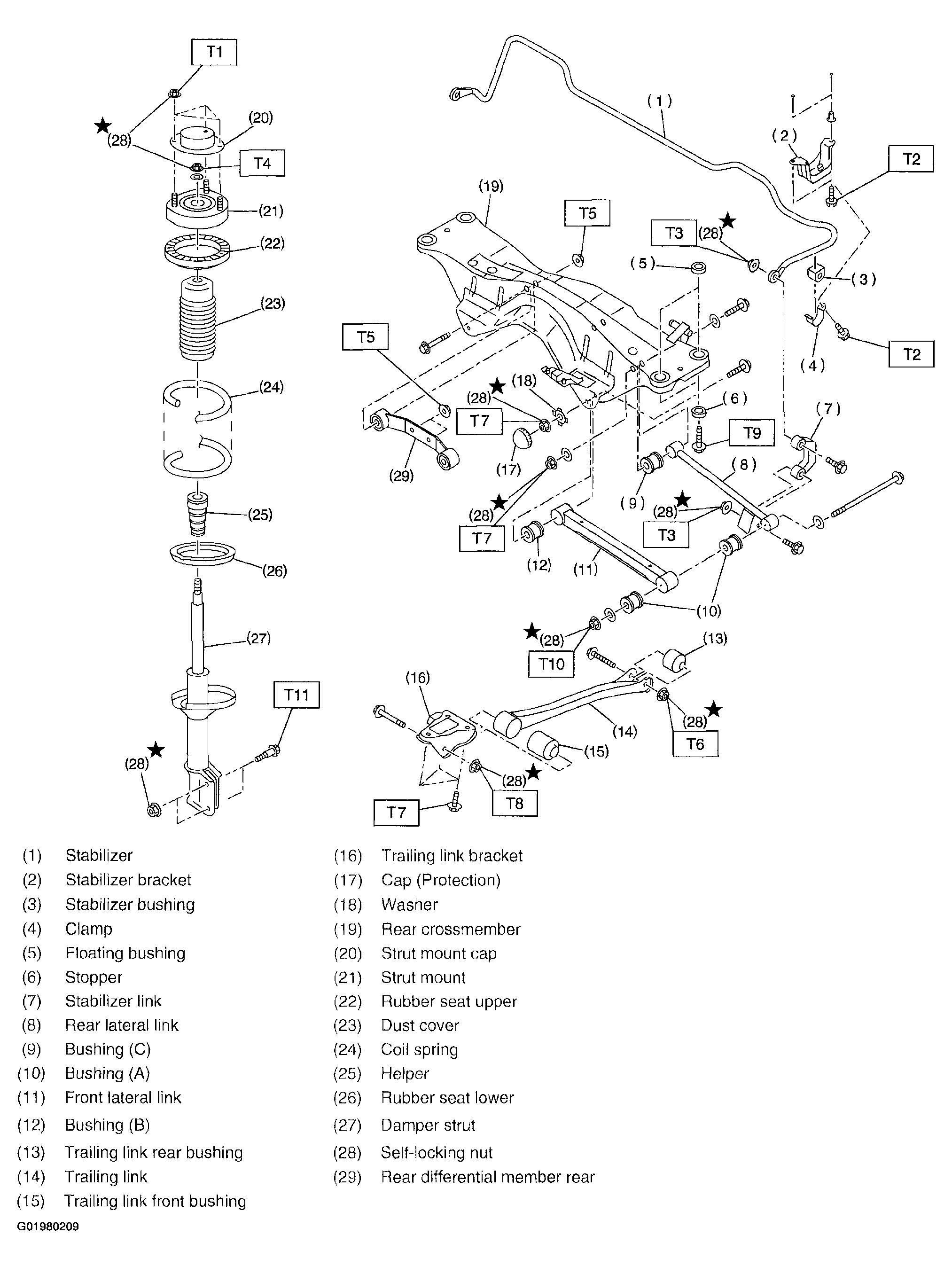

Fig 1: Identifying Rear Suspension Components
G01980209Courtesy of SUBARU OF AMERICA, INC.
  1. Tightening torque:N.m(Kgf-m,ft-lb)
    1. T1:  20 (2.0,14.5)
    2. T2:  25 (2.5,18.1)
    3. T3:  45 (4.6,33.2)
    4. T4:  55 (5.6,41)
    5. T5:  70 (7.1,52)
    6. T6:  90 (9.2,66)
    7. T7:  100 (10.2,74)
    8. T8:  115 (11.7,85)
    9. T9:  130 (13.3,96)
    10. T10:  135 (13.8,100)
    11. T11:  220 (22.4,162)
