Read Current Data

NOTE: For detailed operation procedures, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
  1. On the << Main Menu >> display screen, select {Each System Check} and press the [YES] key.
  2. On the << System Selection Menu >> display screen, select {Brake Control System} and press the [YES] key.
  3. Press the [YES] key after the ABS type information is displayed.
  4. On the << Brake Control Diagnosis >> display screen, select {Current Data Display & Save} and press the [YES] key.
  5. On the << Data Display Menu >> display screen, select {Data Display} and press the [YES] key.
  6. Using the scroll key, move the display screen up or down until desired data is shown.
    • A list of the support data is shown in the following table.

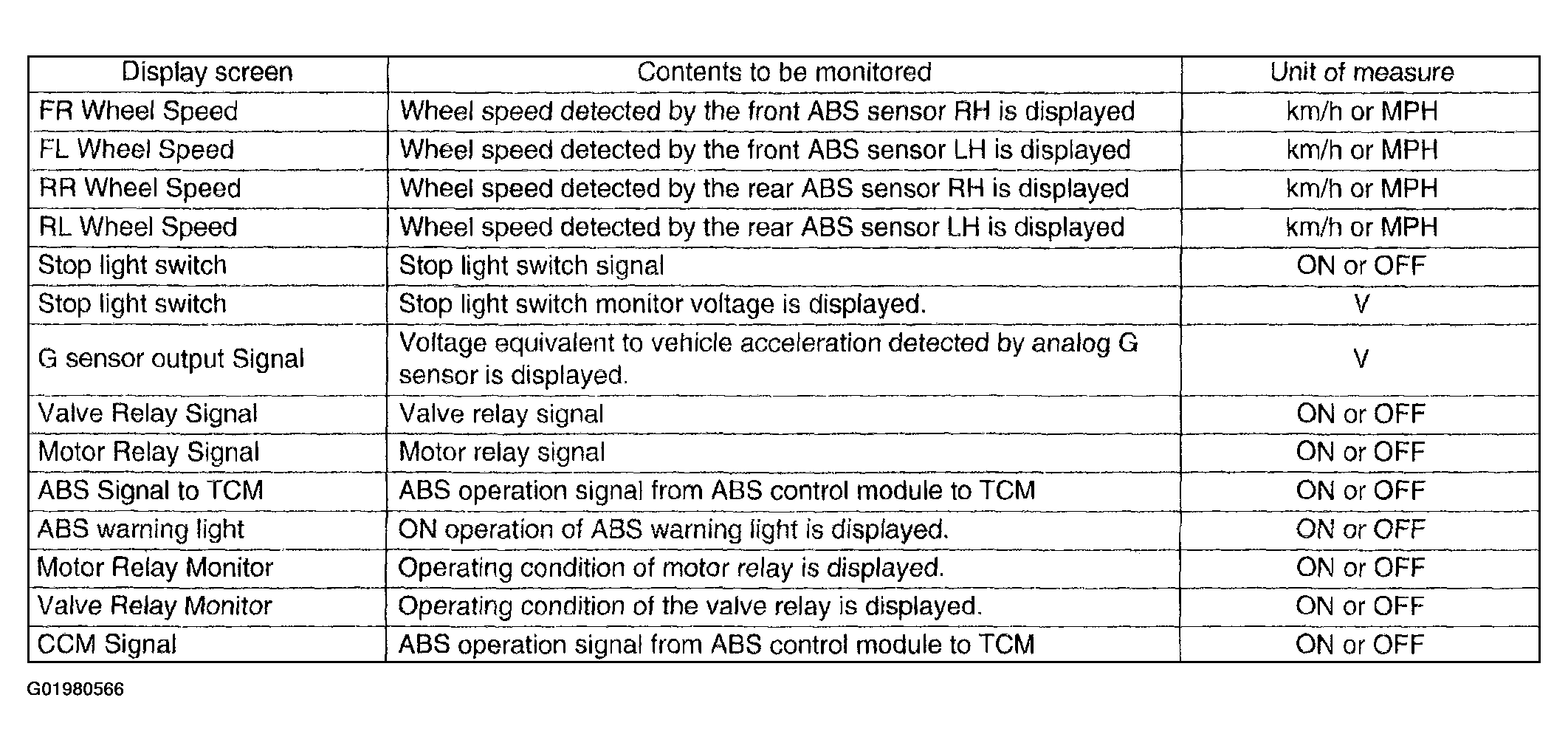

    Fig 1: Support Data Chart
    G01980566Courtesy of SUBARU OF AMERICA, INC.
