Clear Memory Mode

NOTE: For detailed operation procedures, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
  1. On the << Main Menu >> display screen, select {2. Each System Check} and press the [YES] key.
  2. On the << System Select Menu >> display screen, select {Brake System} and press the [YES] key.
  3. Press the [YES] key after engine type information is displayed.
  4. On the << Brake Control Diagnosis >> display screen, select {Clear Memory} and press the [YES] key.

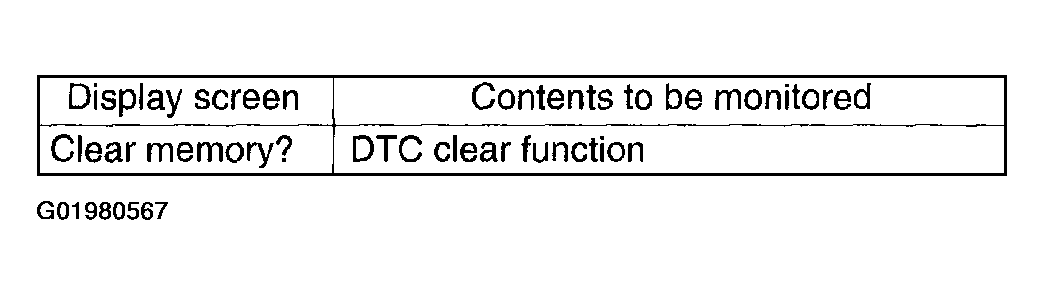

    Fig 1: Clear Memory Chart
    G01980567Courtesy of SUBARU OF AMERICA, INC.
  5. When "Done" and "turn ignition switch to OFF" are shown on the display screen, turn the Subaru Select Monitor and ignition switch to OFF.
