Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Diagnostics) >> General Diagnostics Table >> Inspection

General Diagnostics Table: Inspection

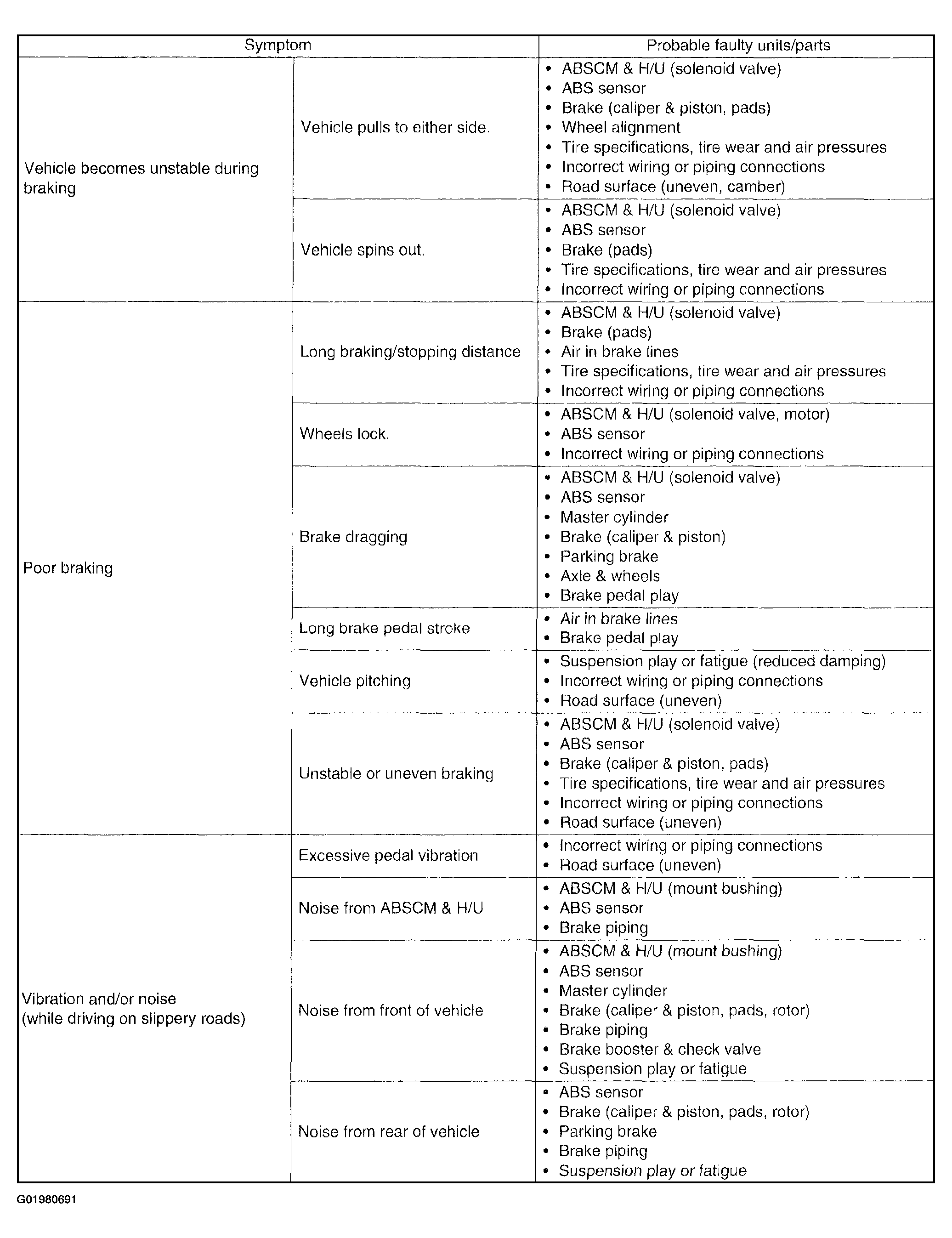

Fig 1: General Diagnostic Inspection Table

G01980691

Courtesy of SUBARU OF AMERICA, INC.
