With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.

NOTE:

To check the harness for broken wires or short circuits, shake the doubtful area or the connector.
Check list for interview, see CHECK LIST FOR INTERVIEW .

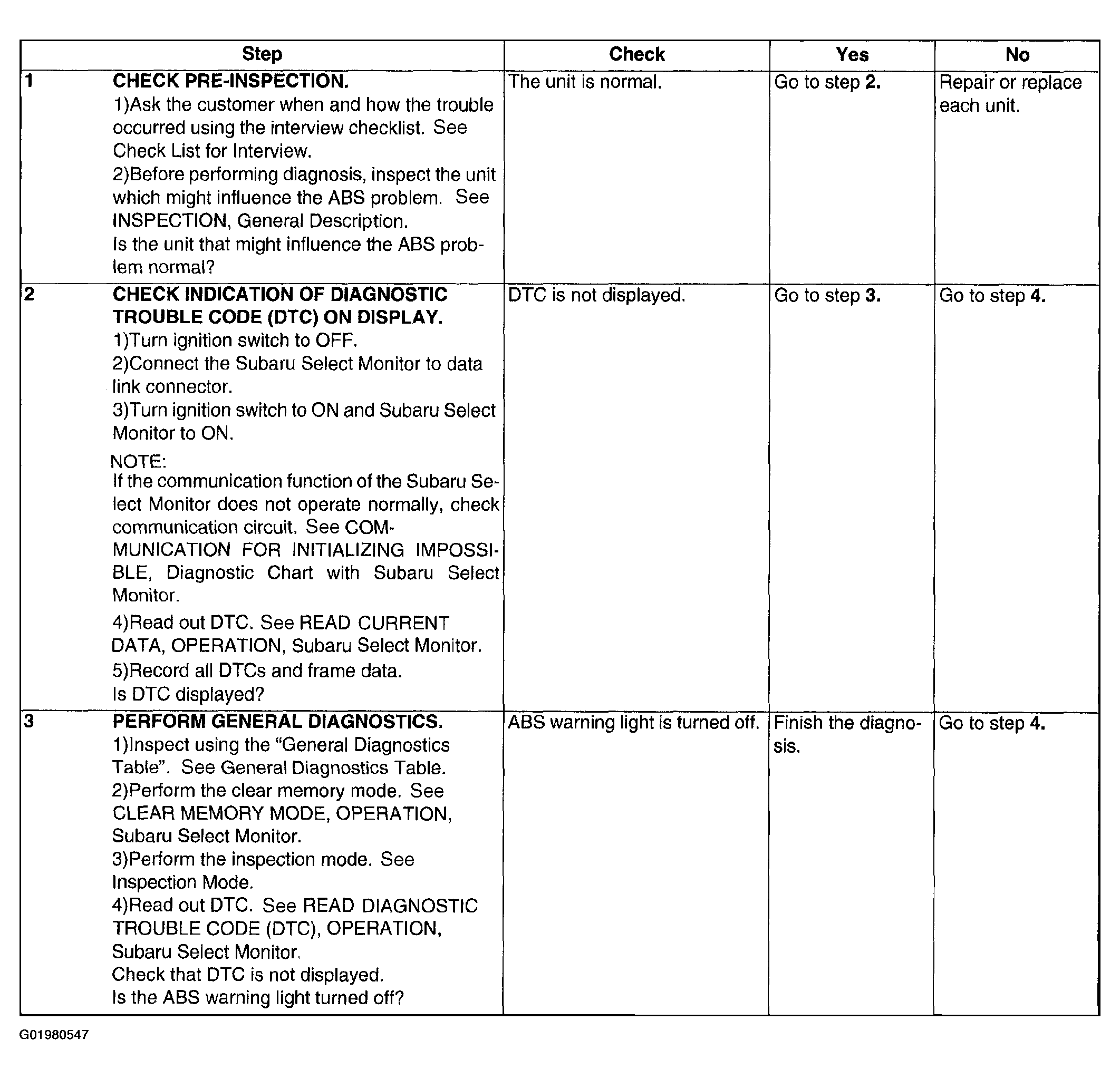

Fig 1: ABS Diagnostic Procedure With Subaru Select Monitor (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

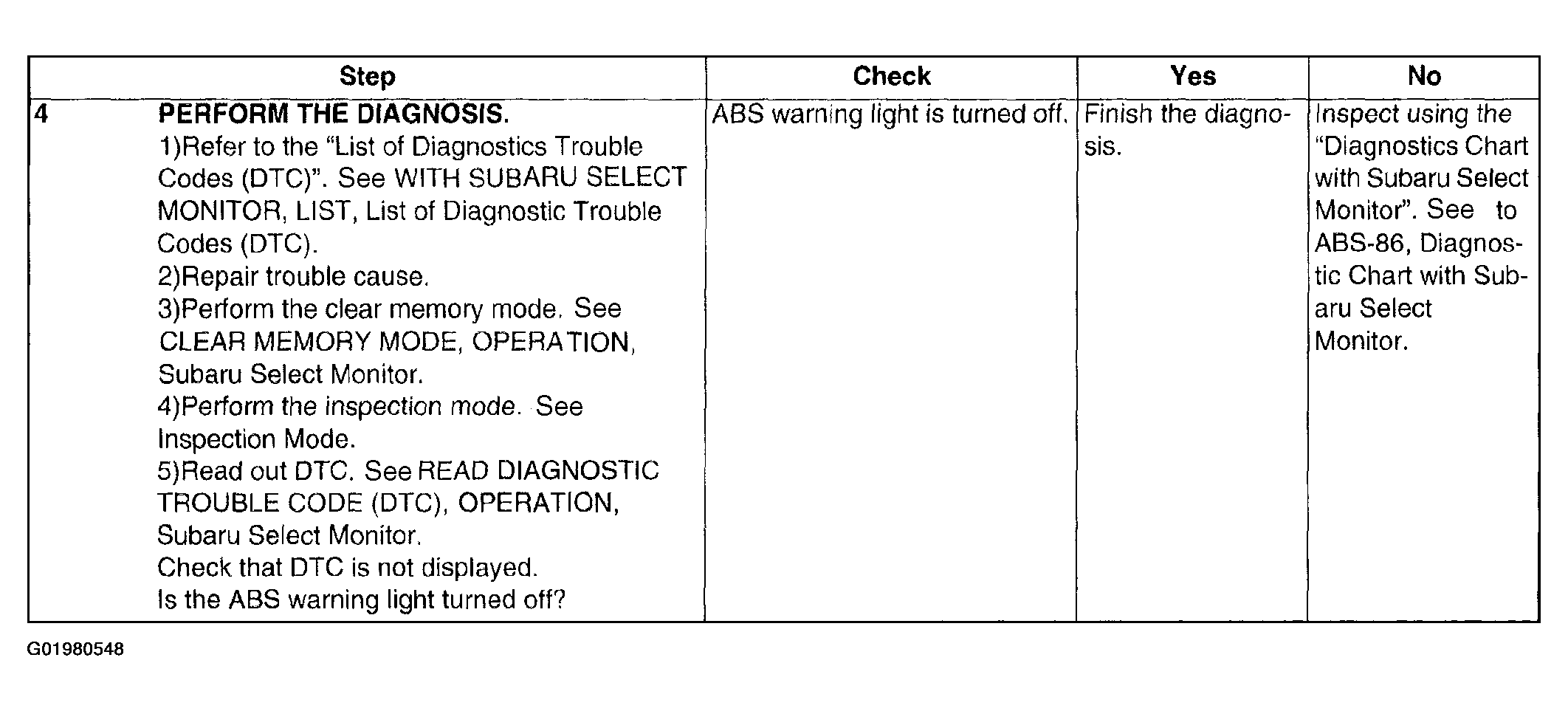

Fig 2: ABS Diagnostic Procedure With Subaru Select Monitor (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
