DTC 41: Abs Control Module Malfunction: Wiring Diagram

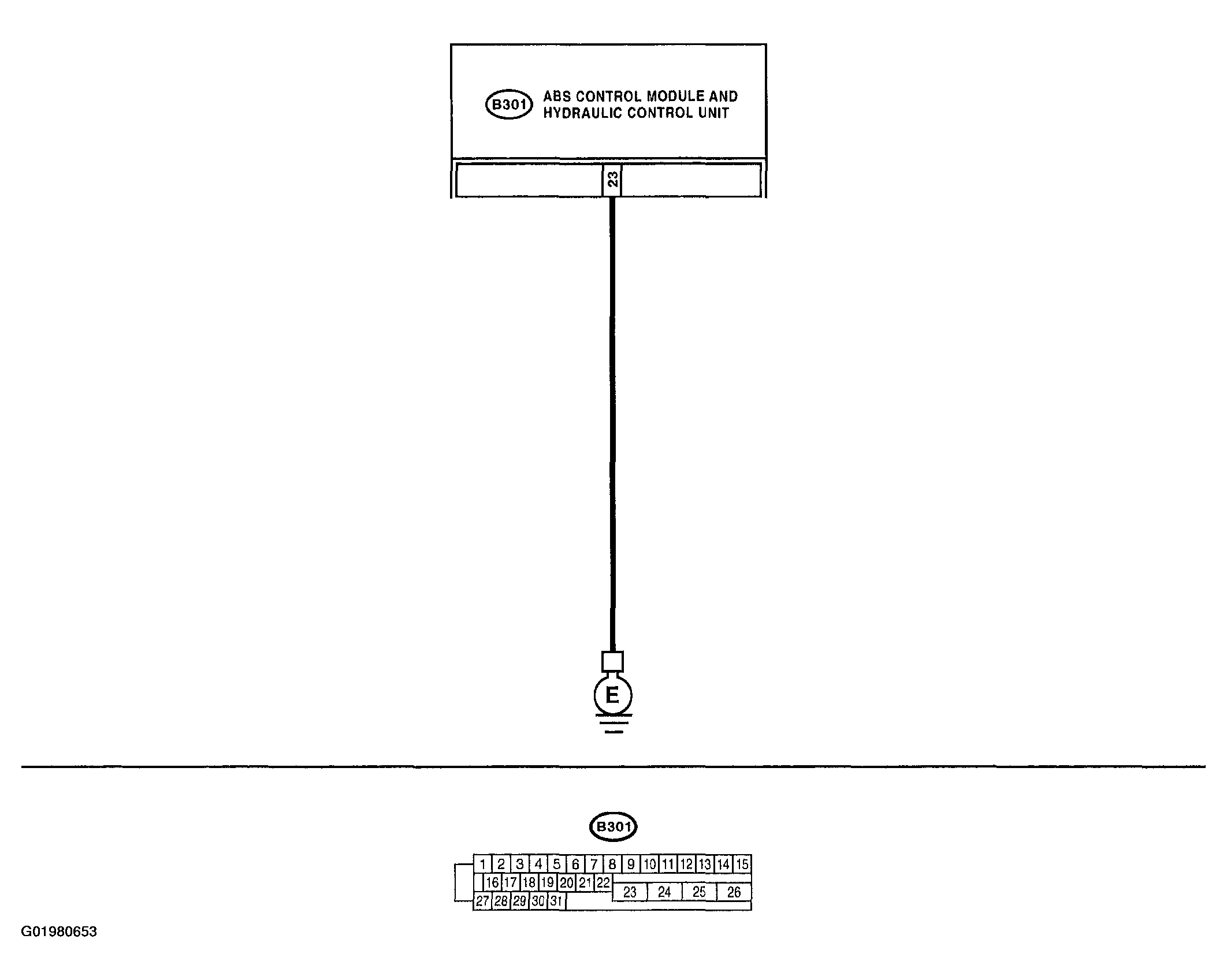

Fig 1: Wiring Diagram - ABS Control Module Malfunction

G01980653

Courtesy of SUBARU OF AMERICA, INC.
