Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System (Diagnostics) >> Diagnostic Chart With SUBARU Select Monitor >> DTC 41: Abs Control Module Malfunction >> Diagnostics Chart

Diagnostics Chart

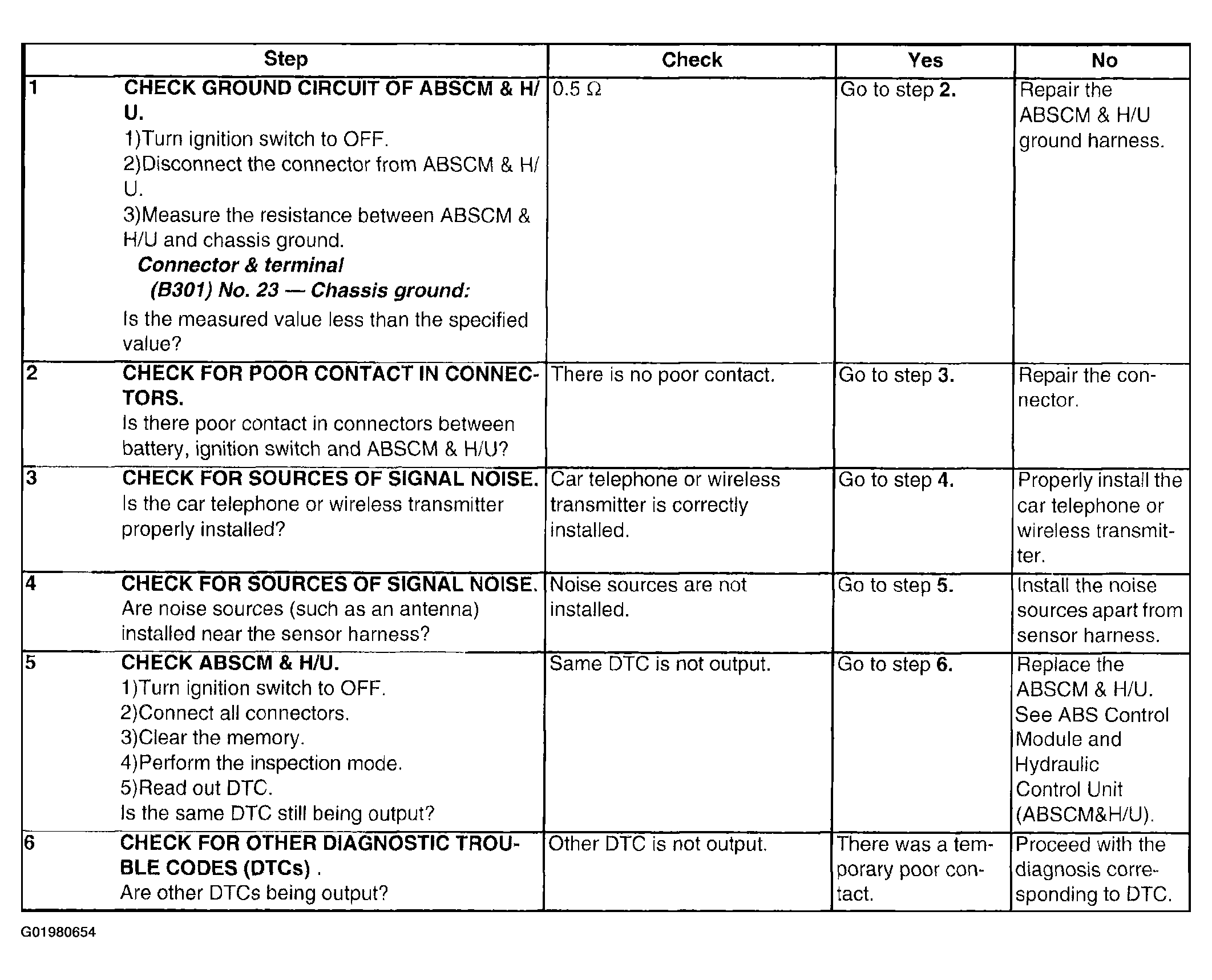

Fig 1: Diagnostic Chart With Subaru Select Monitor - Code 41 - ABS Control Module Malfunction
G01980654Courtesy of SUBARU OF AMERICA, INC.
