Diagnostics Chart

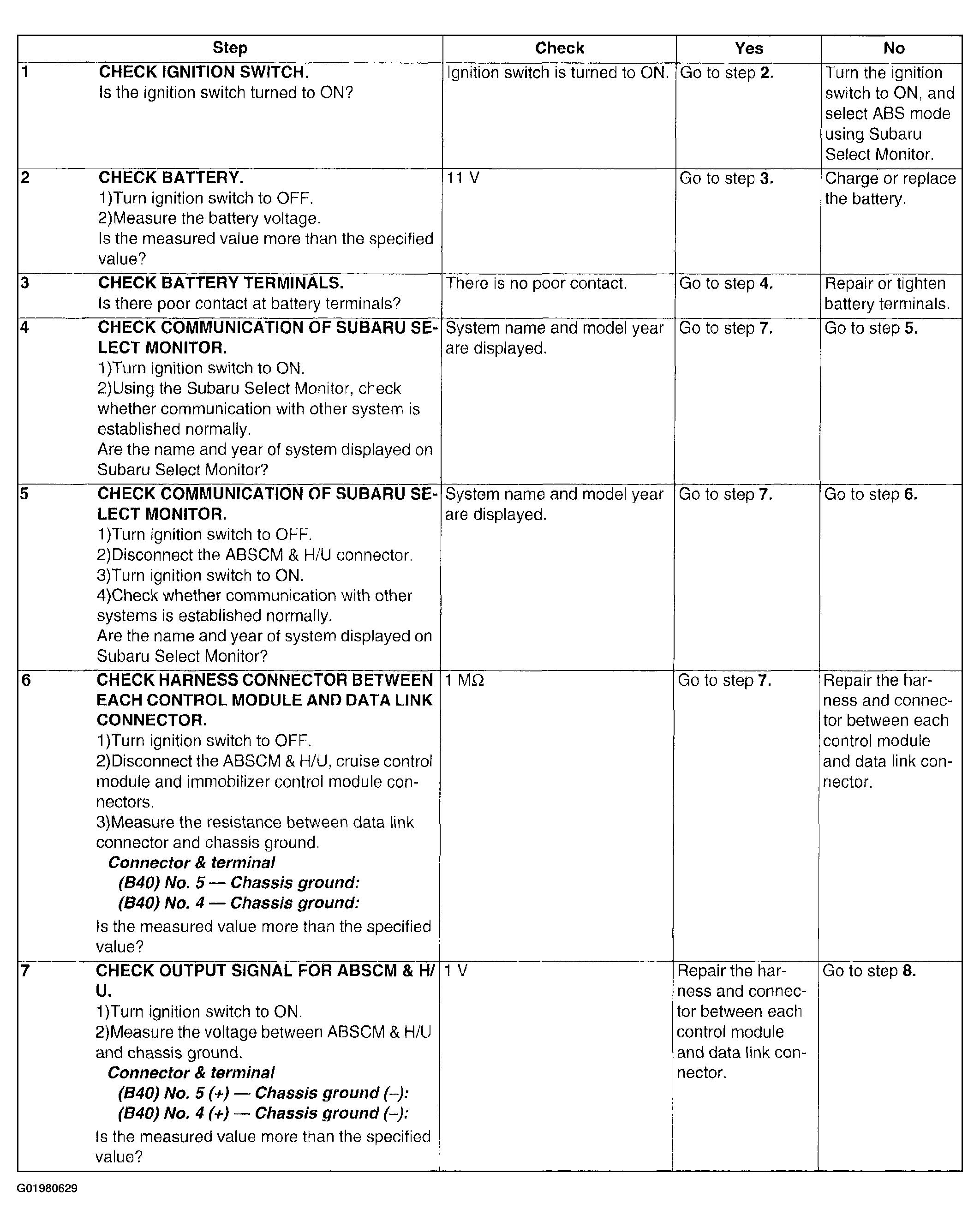

Fig 1: Diagnostic Chart With Subaru Select Monitor - Communication For Initializing Impossible (1 Of 3)
G01980629Courtesy of SUBARU OF AMERICA, INC.

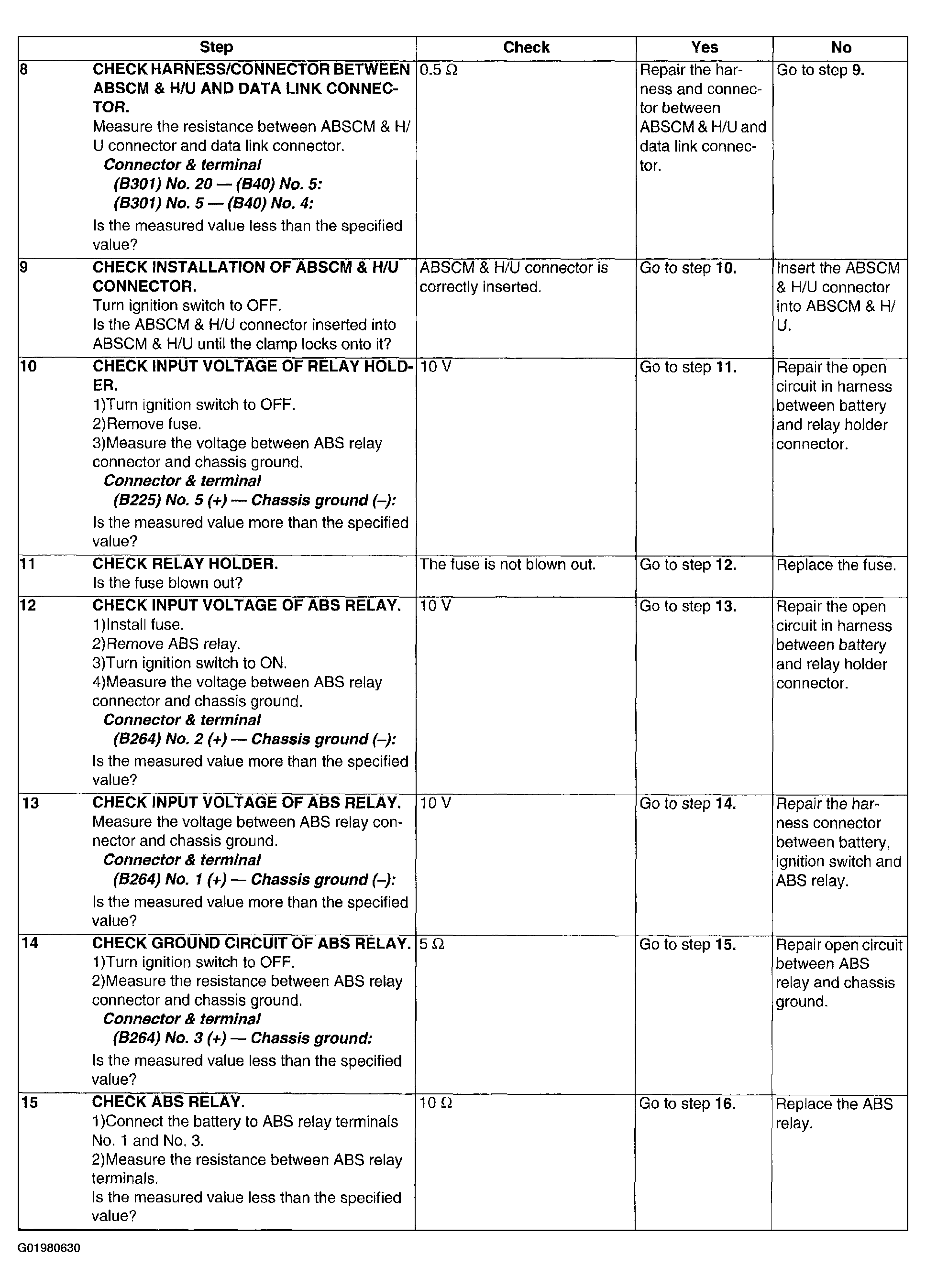

Fig 2: Diagnostic Chart With Subaru Select Monitor - Communication For Initializing Impossible (2 Of 3)
G01980630Courtesy of SUBARU OF AMERICA, INC.

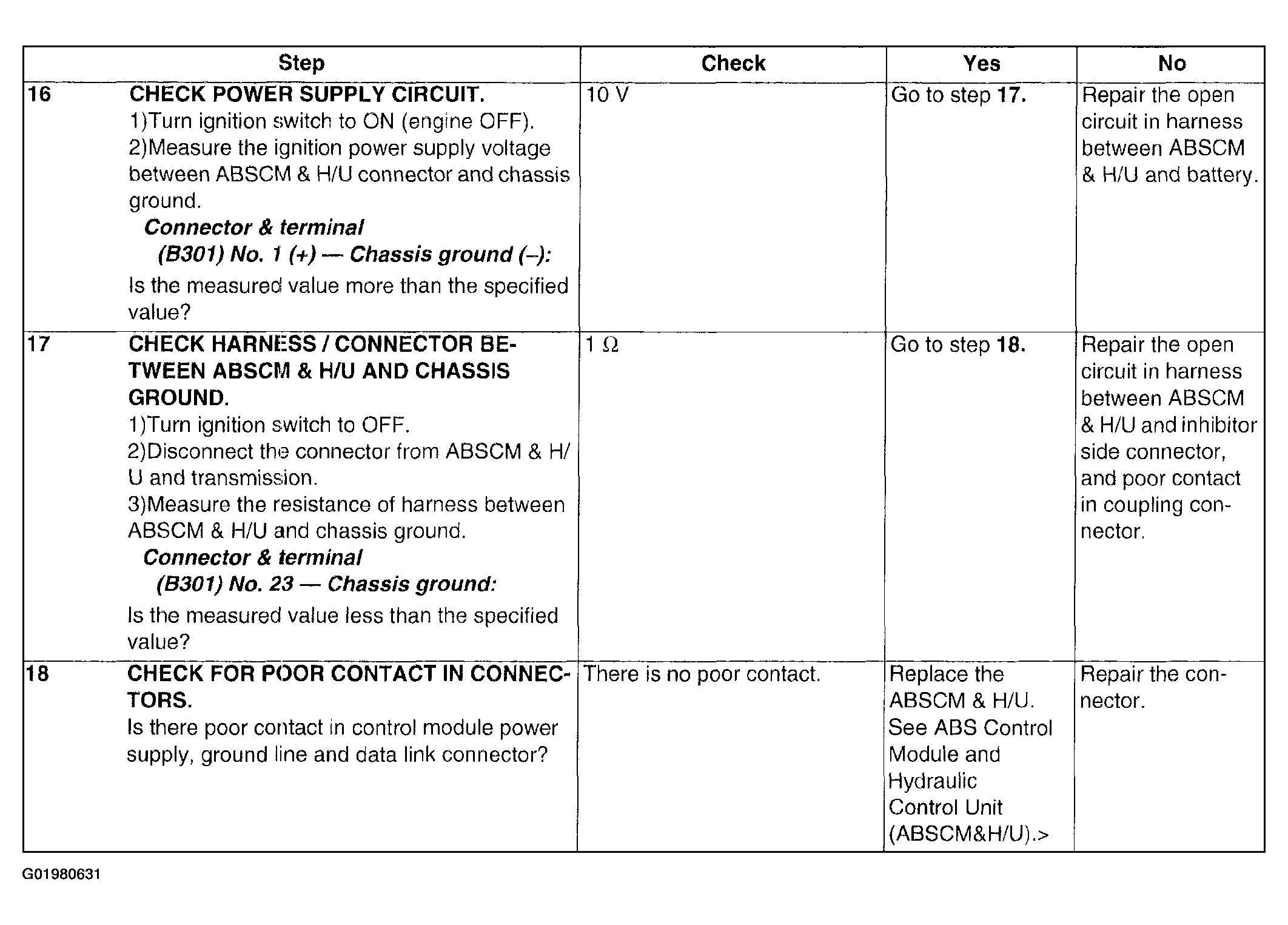

Fig 3: Diagnostic Chart With Subaru Select Monitor - Communication For Initializing Impossible (3 Of 3)
G01980631Courtesy of SUBARU OF AMERICA, INC.
