Without SUBARU Select Monitor

After reading DTCs, disconnect the diagnosis connector terminal No. 6 from diagnosis terminal.

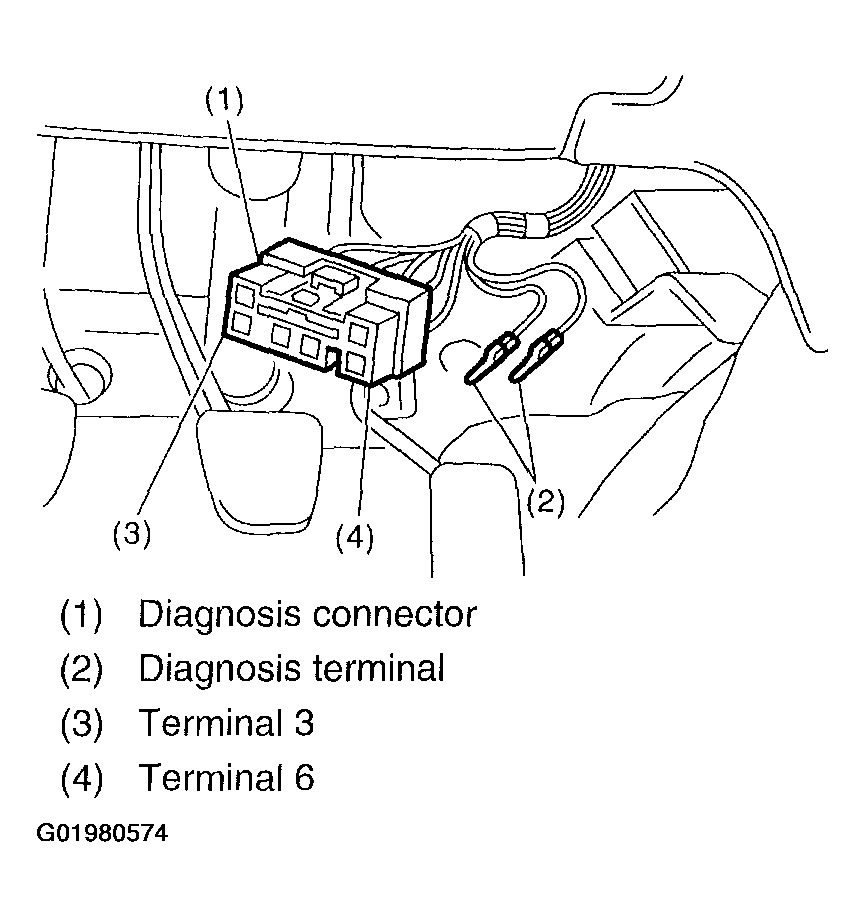

Fig 1: Disconnecting Diagnosis Connector Terminal No. 6 From Diagnosis Terminal
Courtesy of SUBARU OF AMERICA, INC.
Repeat 3 times within approximately 12 seconds; connecting and disconnecting terminal No. 6 and diagnosis terminal for at least 0.2 seconds each time.

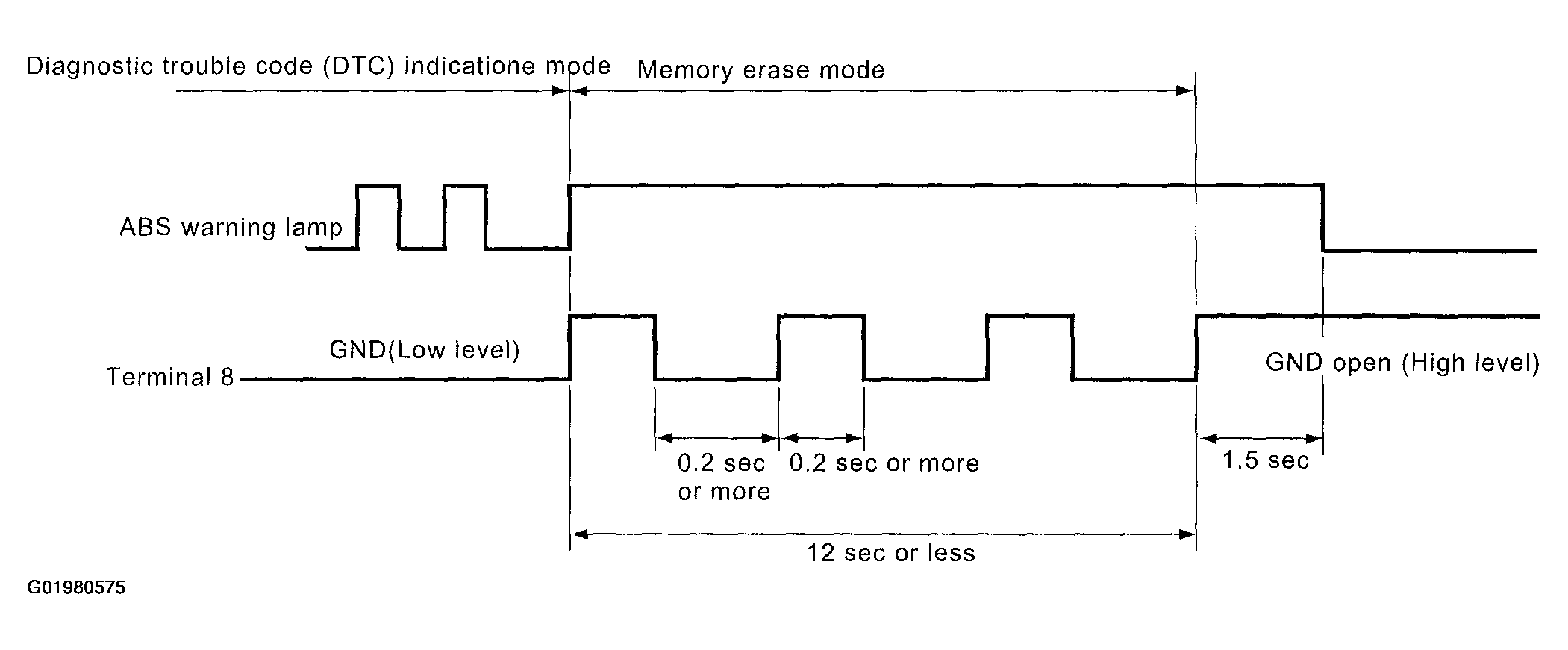

Fig 2: Example Of Trouble Code Indication Mode (Memory Erase Mode)
Courtesy of SUBARU OF AMERICA, INC.

NOTE: After the diagnostics is completed, make sure to clear memory. Make sure only start code (11) is shown after memory is cleared.
