Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> General Description >> Component >> Front Bumper

Front Bumper

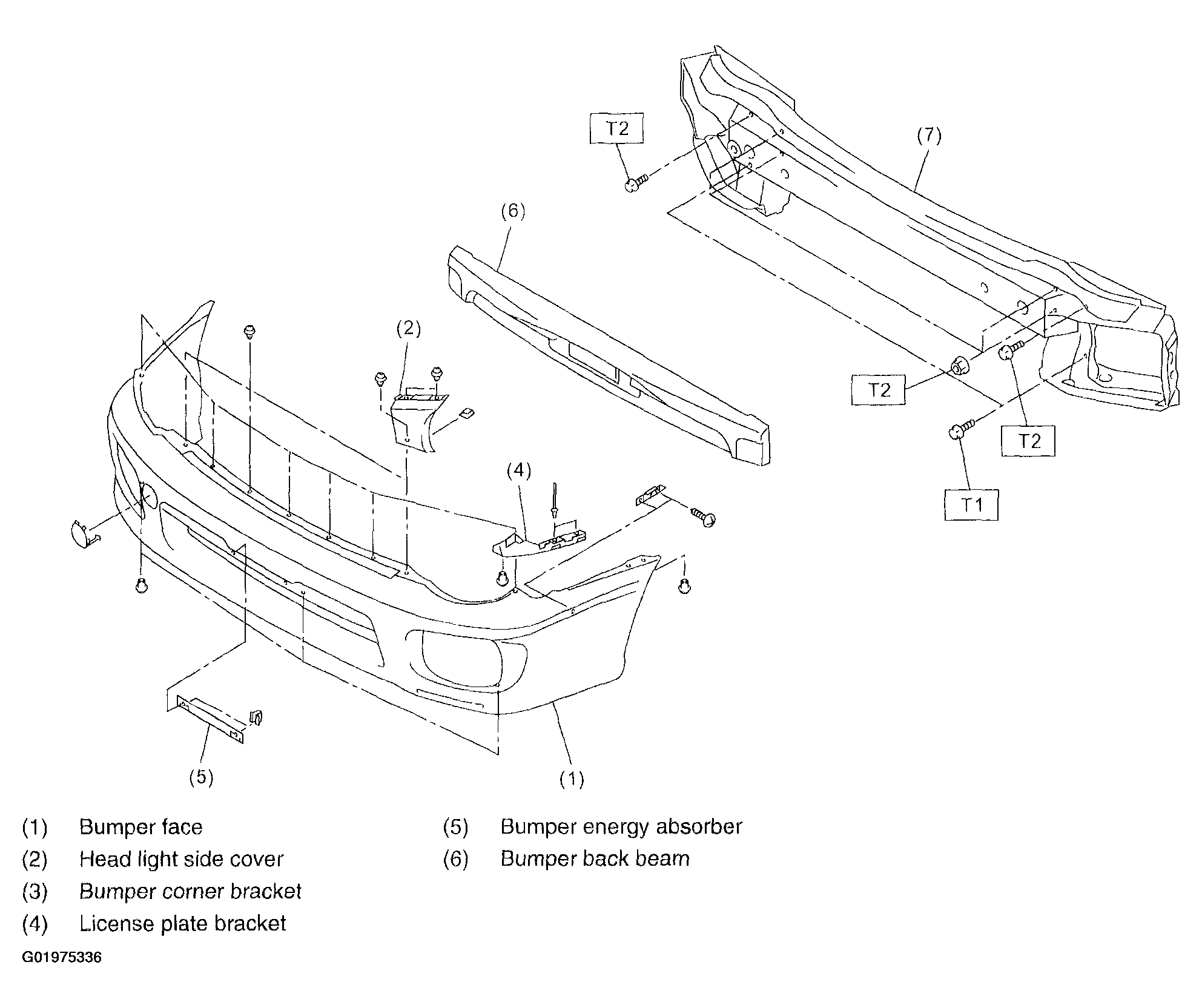

Fig 1: Identifying Front Bumper
G01975336Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

  1. T1:  32 (3.3, 24)
  2. T2:  69 (7.0, 51)
