Cruise Control System - Diagnostics
>>
Diagnostics Chart With Symptom
>>
Symptom Chart
Symptom Chart

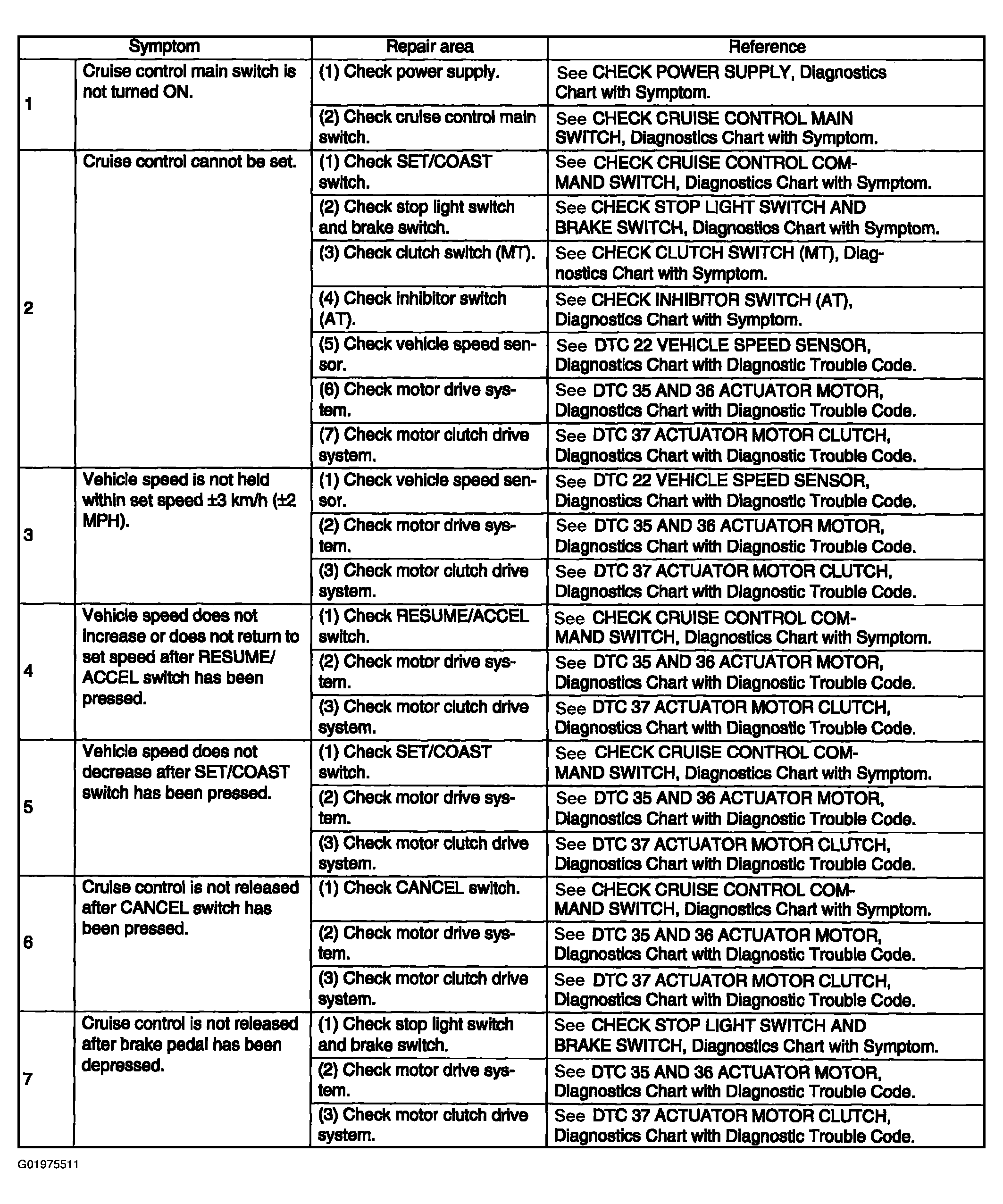

Fig 1: Diagnostics Chart With Symptom (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

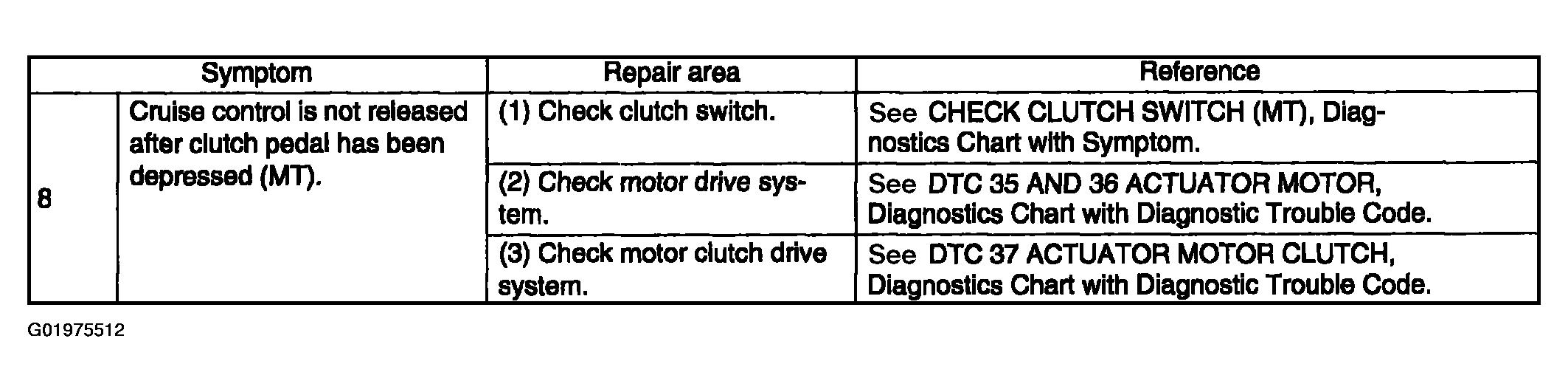

Fig 2: Diagnostics Chart With Symptom (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
