Cruise Control System - Diagnostics
>>
Diagnostics Chart With Symptom
>>
Check Cruise Control Command Switch
>>
Trouble Symptom:
Trouble Symptom:
Cruise control cannot be set. (Cancelled immediately.)

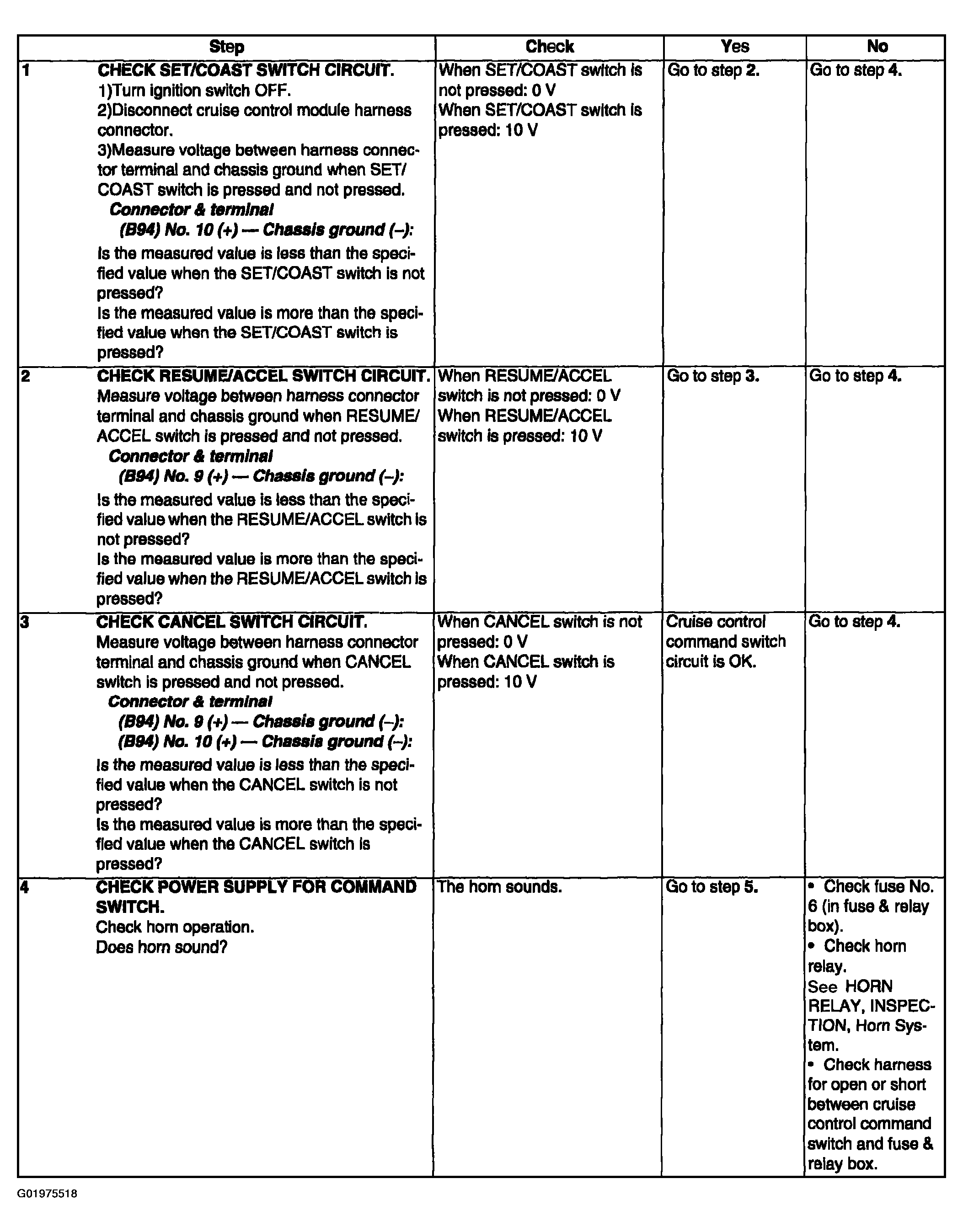

Fig 1: Checking Cruise Control Command Switch - Diagnostic Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

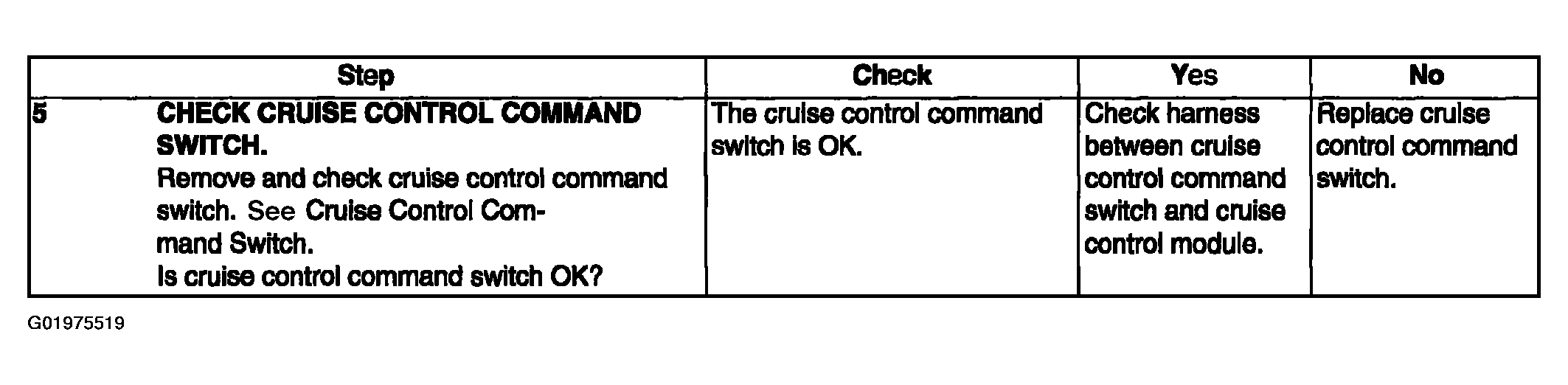

Fig 2: Checking Cruise Control Command Switch - Diagnostic Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
