Basic Diagnostic Procedure: Procedure

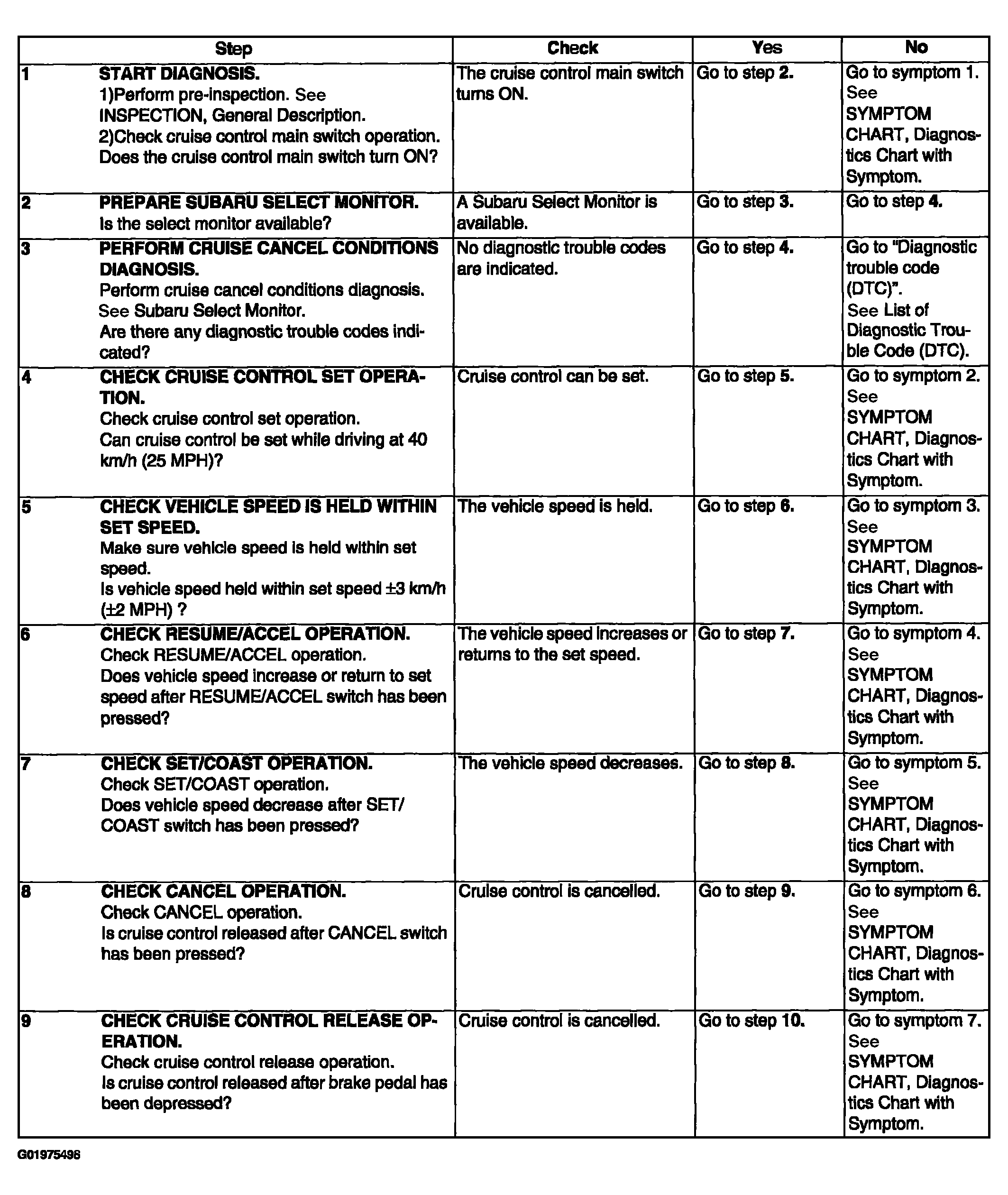

Fig 1: Basic Diagnostic Procedure Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

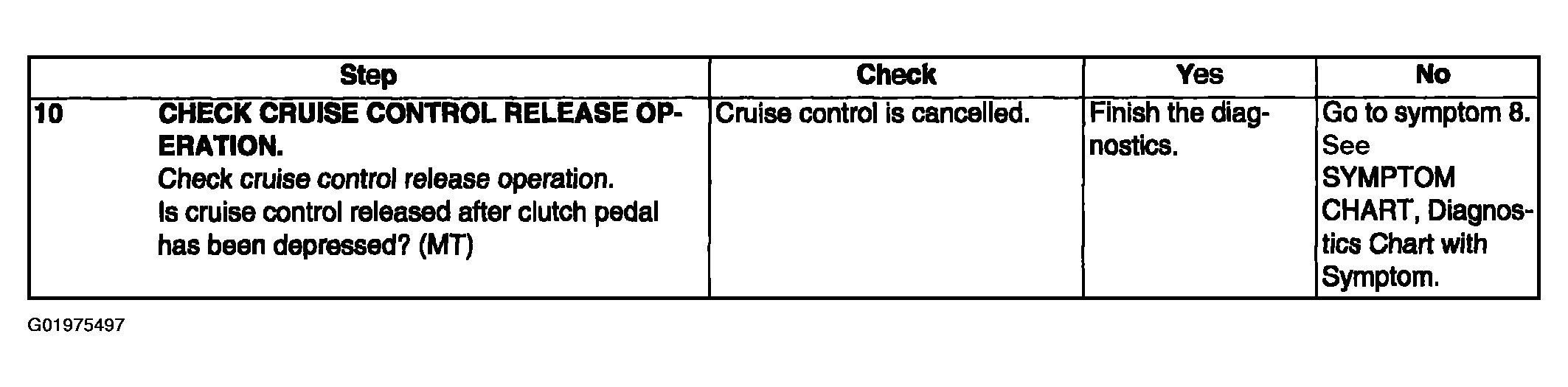

Fig 2: Basic Diagnostic Procedure Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
