Home >> Subaru >> 2003 >> Impreza RS, Automatic >> Repair and Diagnosis (Single Page) >> Brakes >> Traction Control >> Anti-Lock Brake System (Diagnostics) >> Control Module I/O Signals >> Schematic

Control Module I/O Signals: Schematic

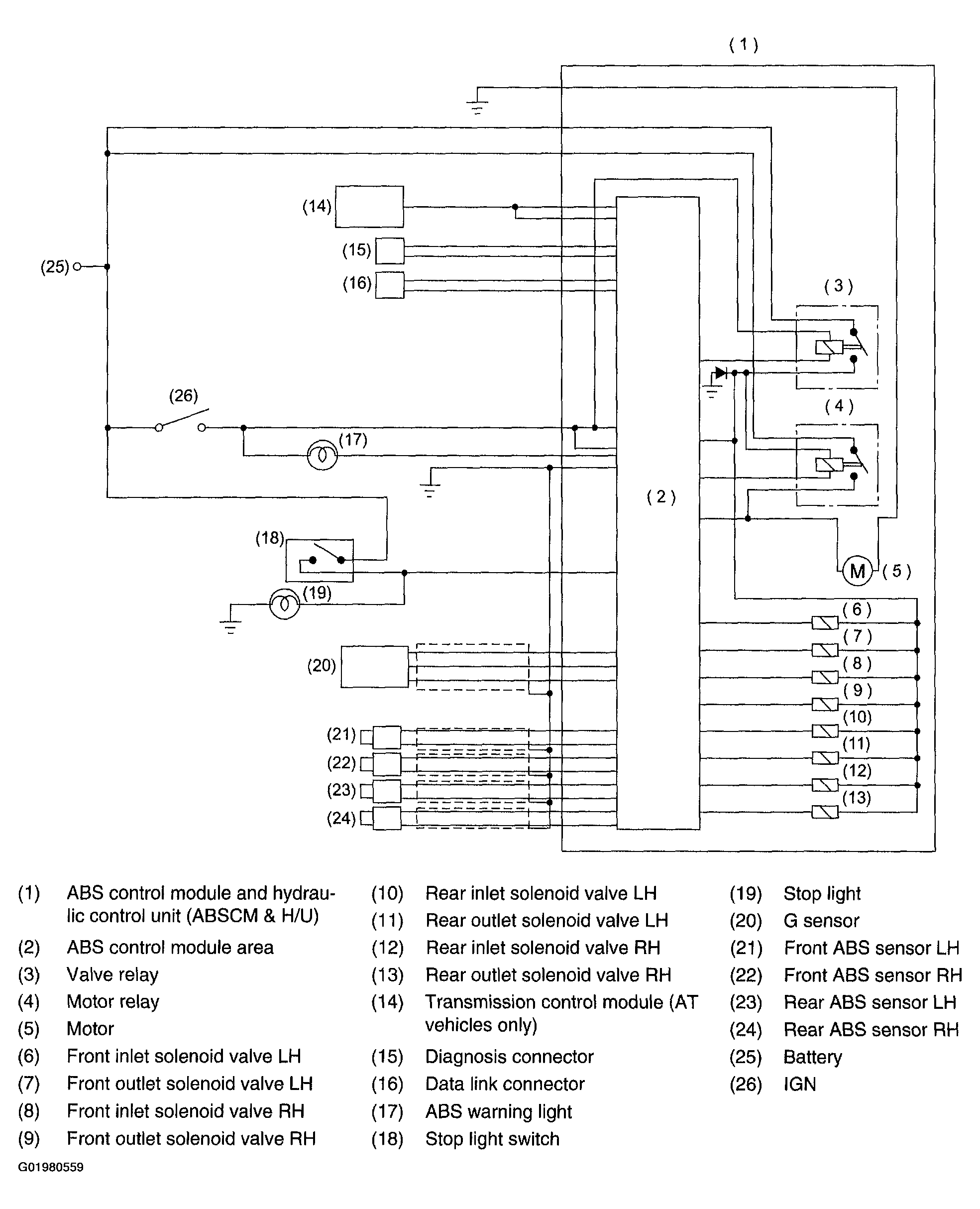

Fig 1: ABS Schematic Diagram
G01980559Courtesy of SUBARU OF AMERICA, INC.
