Security Control Module: Removal

  1. Disconnect the ground terminal from battery.
  2. Remove the console cover.

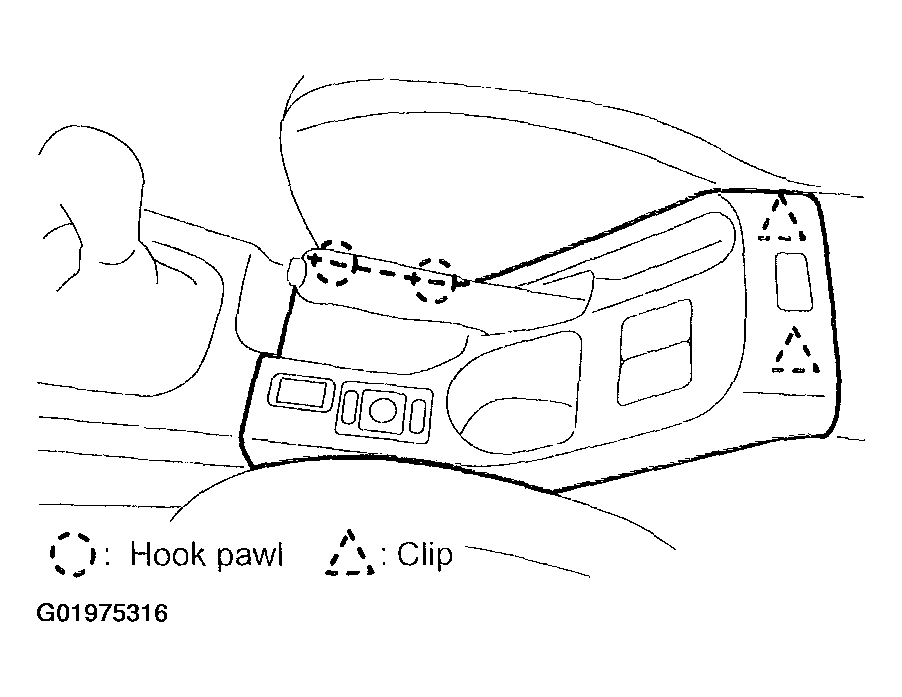

    Fig 1: Removing Console Cover
    G01975316Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector from the security control module.
  4. Remove bolt (A) and loosen bolt (B).
    NOTE: Loosen bolt (B) without completely removing it.

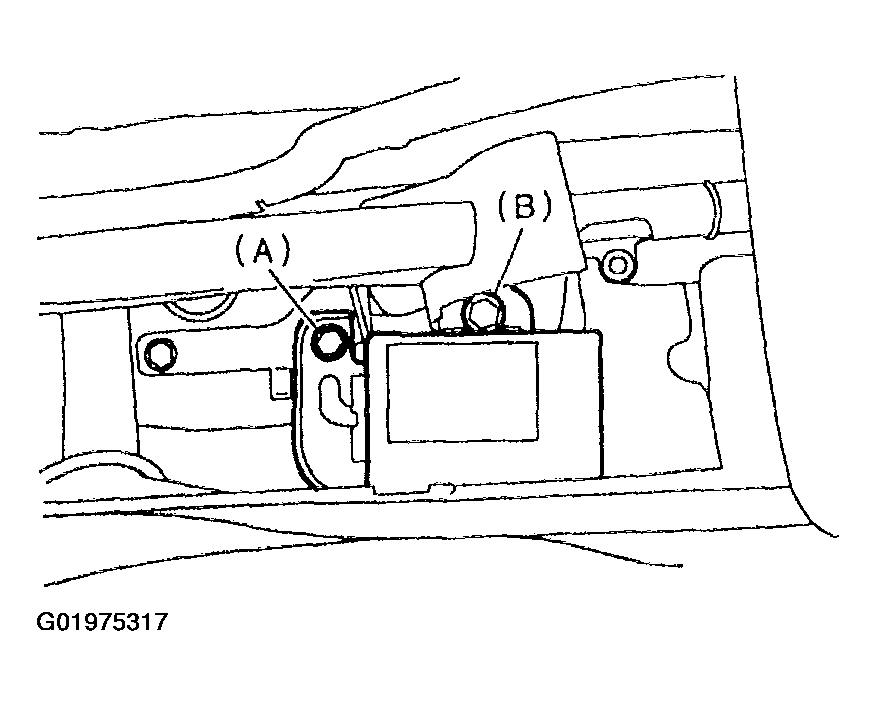

    Fig 2: Removing Security Control Module
    G01975317Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the security control module.
